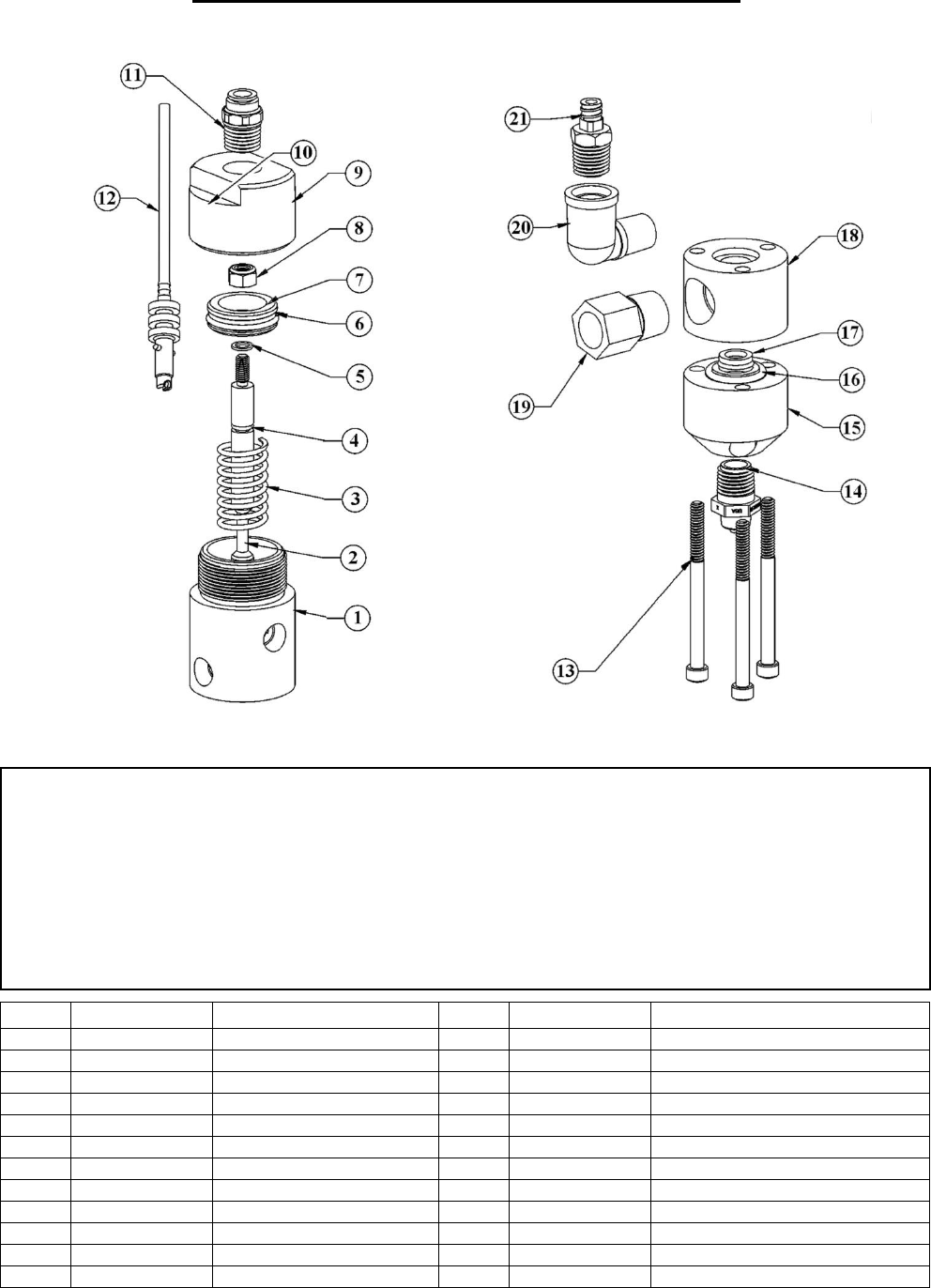

TS941 Series High Pressure Spool Valve
Item
Part Number
Description
Item
Part Number
Description
1
934-000-001
Cylinder For TS941
12
A0100268
Air Hose & Connector Assembly
1*
934A-000-001
Cylinder For TS941A
13
TSD1103-323
Valve Assembly Screw
2
934-000-005
Spool Shaft
14
TSD931-7
Tip Adaptor ¼'' NPT
3
934-000-006
Spring
15
941-000-002
Outlet Block (SS) For TS941
4
TSD1400-008B
Spool Shaft O-Ring, Viton
15*
941A-000-002
Outlet Block (SS) For TS941A
5
TSD1145-1
Fiber Washer
16
TSD1400-115C
Chamber O-Ring, EPR
6
TSD1399-2
Piston U-Cup Seal
17
TSD400-69
U-Cup Seal
7
934-000-004
Piston
18
941-000-001
Material Inlet Block (SS) For TS941
8
TSD1116-4
Lock Nut
18*
941A-000-001
Material Inlet Block (SS) For TS941A
9
927-000-007
End Cap
19
TSD912-15
Reducer, ⅜'' NPT X ¼'' NPT
10
TSD1400-025A
Cap O-Ring, Buna
20
TSD918-3
Elbow, ¼-18 NPT X ¼-18 NPT
11
TSD1002-26
Air Fitting, ¼'' Tube X ¼'' NPT
21
TSD931-15
¼'' NPT X Female Luer Lock Fitting
Seal Repair Kit = 941-SEALKIT
Includes 1 x 4, 5, 6, 10, 2 x 16 and 2 x 17
Valve Repair Kit = 941-VALVEKIT
Includes 1 x 2, 4, 5, 6, 10, 2 x 16 and 2 x 17
Lubrication: All O-Rings & seals must be lubricated with Parker-O-Lube, or equivalent, with the exception
of the two TSD400-69 seals, which must remain dry. Only item 4 requires Bimba HT-99, or equivalent.

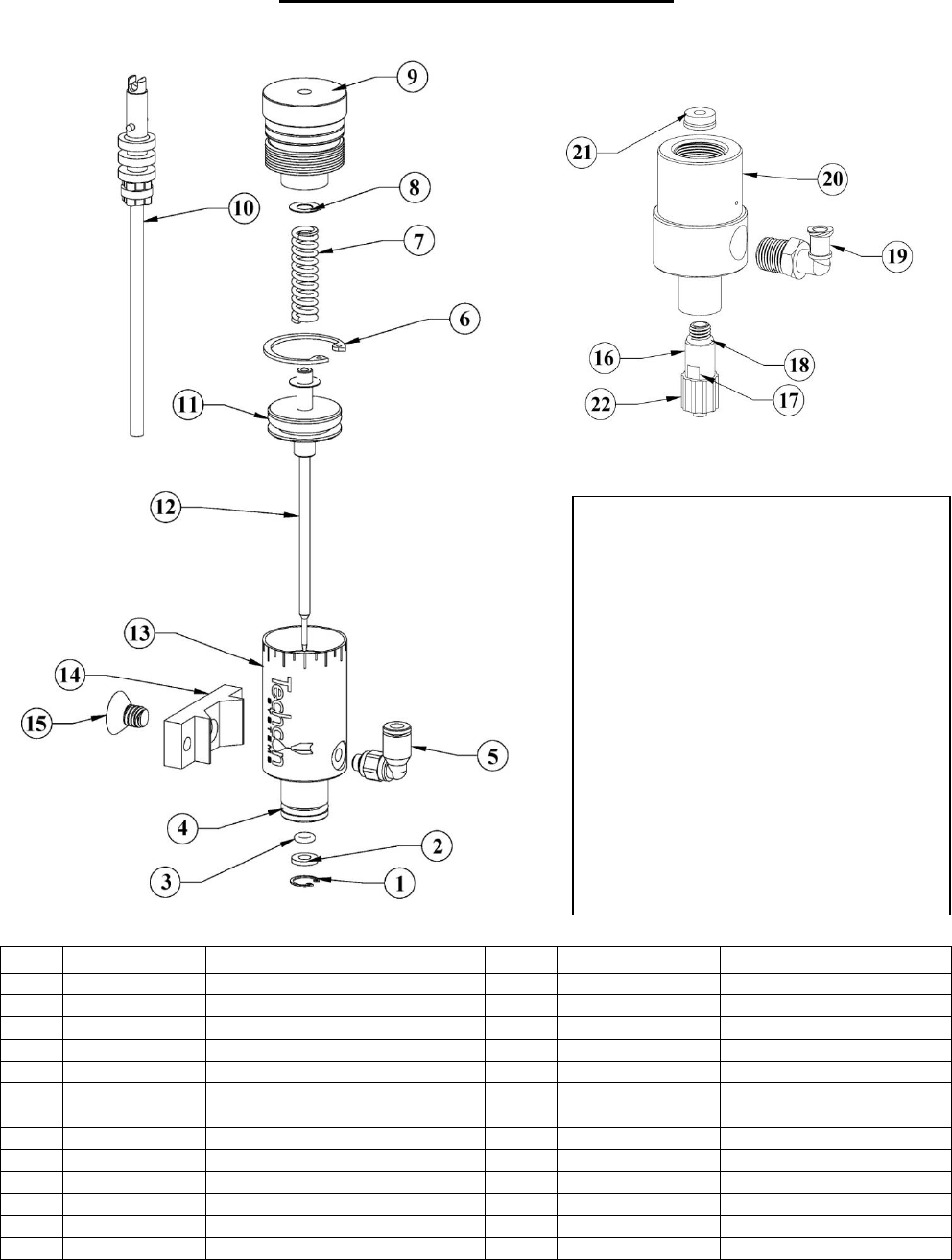

TS5420 Series Needle Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
13
5520-000-001
Air Cylinder, For TS5420
2
TSD1109-45
Nylon Washer
13*
T1000600
Air Cylinder, For TS5420SS
3
TD1400-006A
O-Ring, Buna
14
918-000-048
Mounting Bracket
4
TSD1400-013A
O-Ring, Buna
15
2800-0634
Mounting Screw
5
TSD1003-20
Air Fitting, 4mm, Elbow
16
5420-000-007
Luer Adaptor, Inc. Collar/Seat
6
TSD1120-15
Retaining Ring, Large
17
T1000598
Nozzle Seat
7
TSD1150-34
Spring
18
TSD1400-008A
Luer Adaptor O-Ring, Buna
8
TSD1109-43
Mylar Washer
19
TSD931-75
Luer Lock Adaptor, Elbow
9
5520-000-007
End Cap, For TS5420
20
5420-000-002
Body, For TS5420
9*
T1000599
End Cap, For TS5420SS
20*
5420-000-008
Body, For TS5420SS
10
A0100478
Air Hose/Connector Assembly, 4mm
21
TSD400-70
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
22
TSD931-44
Luer Collar
12
5520-000-010
Needle/Piston Assembly
Seal Repair Kit = 5420-SEALKIT
Includes 1 x 3, 4, 11, 18, 19, 21 and 22
Valve Repair Kit = 5420-VALVKIT
Includes 1 x 2, 3, 4, 6, 11, 12, 16, 18, 19,
21 and 2 x 8
U-Seal Insertion Tool = 5420-SIT
Nozzle Seat Tool = TSD1113-28
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-70, which must remain dry.

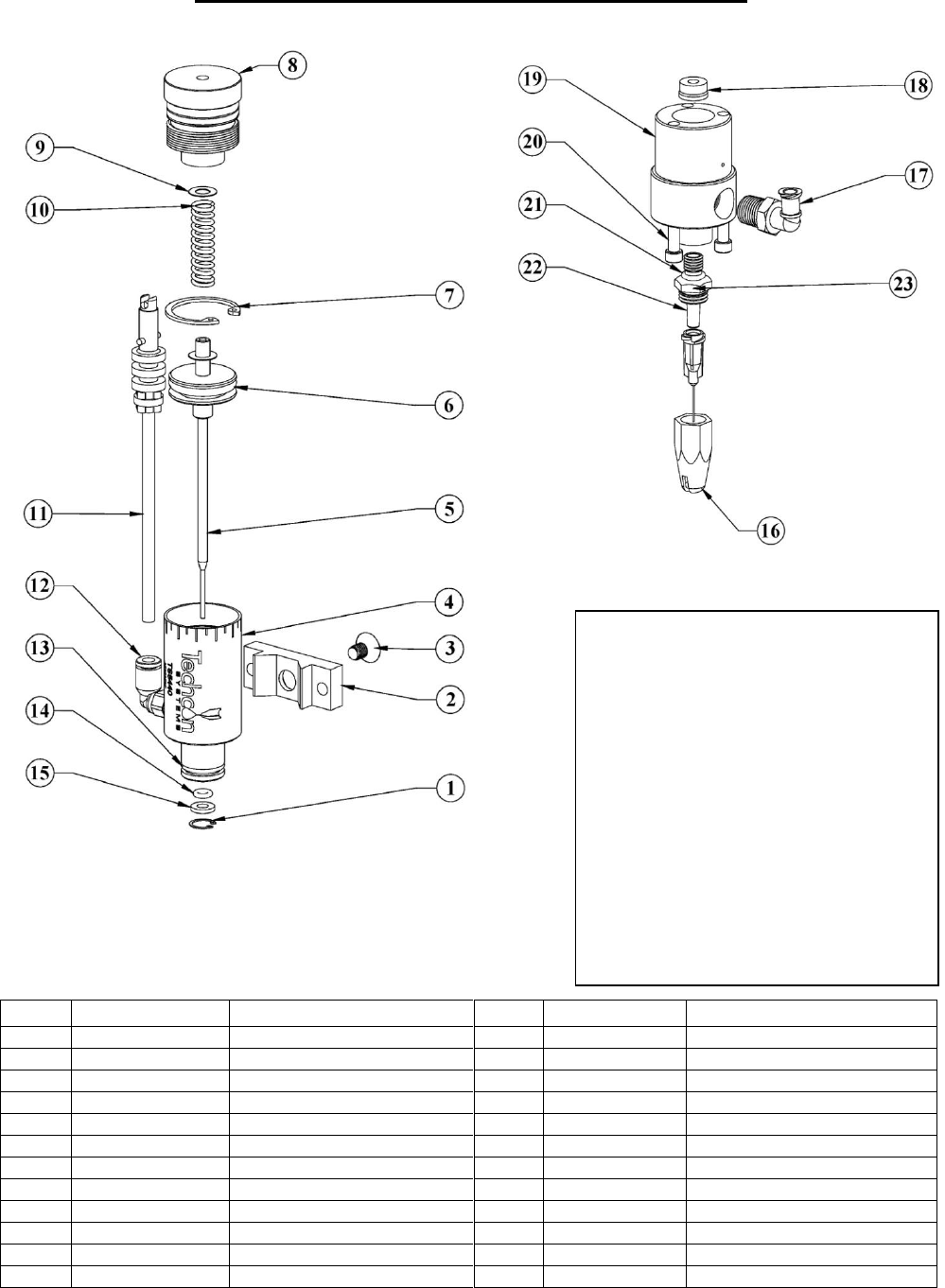

TS5440 Series Micro Shot Needle Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
12
TSD1003-20
Air Fitting, 4mm, Elbow
2
918-000-048
Mounting Bracket
13
TSD1400-013A
O-Ring, Buna
3
TSD1106-41
Mounting Screw
14
TSD1400-006A
O-Ring, Buna
4
5440-000-008
Air Cylinder, For TS5440
15
TSD1109-45
Nylon Washer
4*
5440-000-008SS
Air Cylinder, For TS5440-SS
16
5440-000-004
Tip Cap, Full Block
5
5440-000-007S
Needle/Piston Assembly
17
TSD931-75
Luer Lock Adaptor, Elbow
6
TSD1400-208A
Piston O-Ring, Buna
18
TSD400-86
U-Cup Seal
7
TSD1120-15
Retaining Ring, Large
19
5440-000-001
Valve Body (SS)
8
5520-000-007
End Cap
20
TSD1103-398
Body Screw
9
TSD1109-43
Mylar Washer
21
TSD1400-008A
O-Ring, Buna
10
TSD1150-52
Spring
22
5440-000-005
Luer Taper Adaptor
11
A0100478
Air Hose/Connector Assy, 4mm
23
5440-000-006
Luer Adaptor Teflon® Seat
Seal Repair Kit = 5440-SEALKIT
Includes 1 x 6, 13, 14, 15, 17, 18, 21
and 2 x 9
Valve Repair Kit = 5440-VALVEKIT
Includes 1 x 1, 5, 6, 7, 13, 14, 15, 17,
18, 21, 22, 2 x 9 and 3 x 20
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must
be lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-86, which must remain dry.
