TS1201 Pinch Tube Pen
Item
Part Number
Description
3*
1201-000-004PK
Pinch Tube, Clear PE, Male to Female, 0.1'' (2.54mm) ID
3*
1201-000-004BPK
Pinch Tube, Black PE, Male to Female, 0.1'' (2.54mm) ID
3*
1201-000-006PK
Pinch Tube, Clear PE, Male to Female, 0.07'' (1.78mm) ID
3*
1201-006-000PK
Pinch Tube, Clear PU, Male to Female, 0.125'' (3.18mm) ID
Item
Part Number
Description
Item
Part Number
Description
1
1201-000-002
Trigger, Handle
5
TSD1123-15
Flow Adjustment Screw
2
TSD1150-7
Spring
6
1201-000-001
Body
3
SEE CHART
Pinch Tube
7
1201-000-003
Pin
4
1212-000-005
Pinch Cushion
Lubrication: No lubrication required on valve.
TS1212 Pinch Tube Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD922-19
Barb Fitting
7
1212-000-002
Flange
2
1212-000-003
Cylinder Cap
8
1212-002-000
Adjustment Knob Assy
3
1212-000-007
Gasket
9
1212-000-004
Shut Off Piston
4
1212-000-005
Pinch Cushion
10
1212-000-001
Body
5
SEE CHART
Pinch Tube
11
TSD1399-1
U-Cup Seal
6
3300-0336
Spring
12
1212-003-000
Piston Assembly
Item
Part Number
Description
5*
1212-004-002PK
Pinch Tube, Clear PE, Male to Female, 0.1'' (2.54mm) ID
5*
1212-004-002BPK
Pinch Tube, Black PE, Male to Female, 0.1'' (2.54mm) ID
5*
1212-004-000PK
Pinch Tube, Clear PE, Male to Female, 0.07'' (1.78mm) ID
5*
1212-004-100PK
Pinch Tube, Clear PU, Male to Female, 0.125'' (3.18mm) ID
5*
1212-004-100BPK
Pinch Tube, Black PU, Male to Female, 0.125'' (3.18mm) ID
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent.

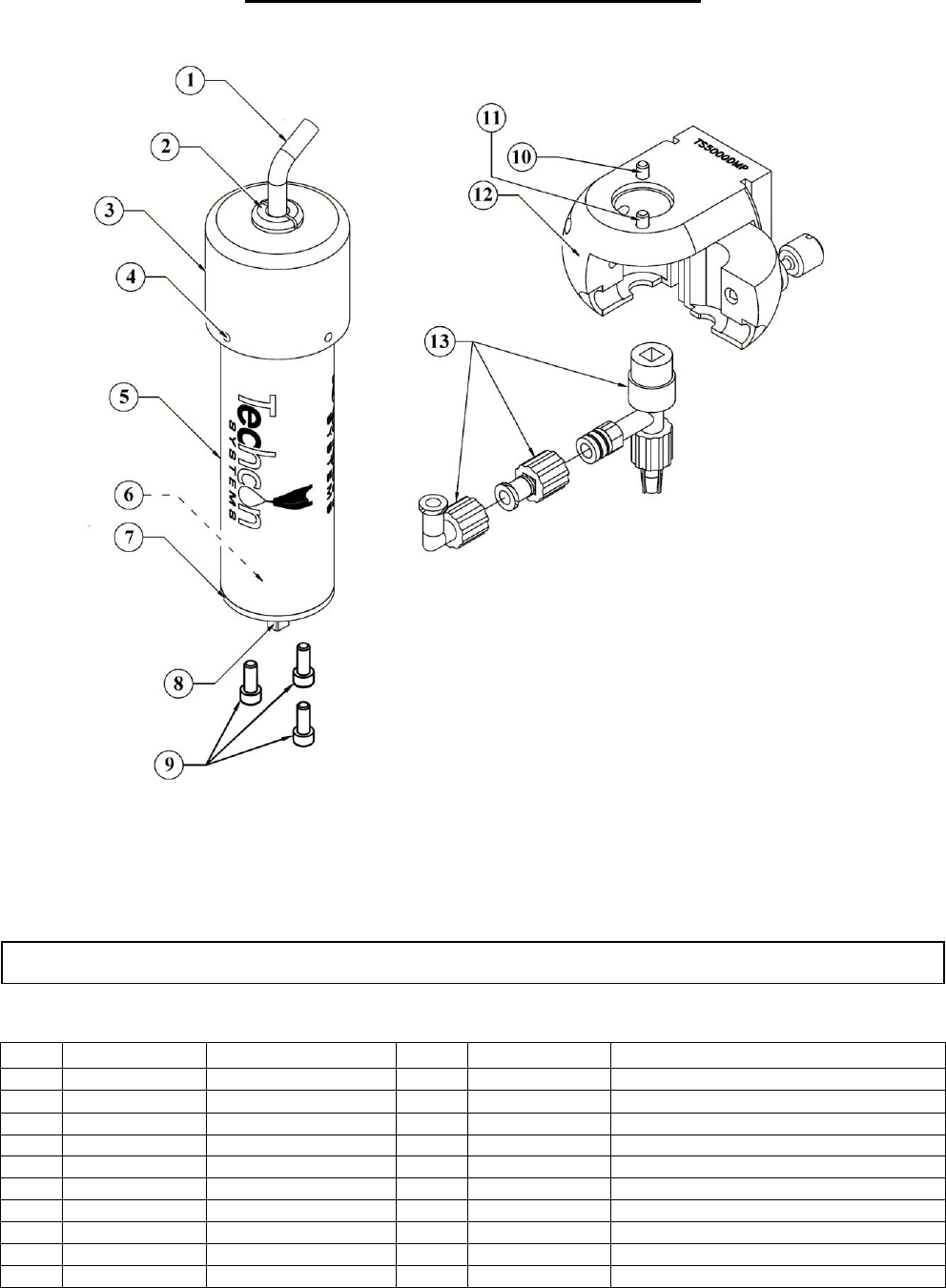

TS5000DMP Series Rotary Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1415-12
Cable
11
TSD1103-10
Body Screw, Short
2
TSD1401-7
Bushing
12
A0100167
Body For TS5000DMP
3
5000-000-171
Sleeve Cap
12*
A0100184
Body For TS5000DMPL
4
TSD1103-334
Cap Screw
13
DMP6-10
6 Pitch DMP Assy, Fixed Red Collar
5
5000-000-346
Motor Sleeve
13*
DMP6R-10
6 Pitch DMP Assy, Rotating Red Collar
6
TSD1412-22
Motor
13*
DMP8-10
8 Pitch DMP Assy, Fixed Black Collar
7
T1000295
Motor Mounting Plate
13*
DMP8R-10
8 Pitch DMP Assy, Rotating Black Collar
8
2200-000-011
Square Drive
13*
DMP16-10
16 Pitch DMP Assy, Fixed Blue Collar
9
TSD1103-330
Mounting Plate Screw
13*
DMP16R-10
16 Pitch DMP Assy, Rotating Blue Collar
10
TSD1103-14
Body Screw, Long
Lubrication: The Viton® feed path o-ring is lubricated with Parker -O-Lube.
