TS1212 Pinch Tube Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD922-19
Barb Fitting
7
1212-000-002
Flange
2
1212-000-003
Cylinder Cap
8
1212-002-000
Adjustment Knob Assy
3
1212-000-007
Gasket
9
1212-000-004
Shut Off Piston
4
1212-000-005
Pinch Cushion
10
1212-000-001
Body
5
SEE CHART
Pinch Tube
11
TSD1399-1
U-Cup Seal
6
3300-0336
Spring
12
1212-003-000
Piston Assembly
Item
Part Number
Description
5*
1212-004-002PK
Pinch Tube, Clear PE, Male to Female, 0.1'' (2.54mm) ID
5*
1212-004-002BPK
Pinch Tube, Black PE, Male to Female, 0.1'' (2.54mm) ID
5*
1212-004-000PK
Pinch Tube, Clear PE, Male to Female, 0.07'' (1.78mm) ID
5*
1212-004-100PK
Pinch Tube, Clear PU, Male to Female, 0.125'' (3.18mm) ID
5*
1212-004-100BPK
Pinch Tube, Black PU, Male to Female, 0.125'' (3.18mm) ID
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent.
TS5000DMP Series Rotary Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1415-12
Cable
11
TSD1103-10
Body Screw, Short
2
TSD1401-7
Bushing
12
A0100167
Body For TS5000DMP
3
5000-000-171
Sleeve Cap
12*
A0100184
Body For TS5000DMPL
4
TSD1103-334
Cap Screw
13
DMP6-10
6 Pitch DMP Assy, Fixed Red Collar
5
5000-000-346
Motor Sleeve
13*
DMP6R-10
6 Pitch DMP Assy, Rotating Red Collar
6
TSD1412-22
Motor
13*
DMP8-10
8 Pitch DMP Assy, Fixed Black Collar
7
T1000295
Motor Mounting Plate
13*
DMP8R-10
8 Pitch DMP Assy, Rotating Black Collar
8
2200-000-011
Square Drive
13*
DMP16-10
16 Pitch DMP Assy, Fixed Blue Collar
9
TSD1103-330
Mounting Plate Screw
13*
DMP16R-10
16 Pitch DMP Assy, Rotating Blue Collar
10
TSD1103-14
Body Screw, Long
Lubrication: The Viton® feed path o-ring is lubricated with Parker -O-Lube.

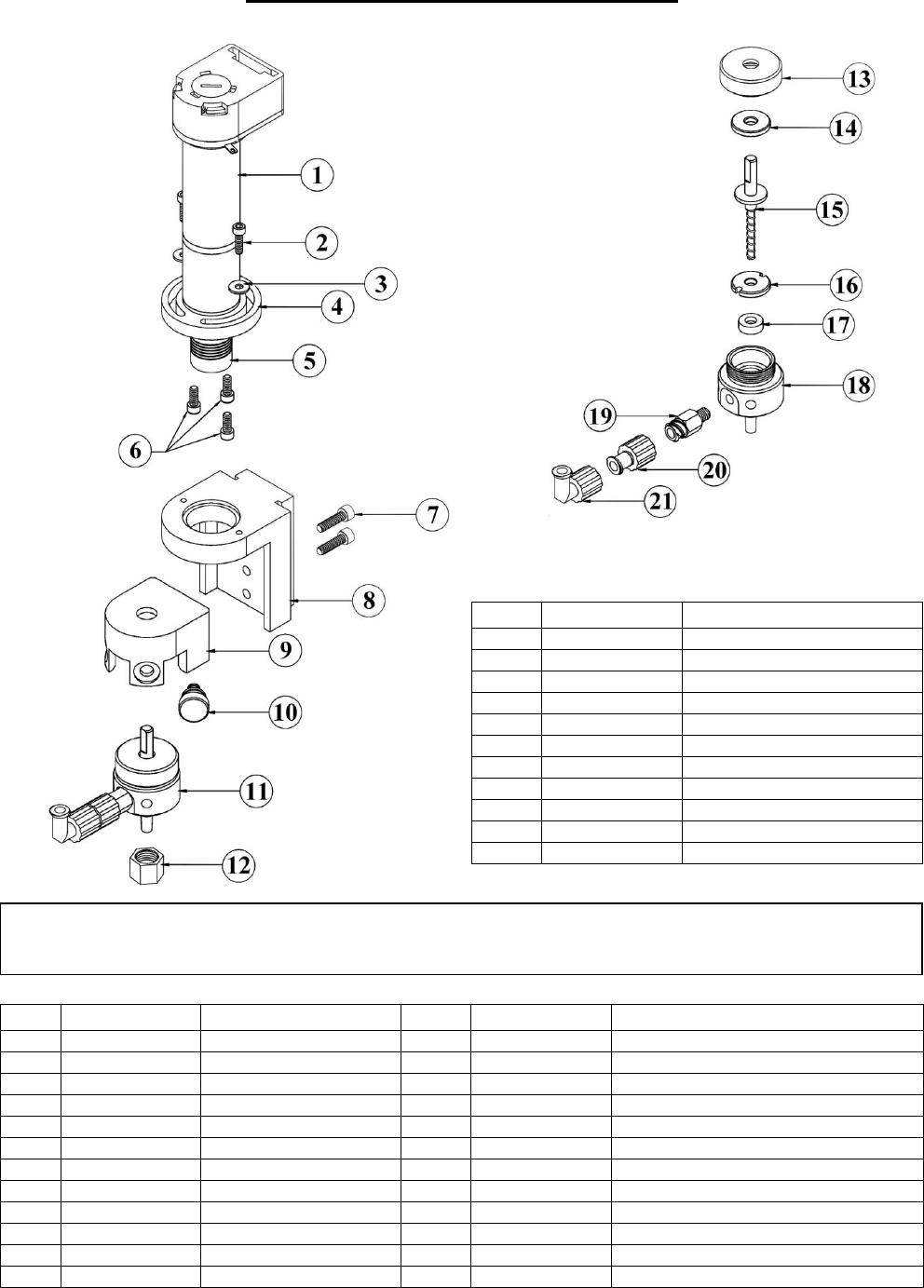

TS7000IMP Series Rotary Valve
Item
Part Number
Description
11*
7090-9140
Cartridge Assy, 32P
11*
7090-9040
Cartridge Assy, 16P
11*
7090-9030
Cartridge Assy, 8P
11*
7090-9050
Cartridge Assy, 8P HO
12*
7090-0030
Locking Cap, TE and TT Tip (STD)
12*
7090-0170
Locking Cap, TS-SS Tip
12*
5440-000-004
Locking Cap, Full Block, TE Tip
15*
7090-0240
Feed Screw, 32P
15*
7090-0110
Feed Screw, 16P
15*
7090-0100
Feed Screw, 8P
15*
7090-0120
Feed Screw, 8P HO
Item
Part Number
Description
Item
Part Number
Description
1
TSD1412-22
Motor, 6W, No Encoder
12
SEE CHART
Tip Cap
1*
TSD1412-31
Motor 6W, With Encoder
13
7090-0090
Cover
2
2800-0423
Mounting Plate Screw
14
7090-0130
Top Thrust Washer
3
TSD1109-1
Mounting Plate Washer
15
SEE CHART
Feed Screw
4
7090-0060
Motor Mounting Plate
16
7090-0140
Bottom Thrust Washer
5
7090-0050
Coupling
17
3300-0353
U-Cup Seal
6
TSD1103-330
Mounting Plate Screw
18
7090-0070
Cartridge Body, 32P, 16P and 8P STD
7
2800-0213
Main Housing Screw
18*
7090-0080
Cartridge Body, 8P High Output
8
7090-0010
Main Housing
19
TSD931-63
Luer Lock Adaptor, Stainless Steel
9
7090-0020
Cartridge Housing
20
TSD931-82
Luer Lock Adaptor, Nylon
10
7090-0040
Thumb Screw
21
TSD931-81
Luer Lock Elbow Adaptor, Nylon
11
SEE CHART
Cartridge Assy
Lubrication: No lubrication required on valve but conditioning cream (7105XCON = 10cc, 7305XCON = 30cc
or TS60C-CON = 177cc) should be used, after repair, to prime the valve before production use.
