TS5540 Series Spray Valve
Item
Part Number
Description
17*
T1000590
Round Cap 0.014''
17*
T1000569
Round Cap 0.028''
17*
T1000585
Round Cap 0.046''
17*
A0100495
Fan Cap 0.014''
17*
A0100494
Fan Cap 0.028''
17*
A0100493
Fan Cap 0.046''
25*
T1000570
Nozzle 0.014''
25*
T1000589
Nozzle 0.028''
25*
T1000584
Nozzle 0.046''
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
14
918-000-048
Mounting Bracket
2
TSD1109-45
Nylon Washer
15
2800-0634
Mounting Screw
3
TSD1400-006A
O-Ring, Buna
16
T1000583
Locking Ring
4
TSD1400-013B
O-Ring, Viton®
17
SEE CHART
Air Cap
5
TSD1003-20
Air Fitting, 4mm, Elbow
18
T1000598
Nozzle Seat
6
A0100478
Air Hose/Connector Assy, 4mm
19
T1000574
Diffuser Washer
7
TSD1109-43
Mylar Washer
20
T1000579
Body
8
T1000599
End Cap
21
TSD1003-16
Compression Fitting
9
TSD1150-34
Spring
22
TSD400-85
U-Cup Seal
10
TSD1120-15
Retaining Ring, Large
23
TSD1003-20
Air Fitting, 4mm, Elbow
11
TSD1400-208A
Piston O-Ring, Buna
24
TSD1400-495B
O-Ring, Viton®
12
A0100487
Needle/Piston Assembly
25
SEE CHART
Nozzle
13
T1000600
Air cylinder
TSD1113-28
Seat Removal Tool – NOT SHOWN
O-Ring Kit = 5540-ORINGKIT
Includes 1 x 3, 4, 11 and 24
Retaining Ring Kit = 5540-SRKIT
Includes 1 x 1, 2, 2 x 7 and 10
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
TSD400-85 and TSD1400-495B, which must remain dry. No lubrication required for nozzle seat/seal either.
Nozzle and Cap Kits
RNC014 (includes T1000570, T1000590, T1000598 and TSD1400-495B)
RNC028 (includes T1000589, T1000569, T1000598 and TSD1400-495B)
RNC046 (includes T1000584, T1000585, T1000598 and TSD1400-495B)
FNC014 (includes T1000570, A0100495, T1000598 and TSD1400-495B)
FNC028 (includes T1000589, A0100494, T1000598 and TSD1400-495B)
FNC046 (includes T1000584, A0100493, T1000598 and TSD1400-495B)

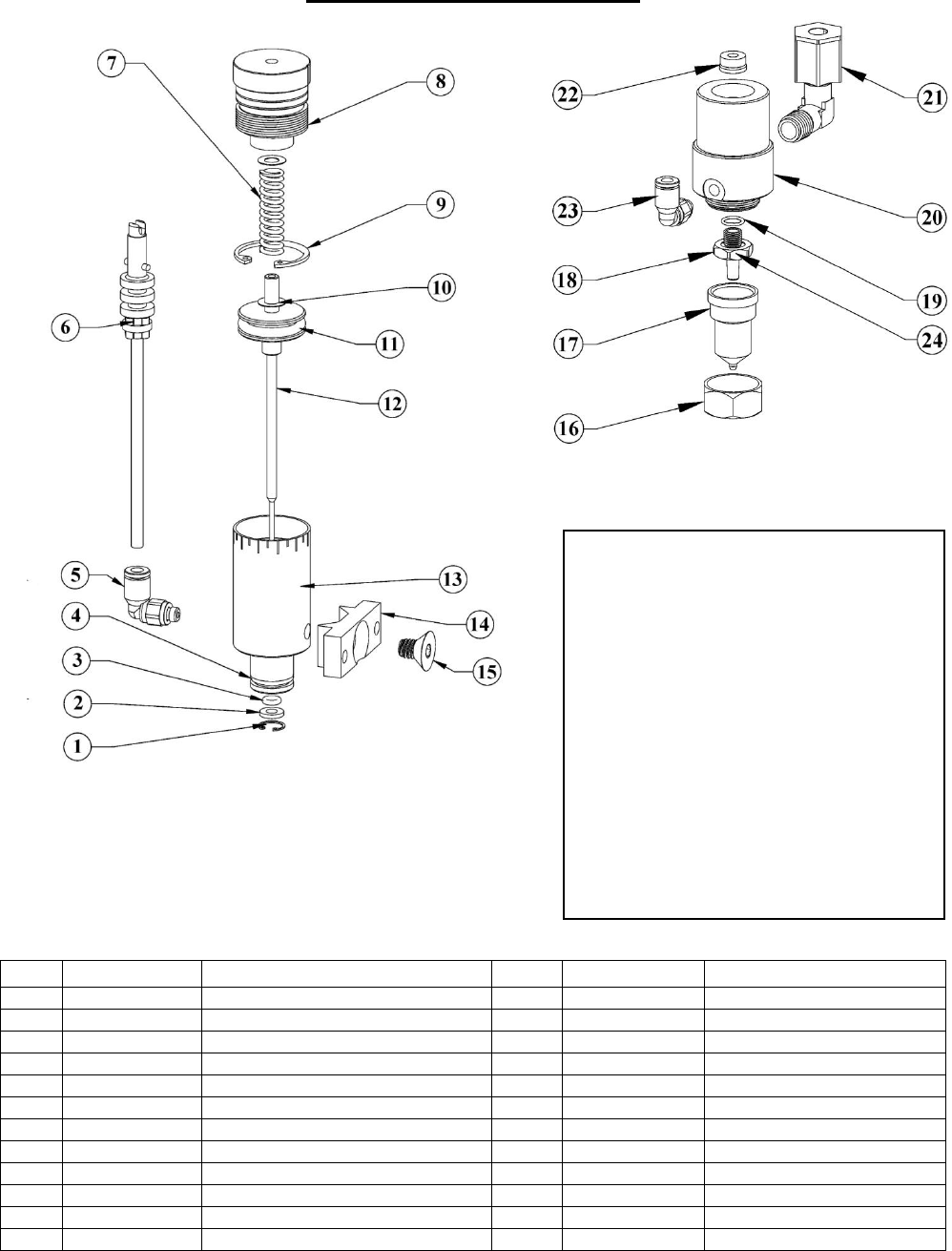

TS5540-MS Spray Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
13
T1000600
Air cylinder
2
TSD1109-45
Nylon Washer
14
918-000-048
Mounting Bracket
3
TSD1400-006A
O-Ring, Buna
15
2800-0634
Mounting Screw
4
TSD1400-013B
O-Ring, Viton®
16
T1000583
Locking Ring
5
TSD1003-20
Air Fitting, 4mm, Elbow
17
7509-0010
Air Cap
6
A0100478
Air Hose/Connector Assy, 4mm
18
7509-9010
Luer Nozzle
7
TSD1150-34
Spring
19
TSD1400-495B
O-Ring, Viton®
8
T1000599
End Cap
20
T1000579
Body
9
TSD1120-15
Retaining Ring, Large
21
TSD1003-16
Compression Fitting
10
TSD1109-43
Mylar Washer
22
TSD400-85
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
23
TSD1003-20
Air Fitting, 4mm, Elbow
12
7509-9000
Needle/Piston Assembly
24
5440-000-006
Luer Adaptor Teflon® Seat
O-Ring Kit = 5540-ORINGKIT
Includes 1 x 3, 4, 11 and 19
Retaining Ring Kit = 5540-SRKIT
Includes 1 x 1, 2, 9 and 2 x 10
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-85, which must remain dry. No
lubrication required for nozzle seat/seal
either.
TS5520 Series Spray Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
12
5520-000-010
Needle/Piston Assembly
2
TSD1109-45
Nylon Washer
13
5520-000-001
Air Cylinder
3
TSD1400-006A
O-Ring, Buna
14
918-000-048
Mounting Bracket
4
TSD1400-013A
O-Ring, Buna
15
2800-0634
Mounting Screw
5
TSD1003-20
Air Fitting, 4mm, Elbow
16
5520-000-018
Spray Cone Cap
6
A0100478
Air Hose/Connector Assy, 4mm
17
5520-000-020
Nozzle, Inc. Seat
7
TSD1150-34
Spring
18
T1000598
Nozzle Seat
8
5520-000-007
End Cap
19
TSD1400-008A
Nozzle Adaptor O-Ring, Buna
9
TSD1120-15
Retaining Ring, Large
20
5520-000-002
Body
10
TSD1109-43
Mylar Washer
21
TSD400-70
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
22
TSD1003-16
Compression Fitting
Seal Repair Kit = 5520-SEALKIT
Includes 1 x 3, 4, 11, 19, 21 and 1 x 22 -
TSD931-75 - (TSD1003-16 Shown)
Valve Repair Kit = 5520-VALVEKIT
Includes 1 x 2, 3, 4, 9, 11, 12, 17, 19, 21,
22 - TSD931-75 - (TSD1003-16 Shown)
and 2 x 10
U-Seal Insertion Tool = 5420-SIT
Nozzle Seat Tool = TSD1113-28
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-70, which must remain dry.
