TS5420 Series Needle Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
13
5520-000-001
Air Cylinder, For TS5420
2
TSD1109-45
Nylon Washer
13*
T1000600
Air Cylinder, For TS5420SS
3
TD1400-006A
O-Ring, Buna
14
918-000-048
Mounting Bracket
4
TSD1400-013A
O-Ring, Buna
15
2800-0634
Mounting Screw
5
TSD1003-20
Air Fitting, 4mm, Elbow
16
5420-000-007
Luer Adaptor, Inc. Collar/Seat
6
TSD1120-15
Retaining Ring, Large
17
T1000598
Nozzle Seat
7
TSD1150-34
Spring
18
TSD1400-008A
Luer Adaptor O-Ring, Buna
8
TSD1109-43
Mylar Washer
19
TSD931-75
Luer Lock Adaptor, Elbow
9
5520-000-007
End Cap, For TS5420
20
5420-000-002
Body, For TS5420
9*
T1000599
End Cap, For TS5420SS
20*
5420-000-008
Body, For TS5420SS
10
A0100478
Air Hose/Connector Assembly, 4mm
21
TSD400-70
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
22
TSD931-44
Luer Collar
12
5520-000-010
Needle/Piston Assembly
Seal Repair Kit = 5420-SEALKIT
Includes 1 x 3, 4, 11, 18, 19, 21 and 22
Valve Repair Kit = 5420-VALVKIT
Includes 1 x 2, 3, 4, 6, 11, 12, 16, 18, 19,
21 and 2 x 8
U-Seal Insertion Tool = 5420-SIT
Nozzle Seat Tool = TSD1113-28
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-70, which must remain dry.
TS5440 Series Micro Shot Needle Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
12
TSD1003-20
Air Fitting, 4mm, Elbow
2
918-000-048
Mounting Bracket
13
TSD1400-013A
O-Ring, Buna
3
TSD1106-41
Mounting Screw
14
TSD1400-006A
O-Ring, Buna
4
5440-000-008
Air Cylinder, For TS5440
15
TSD1109-45
Nylon Washer
4*
5440-000-008SS
Air Cylinder, For TS5440-SS
16
5440-000-004
Tip Cap, Full Block
5
5440-000-007S
Needle/Piston Assembly
17
TSD931-75
Luer Lock Adaptor, Elbow
6
TSD1400-208A
Piston O-Ring, Buna
18
TSD400-86
U-Cup Seal
7
TSD1120-15
Retaining Ring, Large
19
5440-000-001
Valve Body (SS)
8
5520-000-007
End Cap
20
TSD1103-398
Body Screw
9
TSD1109-43
Mylar Washer
21
TSD1400-008A
O-Ring, Buna
10
TSD1150-52
Spring
22
5440-000-005
Luer Taper Adaptor
11
A0100478
Air Hose/Connector Assy, 4mm
23
5440-000-006
Luer Adaptor Teflon® Seat
Seal Repair Kit = 5440-SEALKIT
Includes 1 x 6, 13, 14, 15, 17, 18, 21
and 2 x 9
Valve Repair Kit = 5440-VALVEKIT
Includes 1 x 1, 5, 6, 7, 13, 14, 15, 17,
18, 21, 22, 2 x 9 and 3 x 20
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must
be lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-86, which must remain dry.

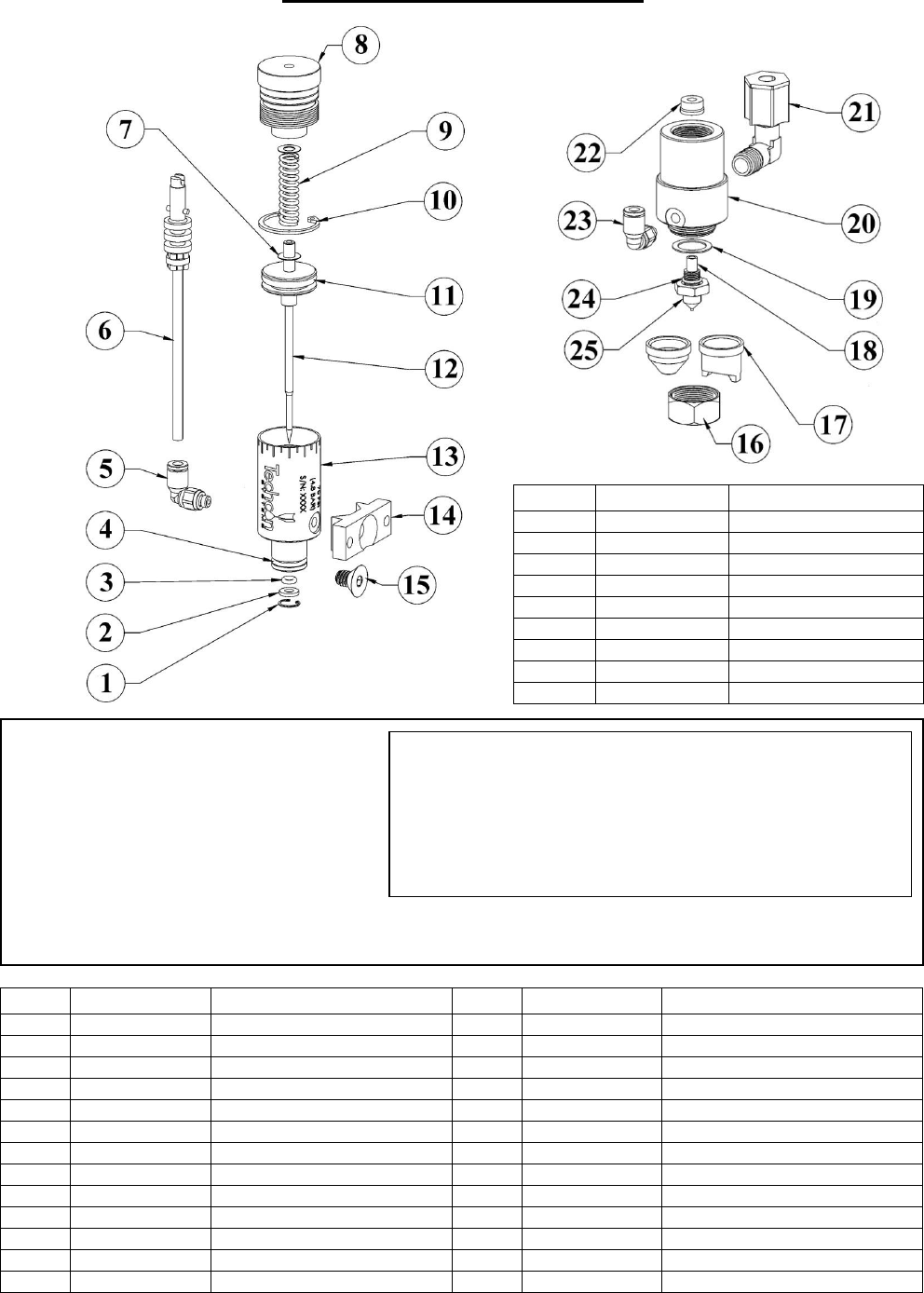

TS5540 Series Spray Valve
Item
Part Number
Description
17*
T1000590
Round Cap 0.014''
17*
T1000569
Round Cap 0.028''
17*
T1000585
Round Cap 0.046''
17*
A0100495
Fan Cap 0.014''
17*
A0100494
Fan Cap 0.028''
17*
A0100493
Fan Cap 0.046''
25*
T1000570
Nozzle 0.014''
25*
T1000589
Nozzle 0.028''
25*
T1000584
Nozzle 0.046''
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
14
918-000-048
Mounting Bracket
2
TSD1109-45
Nylon Washer
15
2800-0634
Mounting Screw
3
TSD1400-006A
O-Ring, Buna
16
T1000583
Locking Ring
4
TSD1400-013B
O-Ring, Viton®
17
SEE CHART
Air Cap
5
TSD1003-20
Air Fitting, 4mm, Elbow
18
T1000598
Nozzle Seat
6
A0100478
Air Hose/Connector Assy, 4mm
19
T1000574
Diffuser Washer
7
TSD1109-43
Mylar Washer
20
T1000579
Body
8
T1000599
End Cap
21
TSD1003-16
Compression Fitting
9
TSD1150-34
Spring
22
TSD400-85
U-Cup Seal
10
TSD1120-15
Retaining Ring, Large
23
TSD1003-20
Air Fitting, 4mm, Elbow
11
TSD1400-208A
Piston O-Ring, Buna
24
TSD1400-495B
O-Ring, Viton®
12
A0100487
Needle/Piston Assembly
25
SEE CHART
Nozzle
13
T1000600
Air cylinder
TSD1113-28
Seat Removal Tool – NOT SHOWN
O-Ring Kit = 5540-ORINGKIT
Includes 1 x 3, 4, 11 and 24
Retaining Ring Kit = 5540-SRKIT
Includes 1 x 1, 2, 2 x 7 and 10
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
TSD400-85 and TSD1400-495B, which must remain dry. No lubrication required for nozzle seat/seal either.
Nozzle and Cap Kits
RNC014 (includes T1000570, T1000590, T1000598 and TSD1400-495B)
RNC028 (includes T1000589, T1000569, T1000598 and TSD1400-495B)
RNC046 (includes T1000584, T1000585, T1000598 and TSD1400-495B)
FNC014 (includes T1000570, A0100495, T1000598 and TSD1400-495B)
FNC028 (includes T1000589, A0100494, T1000598 and TSD1400-495B)
FNC046 (includes T1000584, A0100493, T1000598 and TSD1400-495B)
