- - 4. RF12 AS,RF12AS(SP),RF 16AS,RF16AS( SP),RF24AS, RF24AS(SP)(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-69521 CLAMP_UNIT_08K 1
2 401-69543 CLAMP_BLOCK_ASSY_08K (1)
3 401-67216 GEAR_SH_08K (1)
4 SM-8030602-TP SCREWM3X0.5L=6 (1)
5 401-67218 CLAMP_MAIN_SH (1)
6 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
7 401-67265 CLAMP_SP (1)
8 401-69546 CLAMP_BLOCK_SUB_ASSY_08K (1)
9 401-67215 CLAMP_BLOCK (1)
10 401-67217 CLAMP_ROLLER (1)
11 401-67216 GEAR_SH_08K (1)
12 401-69544 CLAMP_LEVER_ASSY_08K (1)
13 401-67237 CLAMP_LEVER_PIN (1)
14 401-71822 SFBS-M3_L6 (1)
15 401-67238 CLAMP_SPRING_GUIDE (1)
16 401-89573 TENSIONER_REFLECTOR_R (1)
17 401-69547 CLAMP_LEVER_SUB_ASSY_08K (1)
18 401-69548 CLAMP_PHOTO_SENSOR_ASSY (1)
19 401-78887 ETFREFLECTIVESENSPCBASM_C (1)
20 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
21 NM-6860003-SC NUTM2.6TYPE3 (1)
22 401-66940 LOCKSENSFPC (1)
23 401-67282 SENSOR_CAP (1)
24 401-69545 CLAMP_WIRE_ASSY_08K (1)
25 401-67250 CLAMP_WIRE_GUIDE_B (2)
26 401-67279 COVER_CS_SCREW_MAC_M26X6 (6)
27 RE-0250000-K0 E-RING2.5 (1)
28 401-67248 CLAMP_WIRE_08K_N (1)
29 401-67249 CLAMP_WIRE_GUIDE_A (1)
30 401-69523 FRONT_COVER_ASSY_08K 1
31 401-67259 FRONT_COVER_08K (1)
32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
33 401-69529 DUMMY_SENSOR_UNIT 1
34
#01
401-69530 SPLICE_SENSOR_UNIT 1
35 401-67233 DUMMY_SENSOR (1)
36
#01
401-66944 SPLICE_SENSOR (1)
37 ST-4860821-SN TAPPINGSCREWM2.5X8 (2)
38 401-69522 HANDLE_UNIT_08K 1
39 401-69513 COVER_STEP_SPONGE_08K (1)
40 401-67279 COVER_CS_SCREW_MAC_M26X6 (3)
41 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
42 401-66942 MENBRANESWITCH (1)
43 401-67252 CHAMBER_LID (1)
44 401-67251 LID_PRESSURE_PLATE (1)
45 401-67254 HANDLE_REINFORCED_PLATE_12K (1)
46 401-67257 HANDLE_R_08K (1)
47 401-67232 REAR_CABLE_COVER (1)
48 401-67253 EXTENSION_PLATE (1)
49 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (14)
50 401-69549 PCB_BOX_ASSY (1)
51 401-78885 ETFMAINPCBASM_C (1)
52 ST-4860421-SN TAPPINGSCREWD=2.6L=4 (4)
53 401-66939 ETFI/FCABLEASM (1)
54 ST-4860821-SN TAPPINGSCREWM2.5X8 (2)
55 401-66943 RADIATIONSHEET (2)
56 401-67283 PCB_COVER_08K (1)
57 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (6)
58 HX-0031400-00 SPIRALTUBE (1)
59 EA-9500B00-00 CABLEBAND (5)
60 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
61 401-67258 HANDLE_L_08K (1)
62 401-71823 REEL_HOOK_ASSY (1)
63 SM-4042501-SC SCREWM4X0.7L=25 (1)
64 401-71258 REEL_HOOK (1)
65 401-71257 REEL_HOOK_BASE (1)
66 401-77469 TAPPING_SCREW_M2.6X6 (2)
67 400-68219 REEL_HOOK_SH (1)
68 WP-0430801-SC WASHERM4 (1)
69 E1306-706-C00 TAPEHOLDERWASHER (1)
- -

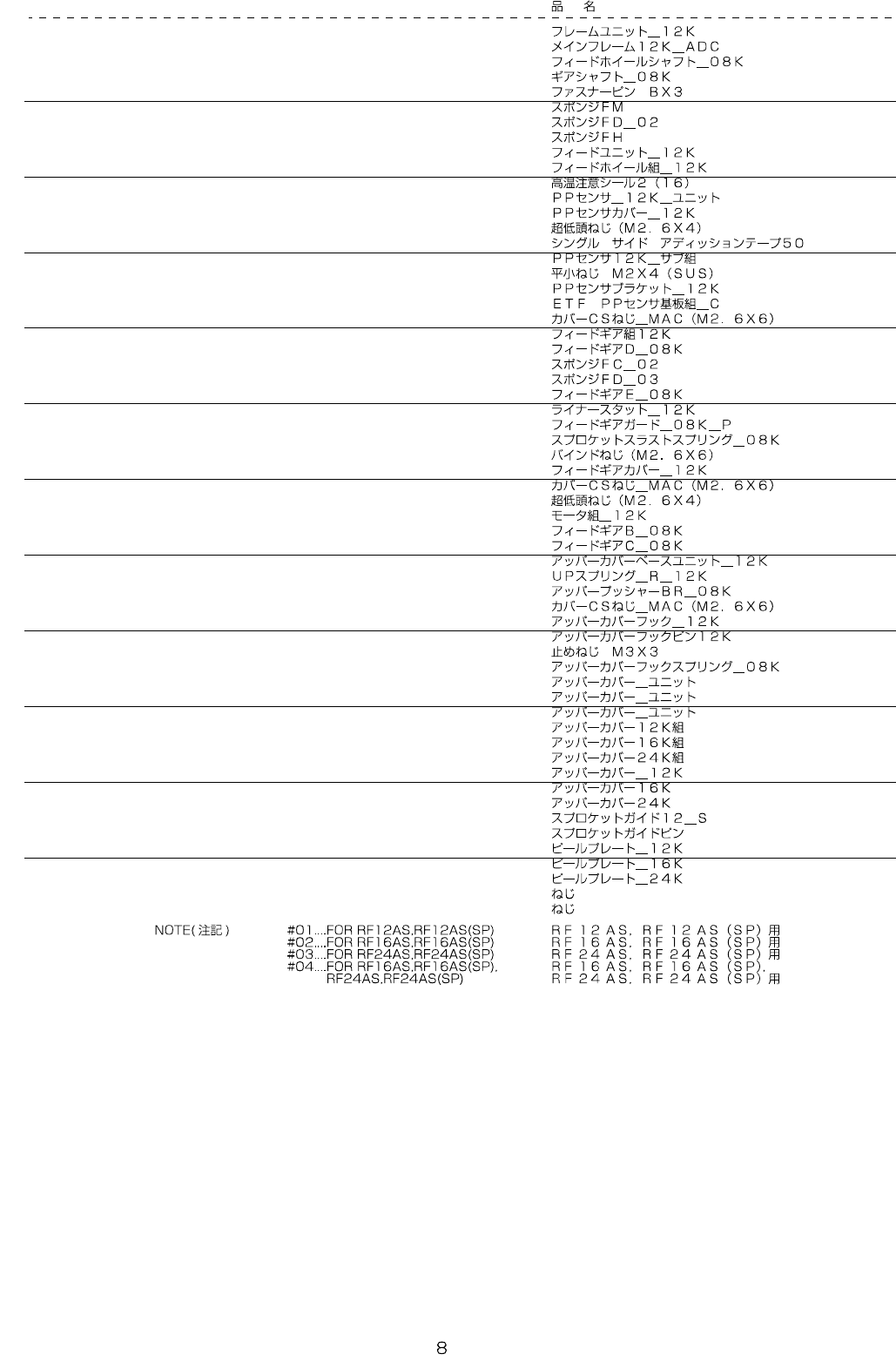

4. RF12AS,RF12AS(SP),RF16AS,RF16AS(SP),RF24AS,RF24AS(SP)(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-75338 FRAME_UNIT_12K 1
2 401-79604 MAIN_FRAME_12K_ADC (1)
3 401-67228 FEED_WHEEL_SH_08K (1)
4 401-67216 GEAR_SH_08K (5)
5 E6347-705-000 FASTENERPINBX3 (1)
6 401-71153 SPONGE_FM (2)
7 401-77383 SPONGE_FD_02 (1)
8 401-72607 SPONGE_FH (1)
9 401-75339 FEED_UNIT_12K 1
10 401-75340 FEED_WHEEL_ASSY_12K (1)
11 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
12 401-75341 PP_SENSOR_12K_UNIT (1)
13 401-72618 PP_SENSOR_COVER_12K (1)
14 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (2)
15 400-95428 SINGLESIDEADHESIONTAPE50 (0.02)
16 401-75342 PP_SENSOR_12K_SUB_ASSY (1)
17 400-85419 SCREWM2X4 (2)
18 401-72617 PP_SENSOR_BR_12K (1)
19 401-78886 ETFPPSENSPCBASM_C (1)
20 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
21 401-75343 FEED_GEAR_ASSY_12K (1)
22 401-67203 FEED_GEAR_D_08K (1)
23 401-77382 SPONGE_FC_02 (1)
24 401-77384 SPONGE_FD_03 (1)
25 401-67202 FEED_GEAR_E_08K (1)
26 401-72608 LINER_STUD_12K (3)
27 401-71255 FEED_GEAR_GUARD_08K_P (1)
28 401-67264 SPROKET_THRUST_SP_08K (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (4)
30 401-67260 FEED_GEAR_COVER_12K (1)
31 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
33 401-66950 MOTOR_ASSY_12K (1)
34 401-67205 FEED_GEAR_B_08K (1)
35 401-67204 FEED_GEAR_C_08K (1)
36 401-75344 UPPER_COVER_BASE_UNIT_12K 1
37 401-72671 UCSP_R_12K (1)
38 401-67225 UPPER_PUSHER_BR_08K (1)
39 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
40 401-72620 UPPER_COVER_HOOK_12K (1)
41 401-72621 UPPER_COVER_HOOK_PIN_12K (1)
42 SM-8030302-TP SCREWM3X3 (1)
43 401-67263 UC_HOOK_SP_08K (1)
44
#01
401-75350 UPPER_COVER_UNIT_12K 1
45
#02
401-75360 UPPER_COVER_UNIT_16K 1
46
#03
401-75362 UPPER_COVER_UNIT_24K 1
47
#01
401-75351 UPPER_COVER_12K_ASSY (1)
48
#02
401-75361 UPPER_COVER_16K_ASSY (1)
49
#03
401-75363 UPPER_COVER_24K_ASSY (1)
50
#01
401-72619 UPPER_COVER_12K (1)
51
#02
401-72622 UPPER_COVER_16K (1)
52
#03
401-72623 UPPER_COVER_24K (1)
53 401-44764 SPROCKET_GUIDE_12_S (1)
54 400-81296 SPROCKET_GUIDE_PIN (2)
55
#01
401-72624 PEEL_PLATE_12K (1)
56
#02
401-72625 PEEL_PLATE_16K (1)
57
#03
401-72626 PEEL_PLATE_24K (1)
58
#01
401-72670 SCREW (2)
59
#04
401-72670 SCREW (4)
