- - 9. RF32 AS,RF32AS(SP),RF 44AS,RF44AS( SP),RF56AS, RF56AS(SP)(3) 1 6 3 5 2 4 7 9 1 2 8 1 0 1 1 1 3 1 4 6 1 5 8 2 8 4 1 8 2 0 1 8 2 0 1 8 2 0 1 6 1 6 2 8 3 0 3 1 3 1 3 2 3 3 3 4 3 5 3 6 5 6 5 8 5 9 6 0 6 2 6 3 6 3 6…

100%1 / 34
- -

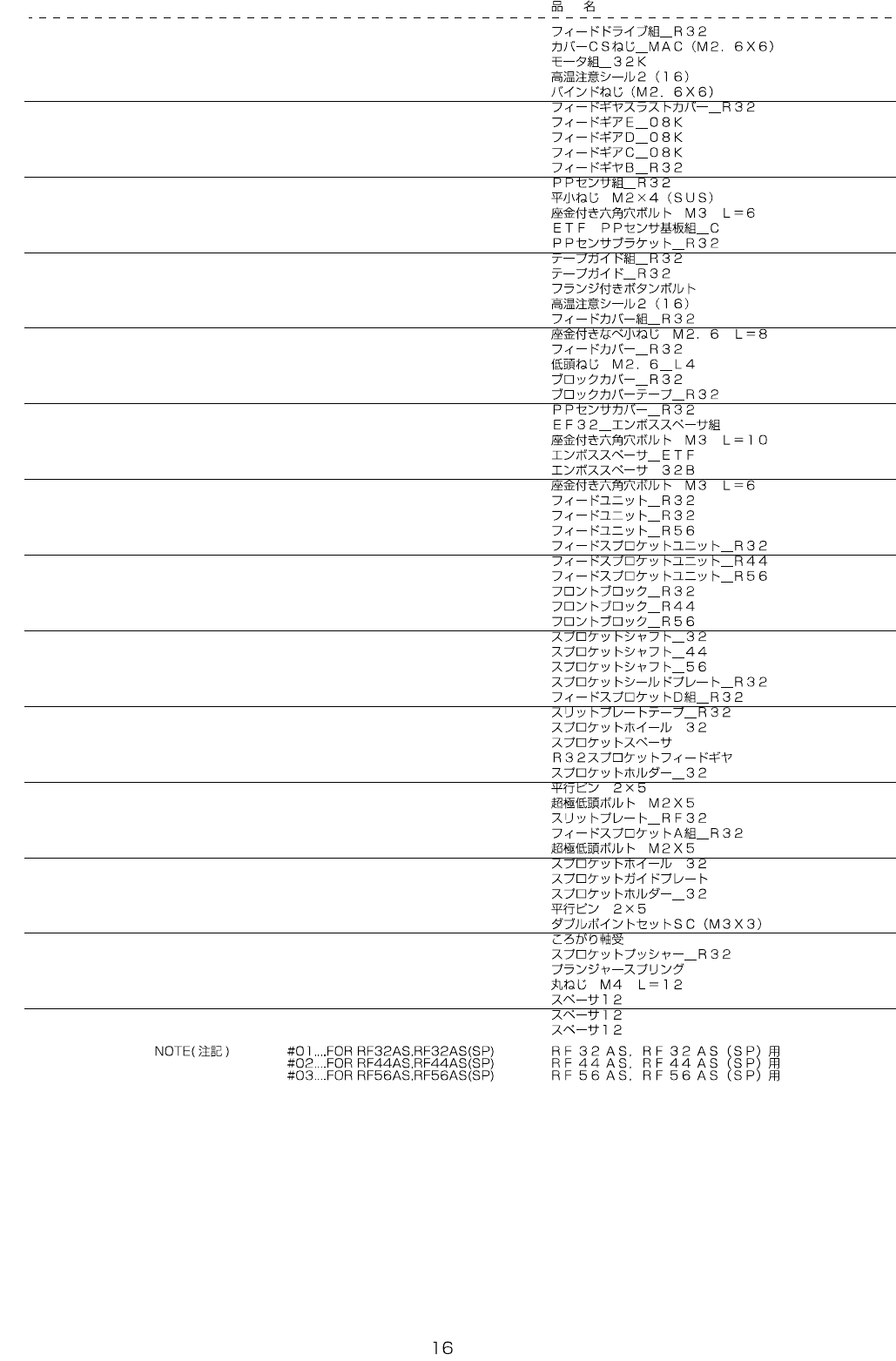

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-91025 FEED_DRIVE_ASM_R32 1
2 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
3 401-66951 MOTOR_ASSY_32K (1)
4 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
5 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
6 401-89170 FEED_GEAR_THRUST_COVER_R32 (1)
7 401-67202 FEED_GEAR_E_08K (1)
8 401-67203 FEED_GEAR_D_08K (1)
9 401-67204 FEED_GEAR_C_08K (1)
10 401-89168 FEED_GEAR_B_R32 (1)
11 401-91026 PP_SENSOR_ASSY_R32 1
12 400-85419 SCREWM2X4 (1)
13 SL-6030692-TN SCREWM3L=6 (2)
14 401-78886 ETFPPSENSPCBASM_C (1)
15 401-89177 PP_SENSOR_BR_R32 (1)
16 401-91027 TAPE_GUIDE_ASSY_R32 1
17 401-89160 TAPE_GUIDE_R32 (1)
18 401-71822 SFBS-M3_L6 (5)
19 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
20 401-91028 FEED_COVER_ASM_R32 1
21 SL-4860891-SC SCREWM2.6L=8 (2)
22 401-89180 FEED_COVER_R32 (1)
23 401-89110 LOW_HEAD_SCREW_M26_L4 (5)
24 401-89179 BLOCK_COVER_R32 (1)
25 401-89178 BLOCK_COVER_TAPE_R32 (1)
26 401-89181 PP_SENSOR_COVER_R32 (1)
27 400-91583 EF32_EMBOSS_SPACER_ASSY 1
28 SL-6031092-TN SCREWM3L=10 (1)
29 400-91599 EMBOSS_SPACER_ETF (1)
30 E6902-706-R00 EMBOSSSPACER32B (1)
31 SL-6030692-TN SCREWM3L=6 (2)
32
#01
401-91046 FEED_UNIT_R32 1
33
#02
401-91062 FEED_UNIT_R44 1
34
#03
401-91076 FEED_UNIT_R56 1
35
#01
401-91047 FEED_SPROKET_UNIT_R32 (1)
36
#02
401-91063 FEED_SPROKET_UNIT_R44 (1)
37
#03
401-91077 FEED_SPROKET_UNIT_R56 (1)
38
#01
401-89176 FRONT_BLOCK_R32 (1)
39
#02
401-89191 FRONT_BLOCK_R44 (1)
40
#03
401-89192 FRONT_BLOCK_R56 (1)
41
#01
401-89173 SPROCKET_SH_32 (1)
42
#02
401-89193 SPROCKET_SH_44 (1)
43
#03
401-89194 SPROCKET_SH_56 (1)
44 401-89169 SPROCKET_SHIELD_PLATE_R32 (1)
45 401-91048 FEED_SPROKET_D_ASSY_R32 (1)
46 401-89182 SLIT_PLATE_TAPE_R32 (1)
47 E6102-706-R00 SPROCKETWHEEL32 (1)
48 E6104-706-R00 SPROCKETSPACER (1)
49 401-89174 R32_SP_FEED_GEAR (1)
50 401-89172 SPROCKET_HOLDER_32 (1)
51 401-22613 PARALLEL_PIN_2X5 (1)
52 400-91653 SCREW_SETS_M2X5 (2)
53 401-89171 SLIT_PLATE_RF32 (1)
54 401-91049 FEED_SPROKET_A_ASSY_R32 (1)
55 400-91653 SCREW_SETS_M2X5 (2)
56 E6102-706-R00 SPROCKETWHEEL32 (1)
57 E6108-706-R00 SPROCKETGUIDEPLATE (1)
58 401-89172 SPROCKET_HOLDER_32 (1)
59 401-22613 PARALLEL_PIN_2X5 (1)
60 E2250-525-000 SETSCREW (4)
61 SB-1080014-00 BEARING (2)
62 401-90919 SPROCKET_PUSHER_R32 (1)
63 400-77529 PLUNGER_SP (1)
64 SM-3041252-TN SCREWM4L=12 (2)
65
#01
401-89108 SPACER_12 (3)
66
#02
401-89108 SPACER_12 (6)
67
#03
401-89108 SPACER_12 (9)
- -
9. RF32AS,RF32AS(SP),RF44AS,RF44AS(SP),RF56AS,RF56AS(SP)(3)
1 6
3
5
2
4
7
9
1 2
8
1 0
1 1
1 3
1 4
6
1 5
8 2 8 4
1 8 2 0
1 8 2 0
1 8 2 0
1 6
1 6
2 8 3 0
3 1
3 1
3 2 3 3
3 4
3 5
3 6
5 6 5 8
5 9
6 0 6 2
6 3
6 3
6 4 6 6
6 7 6 9
7 0
7 1
7 2 7 4
7 5
7 6 7 8
7 9
7 9
2 4
8 0 8 1
8 5 8 7
8 8 9 0
2 1 2 3
9 4 9 6
9 7 9 9
1 0 0 1 0 2
9 1 9 3
1 7
5 3 5 5
2 5 2 7
4 6
4 5
4 7
4 4
4 2
4 3
4 1
5 2
5 2
4 8
4 9
5 1
5 0
3 7 3 9
A
A
4 0
1
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-91030 PULL_BASE_UNIT_R32 1
2 401-67282 SENSOR_CAP (1)
3 401-78887 ETFREFLECTIVESENSPCBASM_C (1)
4 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
5 401-90456 TENSION_SENS_FPC_R32 (1)
6 401-89129 PULL_GEAR_SPACER (1)
7 401-66951 MOTOR_ASSY_32K (1)
8 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
9 401-67202 FEED_GEAR_E_08K (1)
10 401-67207 PULL_GEAR_A (1)
11 401-67208 PULL_GEAR_B (1)
12 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
13 401-89109 PULL_GEAR_COVER (1)
14 401-89110 LOW_HEAD_SCREW_M26_L4 (6)
15 401-89127 PULL_DRIVE_GEAR (1)
16 400-52050 SCREWM3X6MEC 3
17 400-52050 SCREWM3X6MEC 1
18
#01
401-89130 FRAME_SH_32 3
19
#02
401-89131 FRAME_SH_44 3
20
#03
401-89132 FRAME_SH_56 3
21
#01
401-89128 PULL_DRIVE_EXTENSION 2
22
#02
401-89128 PULL_DRIVE_EXTENSION 3
23
#03
401-89128 PULL_DRIVE_EXTENSION 4
24 WP-0330816-SF WASHER3.25X10X0.8 1
25
#01
401-91052 TENSIONER_ARM_ASSY_R32 1
26
#02
401-91066 TENSIONER_ARM_ASSY_R44 1
27
#03
401-91080 TENSIONER_ARM_ASSY_R56 1
28
#01
401-89133 T_ROLLER_MAIN_SH_32 (1)
29
#02
401-89134 T_ROLLER_MAIN_SH_44 (1)
30
#03
401-89135 T_ROLLER_MAIN_SH_56 (1)
31 401-89139 T_ROLLER (2)
32
#02
401-89140 T_ROLLER_SPACER (1)
33
#03
401-89140 T_ROLLER_SPACER (2)
34 400-52050 SCREWM3X6MEC (1)
35 401-72655 TENSIONER_SP_12K (1)
36 401-89573 TENSIONER_REFLECTOR_R (1)
37
#01
401-91053 TENSIONER_ARM_SUB_ASSY_R32 (1)
38
#02
401-91067 TENSIONER_ARM_SUB_ASSY_R44 (1)
39
#03
401-91081 TENSIONER_ARM_SUB_ASSY_R56 (1)
40 401-91031 GUIDE_UNIT_R32 1
41 401-91032 RAIL_UNIT
(1)
42 401-67213 SLIDE_RAIL (1)
43 SL-4860891-SC SCREWM2.6L=8 (3)
44 401-91033 SUB_RAIL_UNIT (1)
45 401-67213 SLIDE_RAIL (1)
46 401-89159 SUB_RAIL_SH_R32 (3)
47 RE-0200000-K0 E-RING2 (3)
48 401-67212 X_AXIS_BASE_PIN_2 (1)
49 SM-8030302-TP SCREWM3X3 (3)
50 401-67290 LOCATE_PIN_A (1)
51 401-67291 LOCATE_PIN_BASE (1)
52 401-67211 X_AXIS_BASE_PIN_1 (2)
53
#01
401-91054 PULL_IDLER_ARM_ASSY_R32 1
54
#02
401-91068 PULL_IDLER_ARM_ASSY_R44 1
55
#03
401-91082 PULL_IDLER_ARM_ASSY_R56 1
56
#01
401-89111 PULL_IDLER_ARM_32 (1)
57
#02
401-89112 PULL_IDLER_ARM_44 (1)
58
#03
401-89113 PULL_IDLER_ARM_56 (1)
59 401-89197 ARM_SH_HOLDER_A (1)
60
#01
401-89114 PULL_UPPER_SCRAPER_BASE_32 (1)
61
#02
401-89115 PULL_UPPER_SCRAPER_BASE_44 (1)
62
#03
401-89116 PULL_UPPER_SCRAPER_BASE_56 (1)
63 400-55256 SCREWM3X5MEC (4)
64
#01
401-89117 PULL_UPPER_SCRAPER (2)
65
#02
401-89117 PULL_UPPER_SCRAPER (3)
66
#03
401-89117 PULL_UPPER_SCRAPER (4)
67
#01
EZ-4453818-01 BOLT(CBSTSR3-5) (4)
68
#02
EZ-4453818-01 BOLT(CBSTSR3-5) (6)
69
#03
EZ-4453818-01 BOLT(CBSTSR3-5) (8)
70 401-76841 KEEP_HANDS_AWAY_LABEL (1)
71 401-89122 PULL_IDLER_GEAR (1)
72
#01
401-74648 PULL_IDLER_GEAR_EXTENSION (2)
73
#02
401-74648 PULL_IDLER_GEAR_EXTENSION (3)
74
#03
401-74648 PULL_IDLER_GEAR_EXTENSION (4)
75 WP-0430801-SC WASHERM4 (1)
76
#01
401-89147 IDLER_GEAR_SH_32 (1)
77
#02
401-89148 IDLER_GEAR_SH_44 (1)
78
#03
401-89149 IDLER_GEAR_SH_56 (1)
79 RE-0250000-K0 E-RING2.5 (2)
80
#02
401-89195 SPEACER_6X6 1
81
#03
401-89195 SPEACER_6X6 2
82
#01
SL-4860891-SC SCREWM2.6L=8 1
83
#02
SL-4031291-SC SCREWM3L=12 1
84
#03
SL-4032081-SC SCREWM3L=20 1
85
#01
401-89118 PULL_IDLER_ARM_SP_L_32 1
86
#02
401-89120 PULL_IDLER_ARM_SP_L_44 1
87
#03
401-89121 PULL_IDLER_ARM_SP_L_56 1
88
#01
401-89119 PULL_IDLER_ARM_SP_R_32 1
89
#02
401-89198 PULL_IDLER_ARM_SP_R_44 1
90
#03
401-89199 PULL_IDLER_ARM_SP_R_56 1
91
#01
401-91055 PULL_LOWER_SCRAPER_ASSY_R32 1
92
#02
401-91069 PULL_LOWER_SCRAPER_ASSY_R44 1
93
#03
401-91083 PULL_LOWER_SCRAPER_ASSY_R56 1
94
#01
401-89123 PULL_LOWER_SCRAPER_BASE_32 (1)
95
#02
401-89124 PULL_LOWER_SCRAPER_BASE_44 (1)
96
#03
401-89125 PULL_LOWER_SCRAPER_BASE_56 (1)
97
#01
401-89126 PULL_LOWER_SCRAPER (2)
98
#02
401-89126 PULL_LOWER_SCRAPER (3)
99
#03
401-89126 PULL_LOWER_SCRAPER (4)
100
#01
EZ-4453818-01 BOLT(CBSTSR3-5) (4)
101
#02
EZ-4453818-01 BOLT(CBSTSR3-5) (6)
102
#03
EZ-4453818-01 BOLT(CBSTSR3-5) (8)
