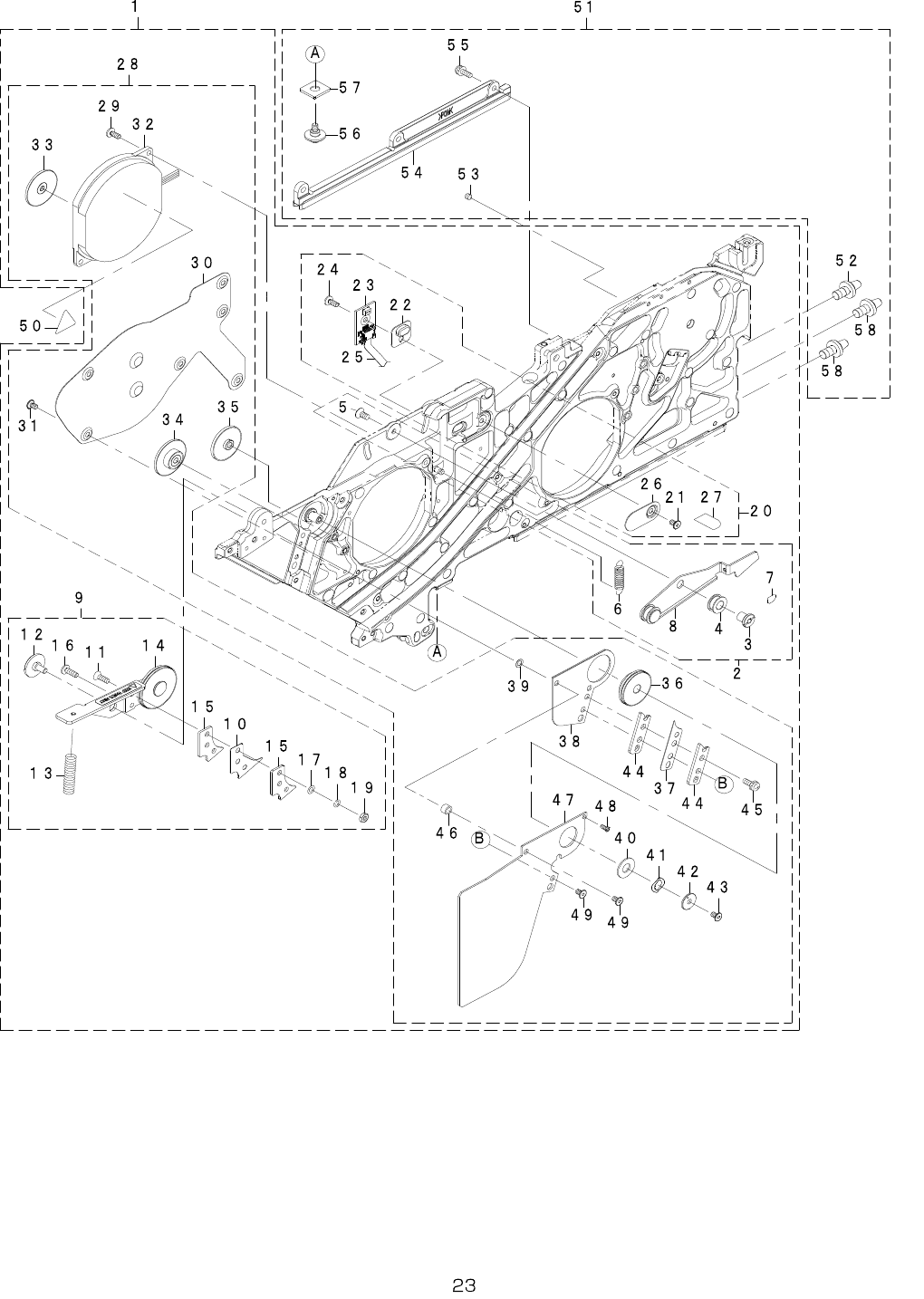

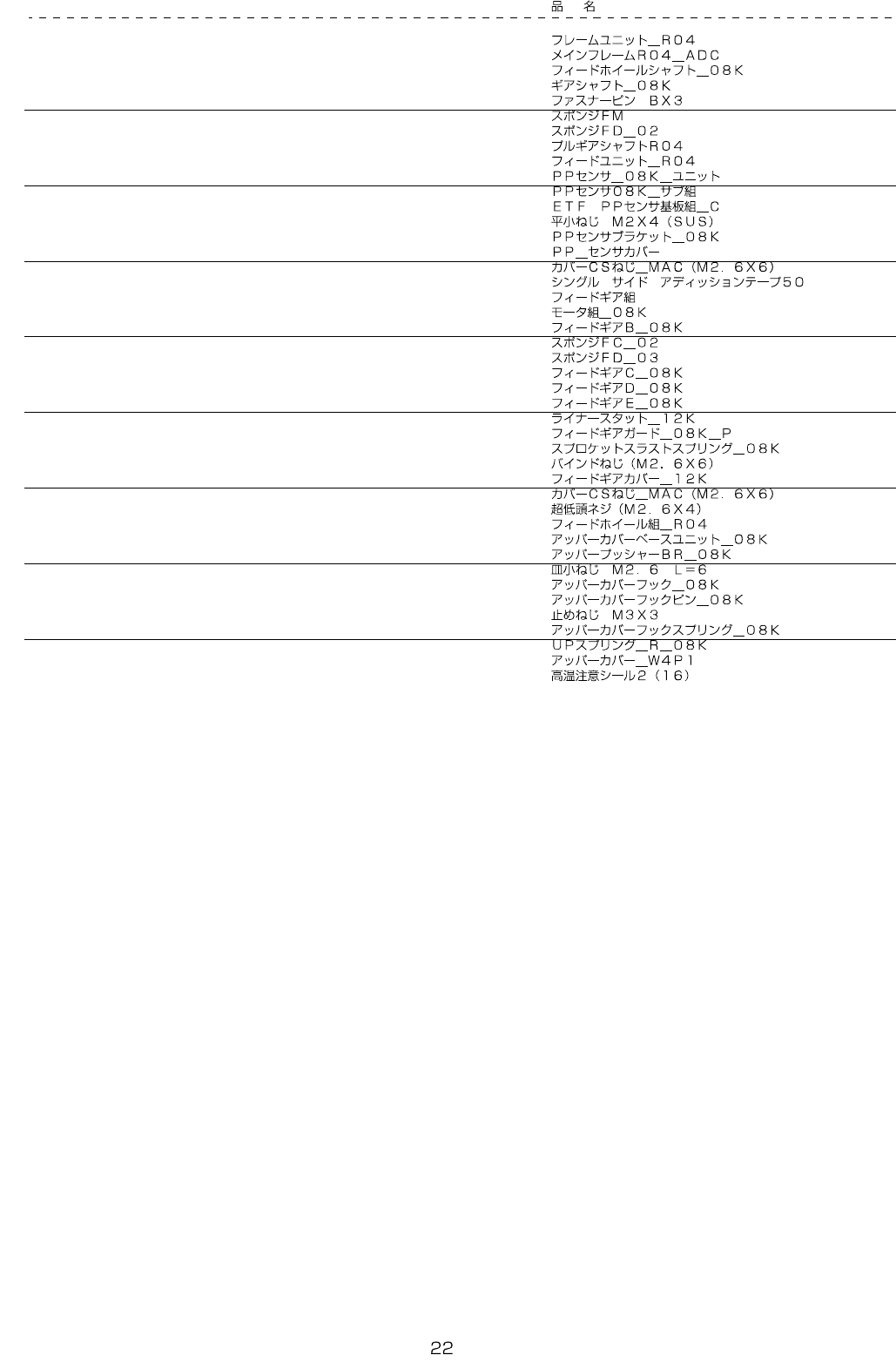

- - 12. RF04AS (2)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-99003 FRAME_UNIT_R04 1
2 401-99045 MAIN_FRAME_R04_ADC (1)
3 401-67228 FEED_WHEEL_SH_08K (1)
4 401-67216 GEAR_SH_08K (5)
5 E6347-705-000 FASTENERPINBX3 (1)
6 401-71153 SPONGE_FM (2)
7 401-77383 SPONGE_FD_02 (1)
8 401-99028 PULL_GEAR_SH_R04 (1)
9 401-99005 FEED_UNIT_R04 1
10 401-69534 PP_SENSOR_08K_UNIT (1)
11 401-69536 PP_SENSOR_08K_SUB_ASSY (1)
12 401-78886 ETFPPSENSPCBASM_C (1)
13 400-85419 SCREWM2X4 (2)
14 401-67231 PP_SENSOR_BR_08K (1)
15 401-67230 PP_SENSOR_COVER (1)
16 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
17 400-95428 SINGLESIDEADHESIONTAPE50 (0.02)
18 401-69535 FEED_GEAR_ASSY (1)
19 401-66937 MOTOR_ASSY_08K (1)
20 401-67205 FEED_GEAR_B_08K (1)
21 401-77382 SPONGE_FC_02 (1)
22 401-77384 SPONGE_FD_03 (1)
23 401-67204 FEED_GEAR_C_08K (1)
24 401-67203 FEED_GEAR_D_08K (1)
25 401-67202 FEED_GEAR_E_08K (1)
26 401-72608 LINER_STUD_12K (3)
27 401-71255 FEED_GEAR_GUARD_08K_P (1)
28 401-67264 SPROKET_THRUST_SP_08K (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (4)
30 401-67260 FEED_GEAR_COVER_12K (1)
31 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
33 401-99006 FEED_WHEEL_ASSY_R04 (1)
34 401-69518 UPPER_COVER_BASE_UNIT_08K 1
35 401-67225 UPPER_PUSHER_BR_08K (1)
36 SM-1860601-SC SCREWM2.6L=6 (1)
37 401-67223 UPPER_COVER_HOOK_08K (1)
38 401-67226 UPPER_COVER_HOOK_PIN_08K (1)
39 SM-8030302-TP SCREWM3X3 (1)
40 401-67263 UC_HOOK_SP_08K (1)
41 401-67224 UCSP_R_08K (1)
42 401-99043 UPPER_COVER_W4P1 1
43 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
- -

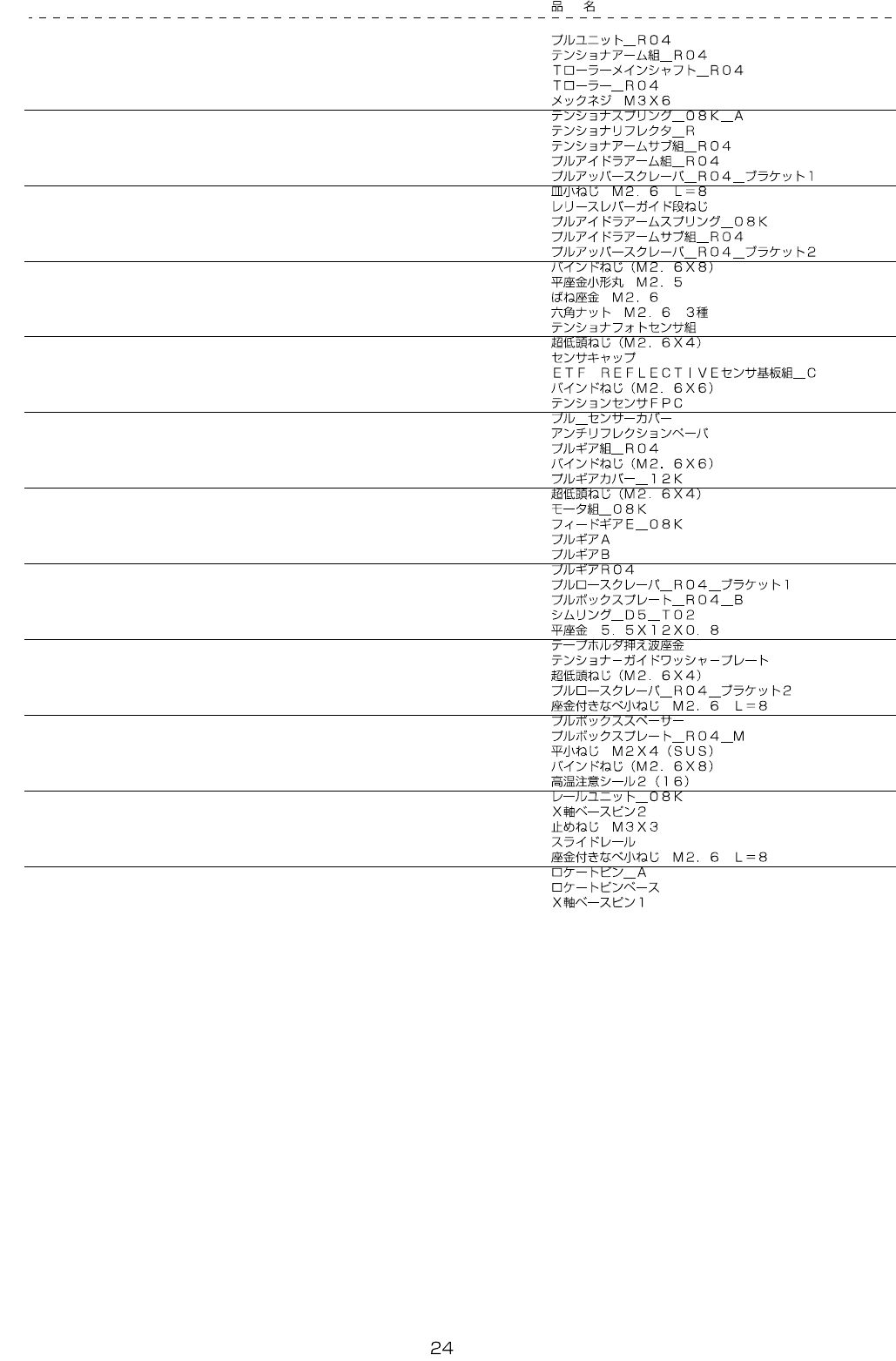

12.RF04AS(2)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-99007 PULL_UNIT_R04 1
2 401-99008 TENSIONER_ARM_ASSY_R04 (1)
3 401-99020 T_ROLLER_MAIN_SH_R04 (1)
4 401-99021 T_ROLLER_R04 (1)
5 400-52050 SCREWM3X6MEC (1)
6 401-67267 TENSIONER_SP_08K (1)
7 401-89573 TENSIONER_REFLECTOR_R (1)
8 401-99009 TENSIONER_ARM_SUB_ASSY_R04 (1)
9 401-99010 PULL_IDLER_ARM_ASSY_R04 (1)
10 401-99023 PULL_UPPER_SCRAPER_R04_BR1 (1)
11 SM-1860801-SC SCREWM2.6L=8 (1)
12 E1524-706-C00 STEPSCREW (1)
13 401-67262 PULL_IDLER_ARM_SP_08K (1)
14 401-99011 PULL_IDLER_ARM_SUB_ASSY_R04 (1)
15 401-99024 PULL_UPPER_SCRAPER_R04_BR2 (2)
16 401-72666 BINDING_HEAD_SCREW_M26X8 (1)
17 WP-0280500-SC WASHER (2)
18 WS-0260002-KN WASHERM2.6 (2)
19 NM-6860003-SC NUTM2.6TYPE3 (2)
20 401-69539 TENSIONER_PHOTO_SENSOR_ASSY (1)
21 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (1)
22 401-67282 SENSOR_CAP (1)
23 401-78887 ETFREFLECTIVESENSPCBASM_C (1)
24 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
25 401-66941 TENSIONSENSFPC (1)
26 401-67247 PULL_SENSOR_COVER_A (1)
27 401-83681 ANTIREFLECTION_PAPER (1)
28 401-99012 PULL_GEAR_ASSY_R04 (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
30 401-67261 PULL_GEAR_COVER_12K (1)
31 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (6)
32 401-66937 MOTOR_ASSY_08K (1)
33 401-67202 FEED_GEAR_E_08K (1)
34 401-67207 PULL_GEAR_A (1)
35 401-67208 PULL_GEAR_B (1)
36 401-99031 PULL_GEAR_R04 (1)
37 401-99032 PULL_LOWER_SC_R04_BR1 (1)
38 401-99029 PULL_BOX_PLATE_R04_B (1)
39 401-99030 SHIM_RING_D5_T02 (1)
40 WP-0550836-SC WASHER5.5X12X0.8 (1)
41 E1306-706-C00 TAPEHOLDERWASHER (1)
42 400-68247 TENSIONER_GUIDE_WP (1)
43 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (1)
44 401-99033 PULL_LOWER_SC_R04_BR2 (2)
45 SL-4860891-SC SCREWM2.6L=8 (1)
46 401-99034 PULL_BOX_SPACER (1)
47 401-99047 PULL_BOX_PLATE_R04_C_M (1)
48 400-85419 SCREWM2X4 (1)
49 401-72666 BINDING_HEAD_SCREW_M26X8 (2)
50 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
51 401-69520 RAIL_UNIT_08K 1
52 401-67212 X_AXIS_BASE_PIN_2 (1)
53 SM-8030302-TP SCREWM3X3 (3)
54 401-67213 SLIDE_RAIL (1)
55 SL-4860891-SC SCREWM2.6L=8 (3)
56 401-67290 LOCATE_PIN_A (1)
57 401-67291 LOCATE_PIN_BASE (1)
58 401-67211 X_AXIS_BASE_PIN_1 (2)
