RF04AS_RF08AS_RF12AS_RF16AS_RF24AS_RF32AS_RF44AS_RF56AS-Rev03.pdf - 第24页

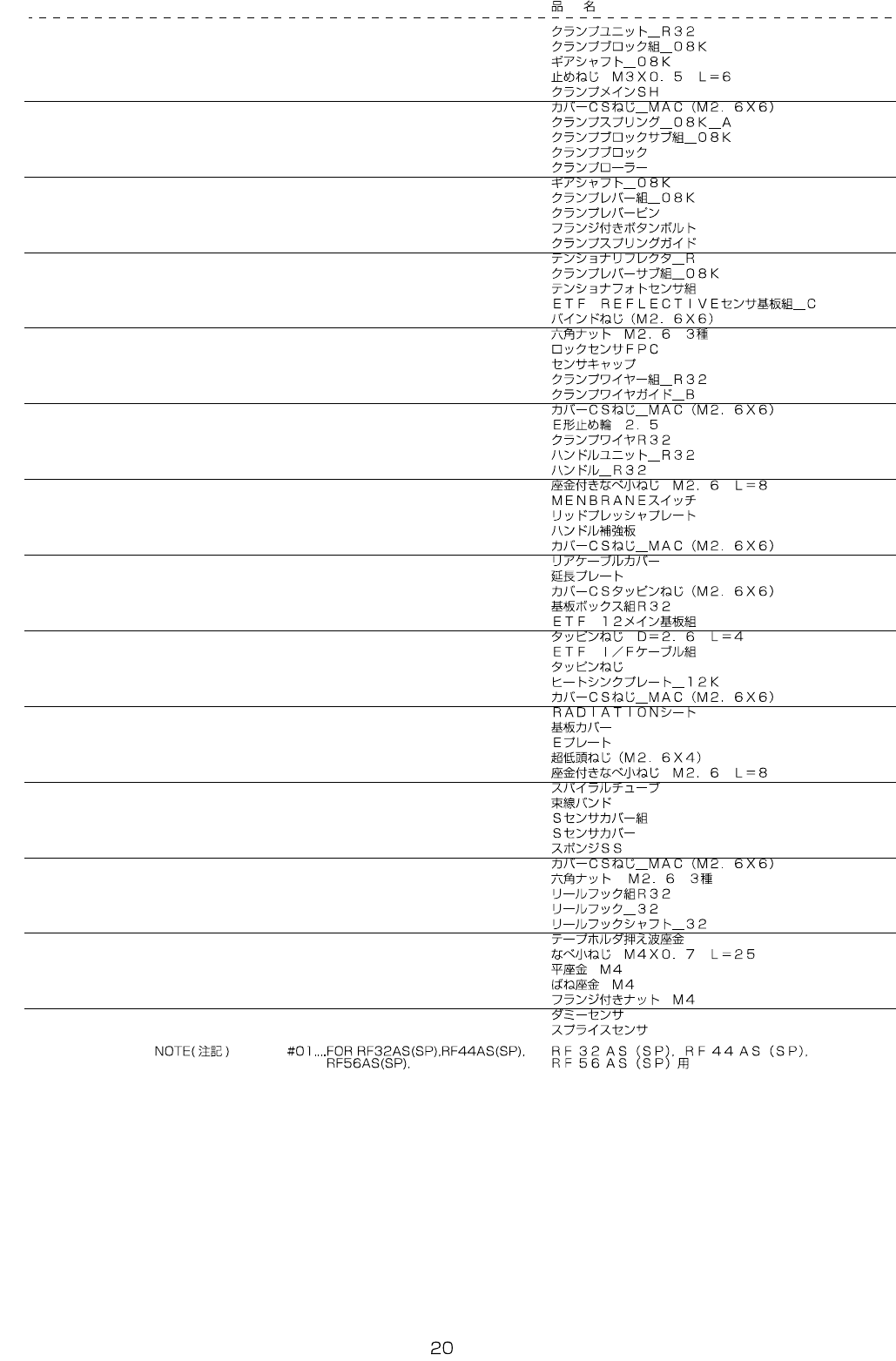

- - 11. RF04AS (1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-91035 CLAMP_UNIT_R32 1
2 401-69543 CLAMP_BLOCK_ASSY_08K (1)
3 401-67216 GEAR_SH_08K (1)
4 SM-8030602-TP SCREWM3X0.5L=6 (1)
5 401-67218 CLAMP_MAIN_SH (1)
6 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
7 401-67265 CLAMP_SP (1)
8 401-69546 CLAMP_BLOCK_SUB_ASSY_08K (1)
9 401-67215 CLAMP_BLOCK (1)
10 401-67217 CLAMP_ROLLER (1)
11 401-67216 GEAR_SH_08K (1)
12 401-69544 CLAMP_LEVER_ASSY_08K (1)
13 401-67237 CLAMP_LEVER_PIN (1)
14 401-71822 SFBS-M3_L6 (1)
15 401-67238 CLAMP_SPRING_GUIDE (1)
16 401-89573 TENSIONER_REFLECTOR_R (1)
17 401-69547 CLAMP_LEVER_SUB_ASSY_08K (1)
18 401-69548 CLAMP_PHOTO_SENSOR_ASSY (1)
19 401-78887 ETFREFLECTIVESENSPCBASM_C (1)
20 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
21 NM-6860003-SC NUTM2.6TYPE3 (1)
22 401-66940 LOCKSENSFPC (1)
23 401-67282 SENSOR_CAP (1)
24 401-91036 CLAMP_WIRE_ASSY_R32 (1)
25 401-67250 CLAMP_WIRE_GUIDE_B (3)
26 401-67279 COVER_CS_SCREW_MAC_M26X6 (6)
27 RE-0250000-K0 E-RING2.5 (1)
28 401-91037 CLAMP_WIRE_R32 (1)
29 401-91038 HANDLE_UNIT_R32 1
30 401-89150 HANDLE_R32 (1)
31 SL-4860891-SC SCREWM2.6L=8 (3)
32 401-66942 MENBRANESWITCH (1)
33 401-89158 LID_PRESSURE_PLATE (1)
34 401-67254 HANDLE_REINFORCED_PLATE_12K (1)
35 401-67279 COVER_CS_SCREW_MAC_M26X6 (5)
36 401-67232 REAR_CABLE_COVER (1)
37 401-67253 EXTENSION_PLATE (1)
38 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (2)
39 401-91039 PCB_BOX_ASSY_R32 (1)
40 401-66952 ETF12MAINPCBASM (1)
41 ST-4860421-SN TAPPINGSCREWD=2.6L=4 (4)
42 401-66939 ETFI/FCABLEASM (1)
43 ST-4860821-SN TAPPINGSCREWM2.5X8 (2)
44 401-72665 HEAT_SINK_PLATE_12K (1)
45 401-67279 COVER_CS_SCREW_MAC_M26X6 (2)
46 401-66943 RADIATIONSHEET (2)
47 401-89151 PCB_COVER (1)
48 401-89152 E_PLATE (1)
49 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (2)
50 SL-4860891-SC SCREWM2.6L=8 (5)
51 HX-0031400-00 SPIRALTABE (1)
52 EA-9500B00-00 CABLEBAND (3)
53 401-91040 S_SENSOR_COVER_ASSY (1)
54 401-89153 S_SENSOR_COVER (1)
55 401-89200 SPONGE_SS (1)
56 401-67279 COVER_CS_SCREW_MAC_M26X6 (3)
57 NM-6860003-SC NUTM2.6TYPE3 (2)
58 401-91041 REEL_HOOK_ASSY_R32 (1)
59 400-91597 REEL_HOOK_32 (1)
60 400-91598 REEL_HOOK_SH_32 (1)
61 E1306-706-C00 TAPEHOLDERWASHER (1)
62 SM-4042501-SC SCREWM4X0.7L=25 (1)
63 WP-0430801-SC WASHERM4 (1)
64 WS-0410002-KN SPRINGWASHERM4 (1)
65 NM-3040520-SC FLANGENUTM4 (1)
66 401-67233 DUMMY_SENSOR 1
67
#01
401-66944 SPLICE_SENSOR 1
- -

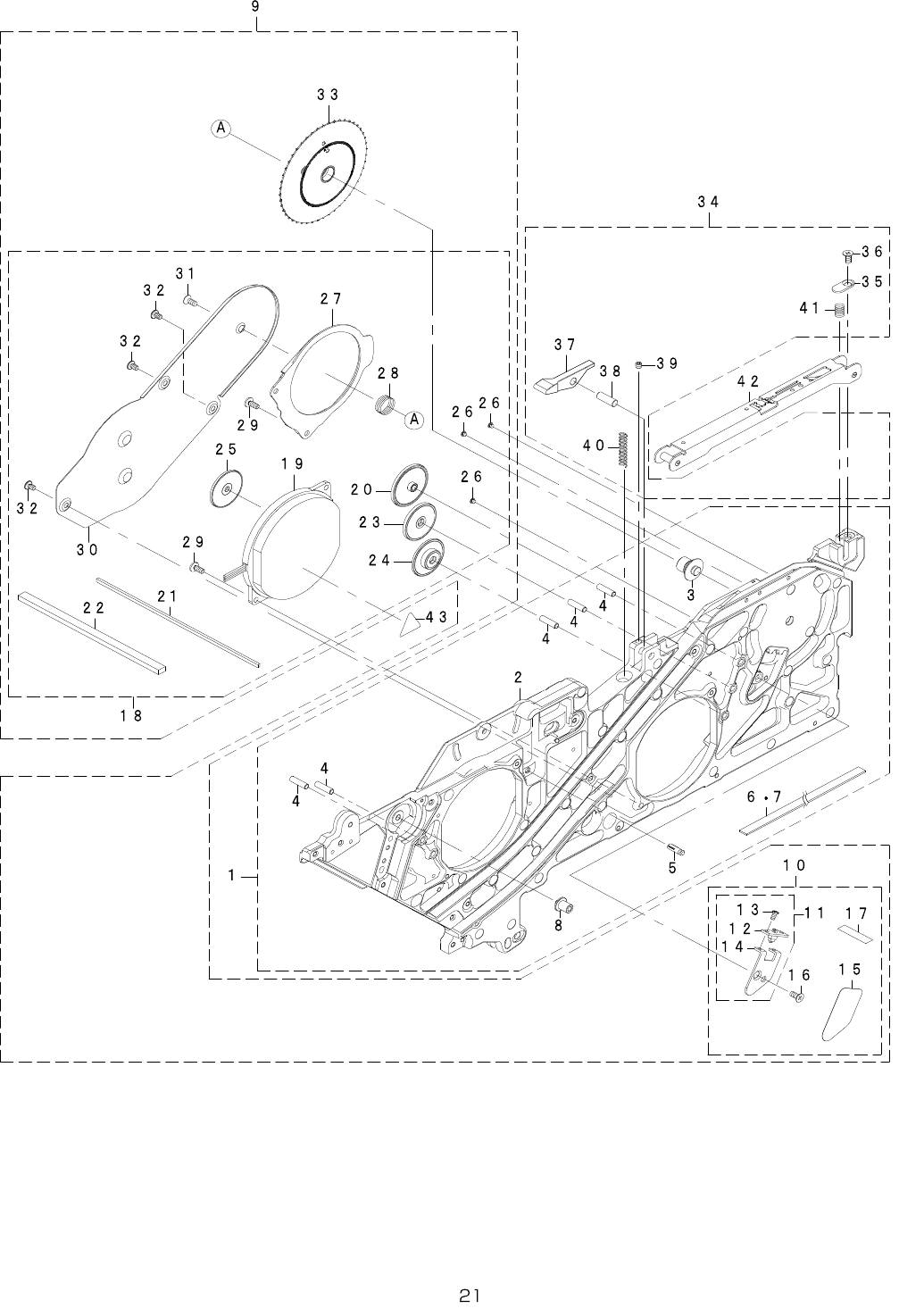

11.RF04AS(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-99003 FRAME_UNIT_R04 1
2 401-99045 MAIN_FRAME_R04_ADC (1)
3 401-67228 FEED_WHEEL_SH_08K (1)
4 401-67216 GEAR_SH_08K (5)
5 E6347-705-000 FASTENERPINBX3 (1)
6 401-71153 SPONGE_FM (2)
7 401-77383 SPONGE_FD_02 (1)
8 401-99028 PULL_GEAR_SH_R04 (1)
9 401-99005 FEED_UNIT_R04 1
10 401-69534 PP_SENSOR_08K_UNIT (1)
11 401-69536 PP_SENSOR_08K_SUB_ASSY (1)
12 401-78886 ETFPPSENSPCBASM_C (1)
13 400-85419 SCREWM2X4 (2)
14 401-67231 PP_SENSOR_BR_08K (1)
15 401-67230 PP_SENSOR_COVER (1)
16 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
17 400-95428 SINGLESIDEADHESIONTAPE50 (0.02)
18 401-69535 FEED_GEAR_ASSY (1)
19 401-66937 MOTOR_ASSY_08K (1)
20 401-67205 FEED_GEAR_B_08K (1)
21 401-77382 SPONGE_FC_02 (1)
22 401-77384 SPONGE_FD_03 (1)
23 401-67204 FEED_GEAR_C_08K (1)
24 401-67203 FEED_GEAR_D_08K (1)
25 401-67202 FEED_GEAR_E_08K (1)
26 401-72608 LINER_STUD_12K (3)
27 401-71255 FEED_GEAR_GUARD_08K_P (1)
28 401-67264 SPROKET_THRUST_SP_08K (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (4)
30 401-67260 FEED_GEAR_COVER_12K (1)
31 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
33 401-99006 FEED_WHEEL_ASSY_R04 (1)
34 401-69518 UPPER_COVER_BASE_UNIT_08K 1
35 401-67225 UPPER_PUSHER_BR_08K (1)
36 SM-1860601-SC SCREWM2.6L=6 (1)
37 401-67223 UPPER_COVER_HOOK_08K (1)
38 401-67226 UPPER_COVER_HOOK_PIN_08K (1)
39 SM-8030302-TP SCREWM3X3 (1)
40 401-67263 UC_HOOK_SP_08K (1)
41 401-67224 UCSP_R_08K (1)
42 401-99043 UPPER_COVER_W4P1 1
43 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
