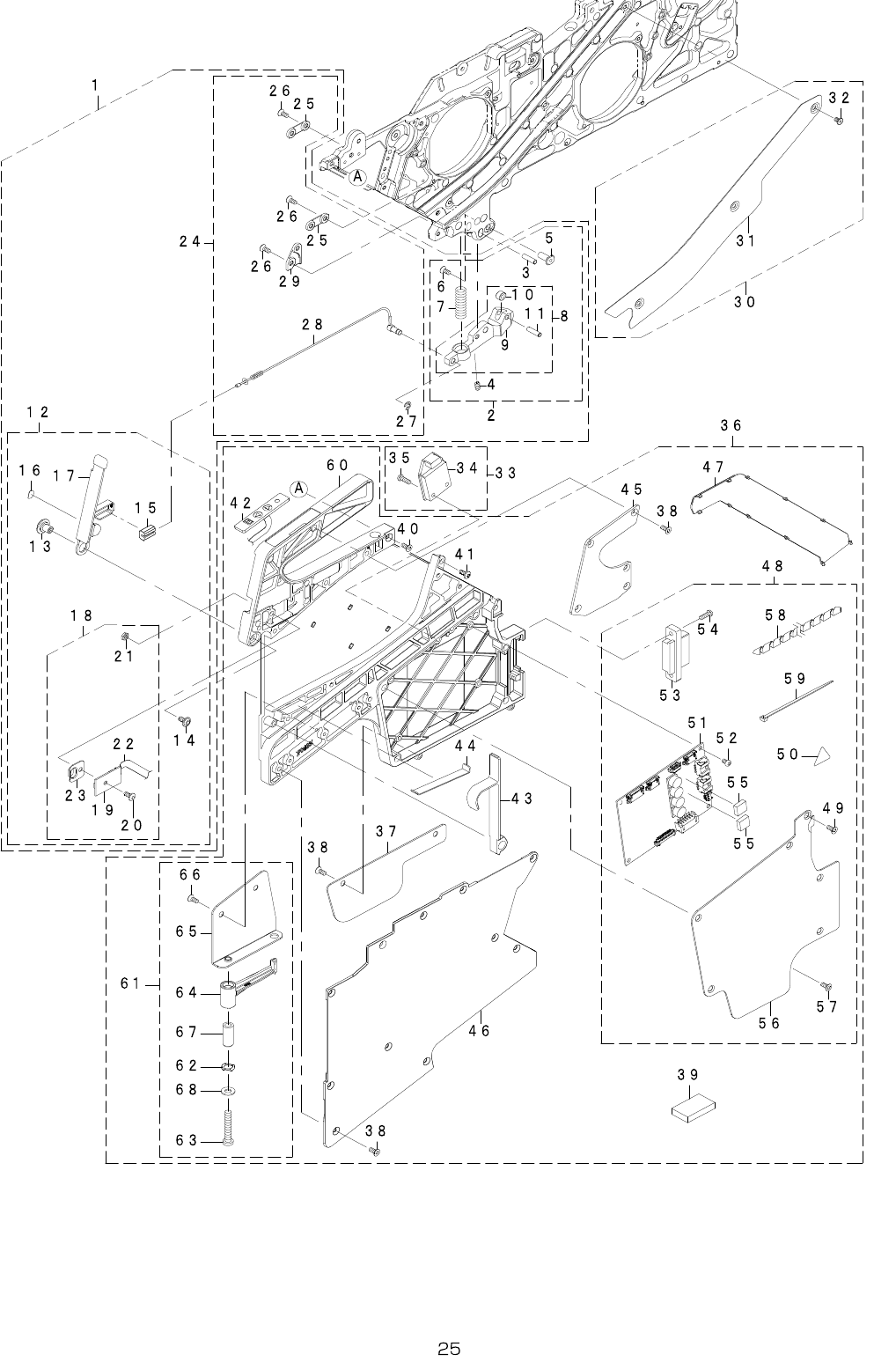

13.RF04AS(3)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-69521 CLAMP_UNIT_08K 1

2 401-69543 CLAMP_BLOCK_ASSY_08K (1)

3 401-67216 GEAR_SH_08K (1)

4 SM-8030602-TP SCREWM3X0.5L=6 (1)

5 401-67218 CLAMP_MAIN_SH (1)

6 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)

7 401-67265 CLAMP_SP (1)

8 401-69546 CLAMP_BLOCK_SUB_ASSY_08K (1)

9 401-67215 CLAMP_BLOCK (1)

10 401-67217 CLAMP_ROLLER (1)

11 401-67216 GEAR_SH_08K (1)

12 401-69544 CLAMP_LEVER_ASSY_08K (1)

13 401-67237 CLAMP_LEVER_PIN (1)

14 401-71822 SFBS-M3_L6 (1)

15 401-67238 CLAMP_SPRING_GUIDE (1)

16 401-89573 TENSIONER_REFLECTOR_R (1)

17 401-69547 CLAMP_LEVER_SUB_ASSY_08K (1)

18 401-69548 CLAMP_PHOTO_SENSOR_ASSY (1)

19 401-78887 ETFREFLECTIVESENSPCBASM_C (1)

20 401-67278 BINDING_HEAD_SCREW_M26X6 (1)

21 NM-6860003-SC NUTM2.6TYPE3 (1)

22 401-66940 LOCKSENSFPC (1)

23 401-67282 SENSOR_CAP (1)

24 401-69545 CLAMP_WIRE_ASSY_08K (1)

25 401-67250 CLAMP_WIRE_GUIDE_B (2)

26 401-67279 COVER_CS_SCREW_MAC_M26X6 (6)

27 RE-0250000-K0 E-RING2.5 (1)

28 401-67248 CLAMP_WIRE_08K_N (1)

29 401-67249 CLAMP_WIRE_GUIDE_A (1)

30 401-69523 FRONT_COVER_ASSY_08K 1

31 401-67259 FRONT_COVER_08K (1)

32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)

33 401-99001 DUMMY_SENSOR_04_UNIT 1

34 401-99044 DUMMY_SENSOR_04 (1)

35 ST-4860821-SN TAPPINGSCREWM2.5X8 (2)

36 401-69522 HANDLE_UNIT_08K 1

37 401-67253 EXTENSION_PLATE (1)

38 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (16)

39 401-69513 COVER_STEP_SPONGE_08K (1)

40 401-67279 COVER_CS_SCREW_MAC_M26X6 (3)

41 401-67278 BINDING_HEAD_SCREW_M26X6 (2)

42 401-66942 MENBRANESWITCH (1)

43 401-67252 CHAMBER_LID (1)

44 401-67251 LID_PRESSURE_PLATE (1)

45 401-67254 HANDLE_REINFORCED_PLATE_12K (1)

46 401-67257 HANDLE_R_08K (1)

47 401-67232 REAR_CABLE_COVER (1)

48 401-69549 PCB_BOX_ASSY (1)

49 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)

50 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)

51 401-78885 ETFMAINPCBASM_C (1)

52 ST-4860421-SN TAPPINGSCREWD=2.6L=4 (4)

53 401-66939 ETFI/FCABLEASM (1)

54 ST-4860821-SN TAPPINGSCREWM2.5X8 (2)

55 401-66943 RADIATIONSHEET (2)

56 401-67283 PCB_COVER_08K (1)

57 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (5)

58 HX-0031400-00 SPIRALTUBE (0.09)

59 EA-9500B00-00 CABLEBAND (5)

60 401-67258 HANDLE_L_08K (1)

61 401-71823 REEL_HOOK_ASSY (1)

62 E1306-706-C00 TAPEHOLDERWASHER (1)

63 SM-4042501-SC SCREWM4X0.7L=25 (1)

64 401-71258 REEL_HOOK (1)

65 401-71257 REEL_HOOK_BASE (1)

66 401-77469 TAPPING_SCREW_M2.6X6 (2)

67 400-68219 REEL_HOOK_SH (1)

68 WP-0430801-SC WASHERM4 (1)

- -

14.SYSTEMDIAGRAM
