2. RF08AS,RF08AS(SP)(2)
- -

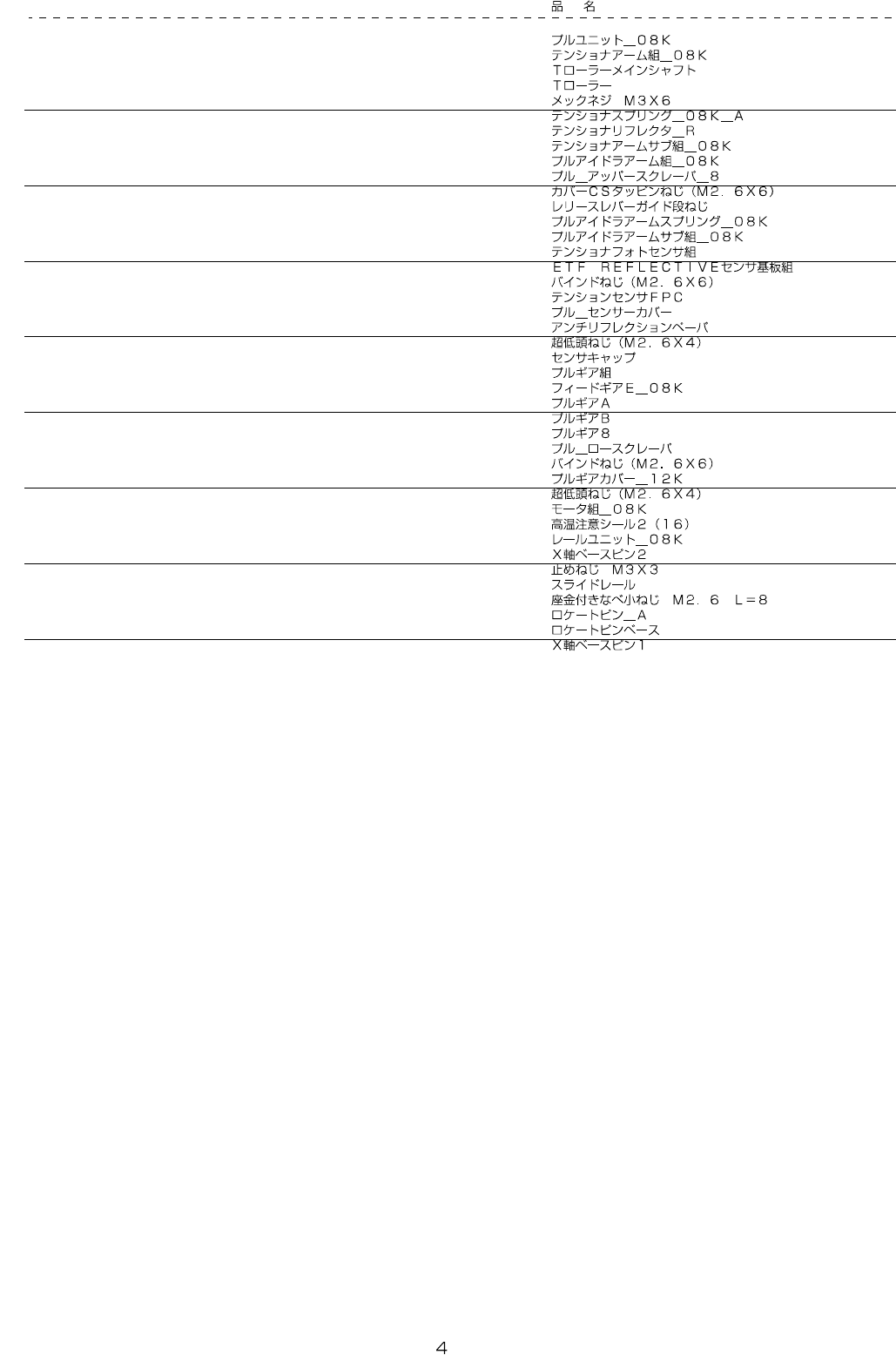

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-69519 PULL_UNIT_08K 1
2 401-69537 TENSIONER_ARM_ASSY_08K (1)
3 401-67241 T_ROLLER_MAIN_SH (1)
4 401-67240 T_ROLLER (1)
5 400-52050 SCREWM3X6MEC (1)
6 401-67267 TENSIONER_SP_08K (1)
7 401-89573 TENSIONER_REFLECTOR_R (1)
8 401-69541 TENSIONER_ARM_SUB_ASSY_08K (1)
9 401-69538 PULL_IDLER_ARM_ASSY_08K (1)
10 401-67245 PULL_UPPER_SCRAPER_8 (1)
11 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (1)
12 E1524-706-C00 STEPSCREW (1)
13 401-67262 PULL_IDLER_ARM_SP_08K (1)
14 401-69542 PULL_IDLER_ARM_SUB_ASSY_08K (1)
15 401-69539 TENSIONER_PHOTO_SENSOR_ASSY (1)
16 401-78887 ETFREFLECTIVESENSPCBASM_C (1)
17 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
18 401-66941 TENSIONSENSFPC (1)
19 401-67247 PULL_SENSOR_COVER_A (1)
20 401-83681 ANTIREFLECTION_PAPER (1)
21 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (1)
22 401-67282 SENSOR_CAP (1)
23 401-69540 PULL_GEAR_ASSY (1)
24 401-67202 FEED_GEAR_E_08K (1)
25 401-67207 PULL_GEAR_A (1)
26 401-67208 PULL_GEAR_B (1)
27 401-67209 PULL_GEAR_8 (1)
28 401-67246 PULL_LOWER_SCRAPER (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (4)
30 401-67261 PULL_GEAR_COVER_12K (1)
31 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (6)
32 401-66937 MOTOR_ASSY_08K (1)
33 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) (1)
34 401-69520 RAIL_UNIT_08K 1
35 401-67212 X_AXIS_BASE_PIN_2 (1)
36 SM-8030302-TP SCREWM3X3 (3)
37 401-67213 SLIDE_RAIL (1)
38 SL-4860891-SC SCREWM2.6L=8 (3)
39 401-67290 LOCATE_PIN_A (1)
40 401-67291 LOCATE_PIN_BASE (1)
41 401-67211 X_AXIS_BASE_PIN_1 (2)
- -
3. RF08AS,RF08AS(SP)(3)
3
4
5
6
7
1 1
9
1 0
8
1 8
2 2
2 1
2 0
1 9
2 3
1 7
1 5
1 3
1 4
1 2
2 9
2 6
2 6
2 5
2 5
2 6
2 7
2 8
2
1
4 0
A
A
4 1
4 2
4 3
4 4
4 5
4 6
4 7
4 8
4 9
4 9
4 9
6 1
5 6
5 3
5 4
5 7
5 0
6 5
6 6
6 7
6 8
6 3
6 4
6 2
3 2
3 1
3 0
3 3 3 4
3 5 3 6
3 7
2 4
3 8
5 8
5 9
6 0
3 9
6 9
1 6
5 1
5 5
5 5
5 2
