PART NAME REMARKS Q'TY 18 部品供給部 (4) FEEDER CARR IAGE SECT.(4) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 008 104690700803 BRACKET ﾌﾞﾗｹｯﾄ 3 009 102070708701 ROD ﾛｯﾄﾞ 3 010 104690701001 BRACKET ﾌﾞﾗｹｯﾄ 2 011 10…
部品供給部(4)
FEEDER CARRIAGE SECT.(4)
18
F10871-07-000-AH_01-4
M135
PART NAME
REMARKS
Q'TY
18
部品供給部(4)
FEEDER CARRIAGE SECT.(4)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1008 104690700803
BRACKET ﾌﾞﾗｹｯﾄ
3
009 102070708701
ROD ﾛｯﾄﾞ
3
010 104690701001
BRACKET ﾌﾞﾗｹｯﾄ
2011 1046907012
PLATE ﾌﾟﾚｰﾄ
15012 1083807012
PIN ﾋﾟﾝ
1
013 1087107013
BRACKET ﾌﾞﾗｹｯﾄ
1
016 1020707084
LABEL ﾗﾍﾞﾙ
2017 102070710101
RAIL(GUIDE) ﾚｰﾙ(ｶﾞｲﾄﾞ)
14018 102070710001
RAIL(GUIDE) ﾚｰﾙ(ｶﾞｲﾄﾞ)
1
019 1046907022
STOPPER ｽﾄｯﾊﾟｰ
1020 1083807020
FRAME (L) ﾌﾚｰﾑ(L)
5024 1023871963
COLLAR ｶﾗｰ
1
027 104690703201
PLATE ﾌﾟﾚｰﾄ
1
028 104690703405
BRACKET ﾌﾞﾗｹｯﾄ
1037 1087107037
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
1047 1046907055
BLOCK ﾌﾞﾛｯｸ
5
050 1046907060
GUIDE ｶﾞｲﾄﾞ
1
051 1046907061
BRACKET ﾌﾞﾗｹｯﾄ
1053 108710705302
PLATE(R) ﾌﾟﾚｰﾄ(R)
1054 1046907064
LABEL ﾗﾍﾞﾙ
CF4-A
6
N003
N531CF4A
CAM FOLLOWER ｶﾑﾌｫﾛｱ
FP1-A01
1
N004
N310FP1A01
ATTACHMENT ｱﾀｯﾁﾒﾝﾄ
EP1-321
1
N005
N310EP1321
OPTICAL FIBER CABLE UNIT ﾌｧｲﾊﾞｰﾕﾆｯﾄ
PK7-CR-E1
1
N006
N310PK7CRE1
AMPLIFIER FOR SENSOR ｱﾝﾌﾟﾕﾆｯﾄ
8 10H A2J (Trivalent)
8
N007
N510018482AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
48
N008
N510018480AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M136
F10871-07-000-AH_01-4

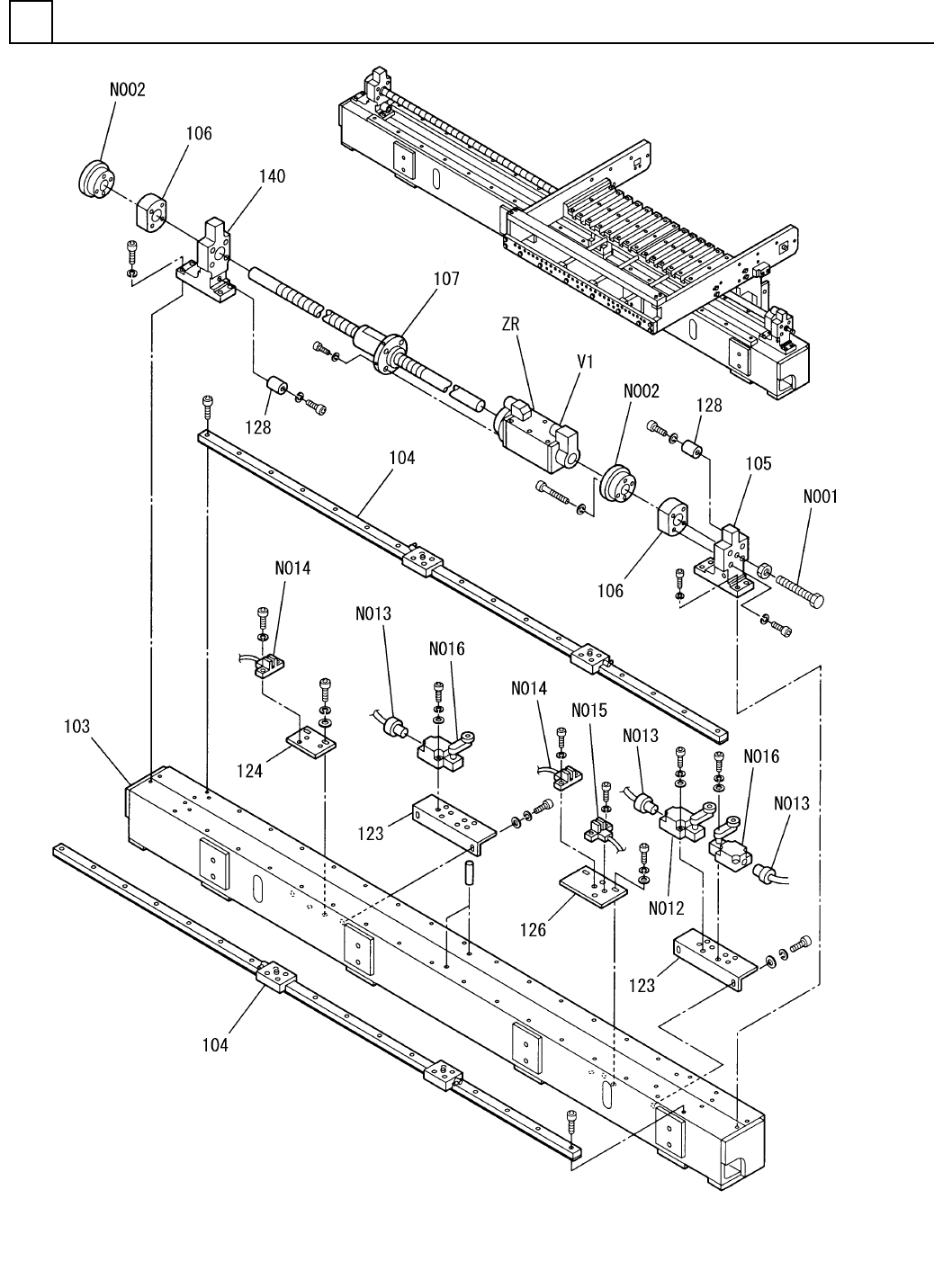

部品供給部(1)
FEEDER CARRIAGE SECT.(1)
18
F10871-07-100_01-1
M137
