Mechanics
This page oers an overview of the dierent models in the 800 series. Each model is
available in several dierent variants when it comes to shafts, anges, resolutions,
electronics and connections. Please consult the code keys on pages 14-21 for detailed
overview of all options.

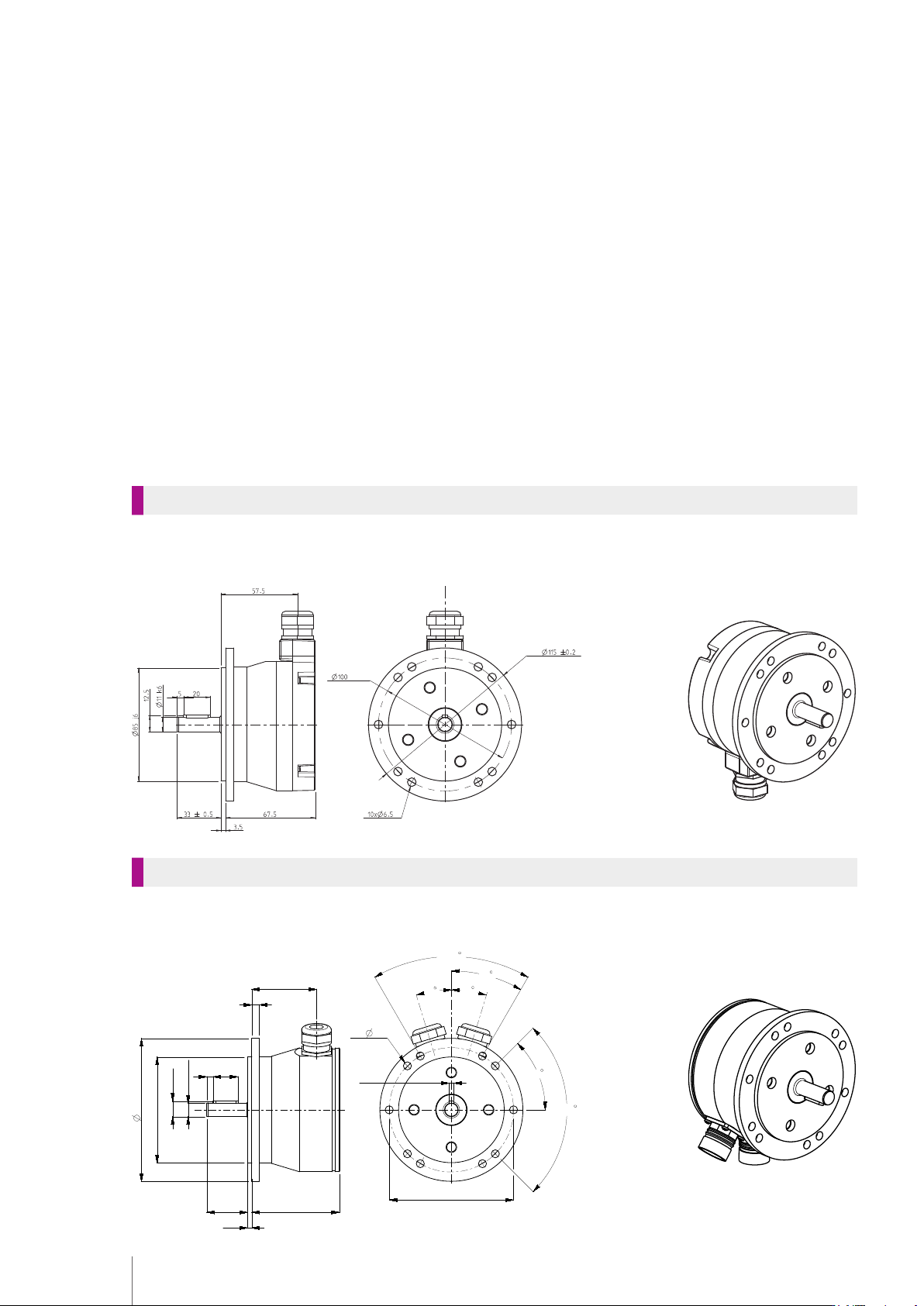

Model 850
Solid shaft encoder with B10 Euro ange.
Model 855
Dual solid shaft encoder with B10 Euro ange. Redundant scanning sensors and two
separate electronic circuits with galvanically insulated outputs.
Ø11 k6
17
4x60
Ø100
5
12.5
Ø92
Ø85 j6
3.5
6
52
17
4x90
33±0.5 70.5
69.7 1(x2)
45
30
10x 6.5
M5 (4x)
20
4
115
99.5 0.5
7
MODULARITY
Mechanics

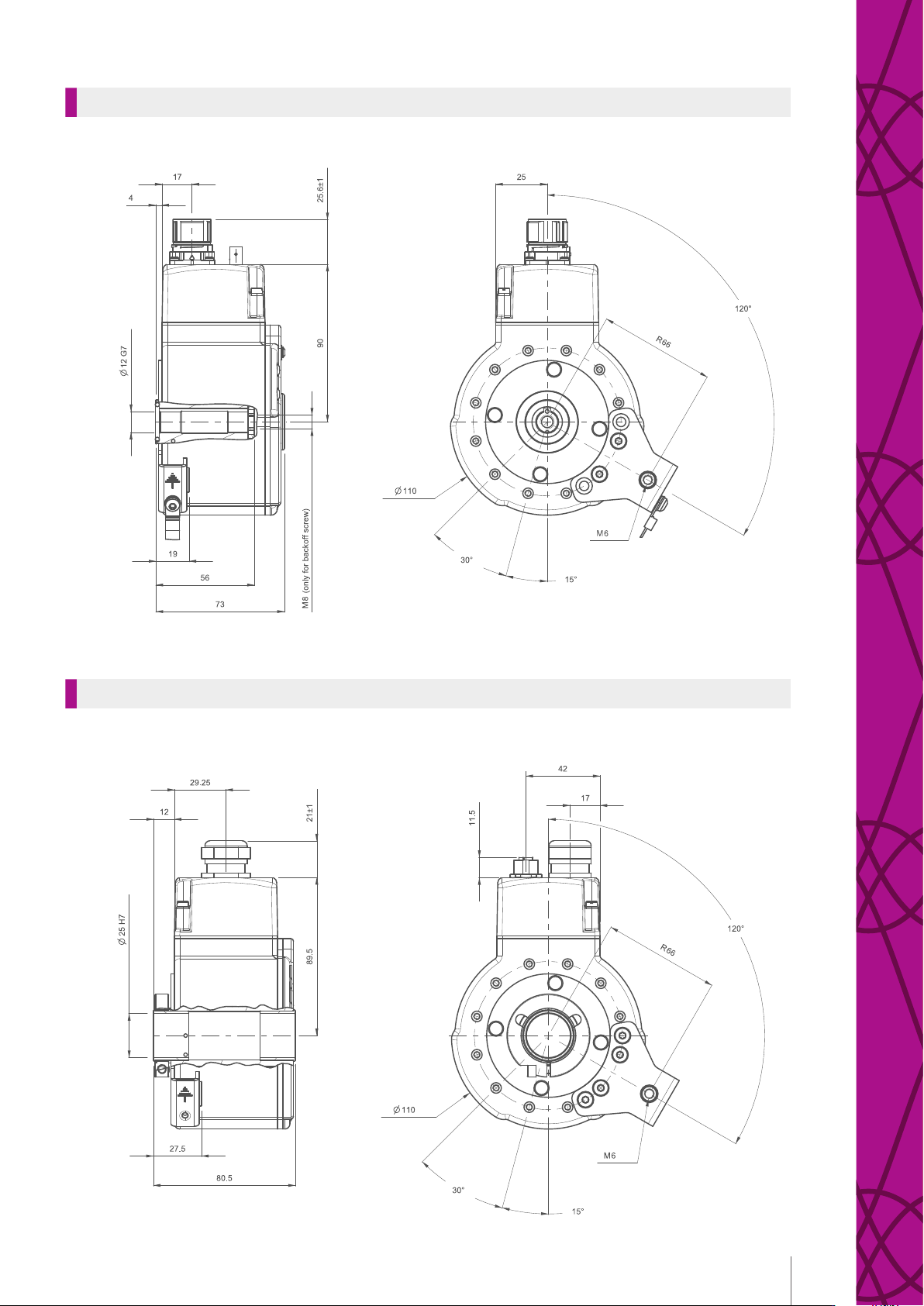

Model 801
Extra robust hollow shaft encoder with ceramic bearings for extended lifetime.
Model 803
Hollow/trough hollow shaft encoder.
8

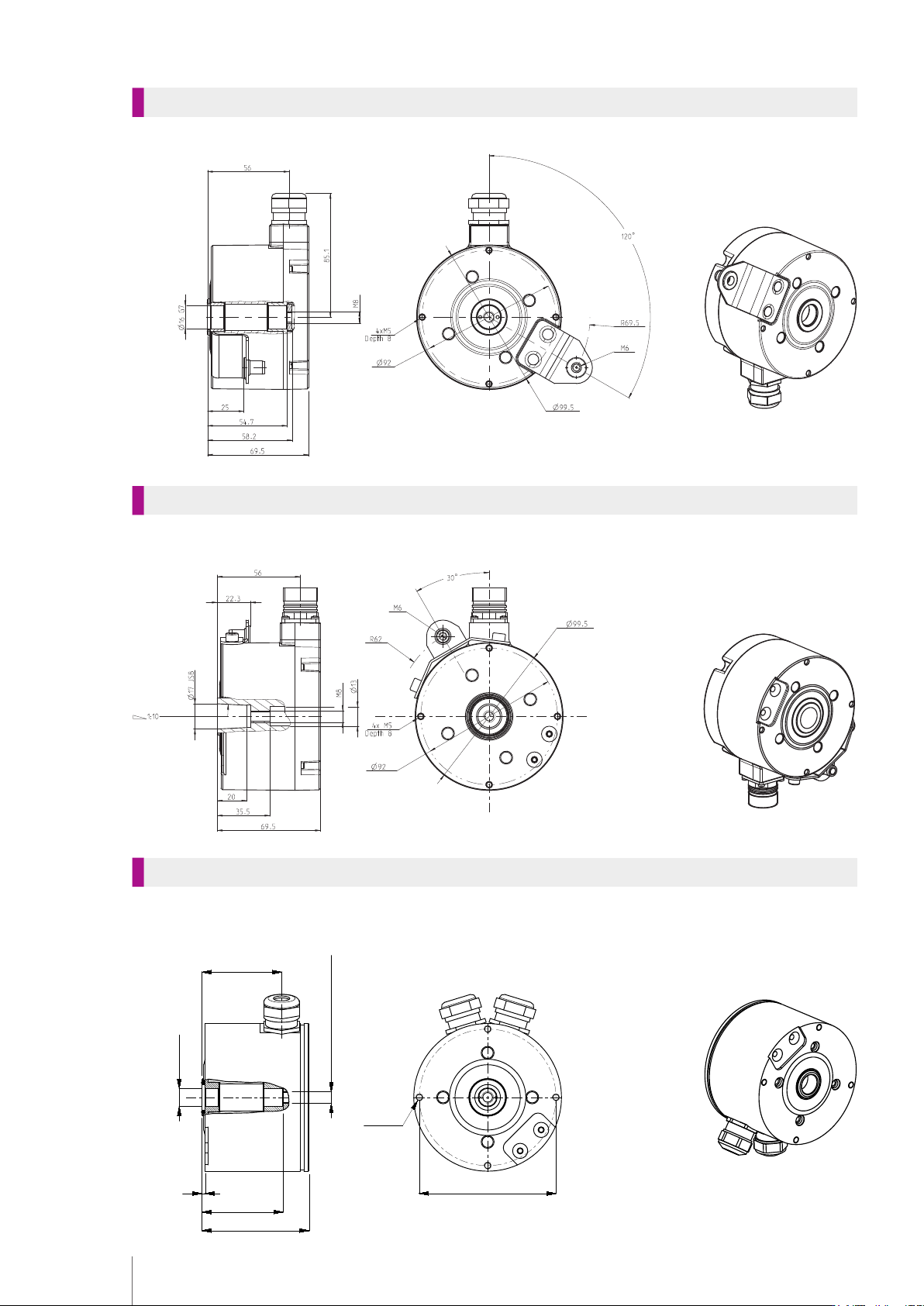

Model 861
Hollow shaft encoder.
Model 862
Extra robust hollow shaft encoder with ceramic bearings for extended lifetime.
Model 865
Dual hollow shaft encoder. Redundant scanning sensors and two separate electronic
circuits with galvanically insulated outputs. Ceramic bearings available as option.
Ø92
max 53
Ø12 G7
2 Ø92
70 1
4x M5
Depth 8
17 17
4x M5
Depth 6
53.6
72
Ø99.5
M8 (Only for dismounting)
