60 OM-1683 1 103-001 16.Specications 16. Specications Item Description 1. Model GS-CU300 2. Applicable Model SIGMA-G5 3. PCB Flow Direction and T ransfer Reference PCB Flow Direction : From Left to Right T ransfer Re…
59
OM-1683
1103-001-(02002-2)
M
M
M
M
M
M
M
M M
AE-LINK
Converter
U181(L)
UB77:X2763
1091401300-09
2091401304-02
1091401300-08
BA Side Panel TB:DC1
Bank Feeder Change Cart Connector Section (F)
X1402
X1300F1
2091401304-02
X0803
BA Side Panel TB:DC1
1091401300-08
X0801 X0802
HLS Collective Section(U12):X1202
Bank Feeder Change Cart Connector Section (F)
X1300F1
1091401300-11
2091401304-02
1091401300-08
BA Side Panel TB:DC1
X5504
X5508
A55
CN8
CN4
CN1
X5501
CN5
X5505
X5510
CN10
N2 N1
X5509
CN9
X12763
X16204
A162
CN4
M162
CN1
X16201
NA-W2
X16210
CN10
N2 N1
X16209
CN9
X5104
X5108
A51
CN8
CN4
CN1
X5101
NR-LB1
M52
CN5
X5105
NR-LB2
X5110
CN10
N2 N1
X5109
CN9
X4904
X4908
B5101
B5101
A49
CN8
CN4
M49
CN1
X4901
NR-LA1
M50
CN5
X4905
NR-LA2
X4910
CN10
N2 N1
X4909
CN9
X4304
X4308
A43
CN8
CN4
M43
CN1
X4301
NA-LA1
M44
CN5
X4305
NA-LA2
X14906
X4310
CN10
N2 N1
X4309
CN9
M55
NA-BBL
M56
NA-BBR
CN3
X5503
CN7
X5507
Backup 3 Origin
B5501
Backup 4 Origin
B5601
Movable Chute 2 Origin Sensor
B16203
B16201
Lane A Stop Sensor
B4901
B4901
Lane B Stop Sensor
M51
CN2A/2BCN1A/1B
／RX
RX
／TX
TX
9,10
７,8
5,6
3,4
／RX
RX
／TX
TX
9,10
７,8
5,6
3,4
U14
Transfer L (UB32)
X1440
CN40
X1441
CN41
X1437
X1438
CN38
CN37
X1439
CN39
Y1436
Y1437
Movable 3 Z Clamp
Down: L
Movable 3 Z Clamp Up: L
Y1439
PCB Stopper Lane B: L
CN4
CN3
B4301
B4401
X1412
CN12
B1412,1413
X1413
CN13
B1412
B1413
R
X1410
CN10
B1410,1411
X1411
CN11
B1410
B1411
X1435
X1434
CN34
CN35
X1436
CN36
Y1434
Y1435
Movable 1.2 Z Clamp
Down: R
Movable 1.2 Z Clamp Up: R
Y1438
PCB Stopper Lane A: R
PCB Stopper Origin: AL
PCB Stopper Upper: AL
PCB Stopper Origin: AR
PCB Stopper Upper: AR
X0816
CN16
B1416,1417
X0817
CN17
B1416
B1417
X1414
CN14
B1414,1415
X1415
CN15
B1414
B1415
PCB Stopper Origin: BL
PCB Stopper Upper: BL
PCB Stopper Origin: BR
PCB Stopper Upper: BR
X14906
49W2100448
X1442
CN42
B4302
Lane A Stop Sensor A Mounting Section 1
B4302
B4301
B4302
B4301
Lane A Stop Sensor A Mounting Section 3
X1440
X1441
B4401
B4401
Lane A Stop Sensor A Mounting Section 2
X1442
1 2 3 4 5 6 7 8
A
B
C
D
E
15.5 Cable Connection Diagram
Dual Transfer Harness Connection Diagram 2
60
OM-1683
1103-001
16.Specications
16.Specications
Item Description
1. Model GS-CU300
2. Applicable Model SIGMA-G5
3. PCB Flow
Direction
and Transfer
Reference
PCB Flow Direction :
From Left to Right
Transfer Reference : Lane A : Rear Right
Lane B : Front Right
Reference Chute : Lane A : Chute A
Lane B : Chute B'
Note
Rear Side of Machine
Front Side of Machine
Lane A
Lane B
Chute B’ (Fixed) : Reference
Chute B (Movable)
Chute A’ (Movable)
Chute A (Fixed) : Reference
250 mm or less
250 mm or less
Note : This unit does not comply with the transfer reference for the SMEMA
(size = 251 mm).
61
OM-1683
1103-001
16.Specications
Item Description
4. Applicable PCB Size
X × Y
Dual
Transfer Mode : 50 × 84 to 610 × 250 mm
Single Transfer Mode : 50 × 84 to 610 × 415 mm
Note :
Four Corners : R1 to R1.5 mm
Thickness 0.3 to 5.0 mm
Mass Max. 1.5 kg (50 <= X <= 260 mm)
Max. 2.
5 kg (260 < X <= 610 mm)
Material Glass Epoxy
Ceramic (Option)
Notes :
(a) In the case of ceramic, separate consideration is
required.
(b)
Depending on the PCB material, shape, warpage, mass
or surface condition (gloss), etc., it should be tested
whether or not the PCB can be transferred, or the
components can be placed normally, to conrm.

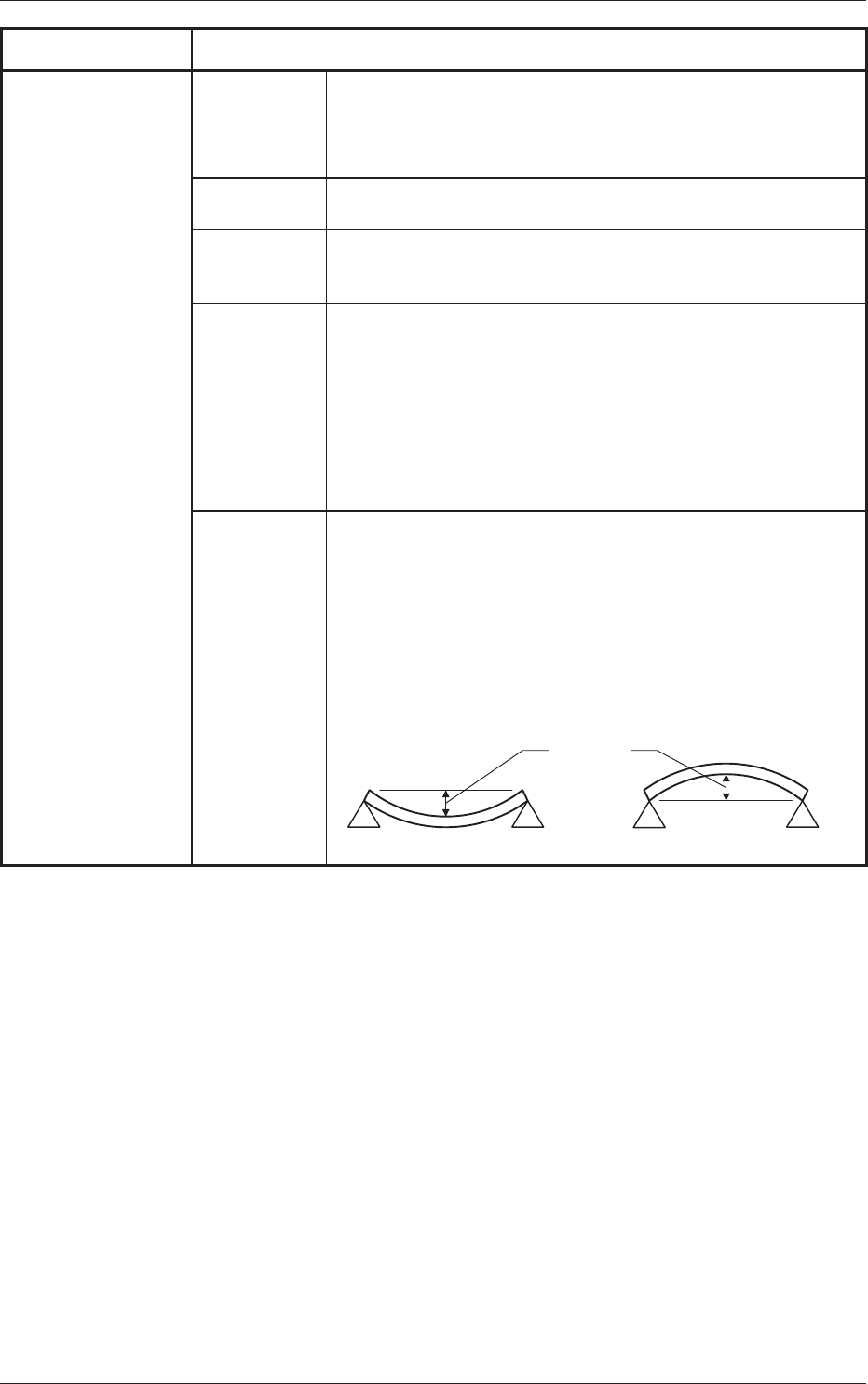

Warpage 0.2 mm or less per 50 mm (unit length)
Upper
: Max. 1.0 mm
Lower : Max. 1.0 mm
• 0.2 mm or less per 50 mm (unit length)
Example : The warpage must be 0.8 mm or less when the PCB size
is 200 mm.
• Max. 1.0 mm
Example : The warpage must be 1.0 mm or less when the PCB size
exceeds 250 mm.
Warpage
