YC8-KLM-000_PartsList.pdf
P AR TS LIST KLM-1206(PL) Wide-Range Compact Modular YC 8
Contents
KLM-1206
1
Base Section
Base .....................................................................1-1
2
Cover Section
Upper Front Cover ................................................2-1
Working Area Door
...............................................2-2
LCD Stay / Bracket Keyboard...............................2-3
Upper Back Cover / Conveyor Cover
...................2-4
3
Feeder Holder Section
Feeder Holder 14 Lanes .......................................3-1
4
Moving-axis Section
X-axis Drive / Beam ..............................................4-1
X-axis Neighbor
....................................................4-2
X-axis Peripheral
..................................................4-3
Y-axis Drive
..........................................................4-4
Y-axis Gantry
........................................................4-5
Y-axis Peripheral
..................................................4-6
5
Head Section
CZ-axis (for Camera Up-Down) ............................5-1
Fiducial Camera
...................................................5-2
Z1-axis (for Right Head)
.......................................5-3
Z2-axis (for Left Head)
..........................................5-4
R1-axis / R2-axis
..................................................5-5
Vacuum Ejecter
....................................................5-6
6
Nozzle Section
Nozzle ...................................................................6-1
Nozzle Changer Base...........................................6-2
Nozzle Changer Deck...........................................6-3
7
Conveyor Section
Push-Up ................................................................7-1
Stopper / Sensor / Plate-Edge / Push-Up Pin.......7-2
Clamp Board Front
...............................................7-3
Clamp Board Back
................................................7-4
Right Entry / Left Entry Comparison
.....................7-5
Transportation
.......................................................7-6
Width Adjustment / Installation
.............................7-7
8
Camera Section
Multi Camera ........................................................8-1
9
Controller Section
Control Box ...........................................................9-1
10
Exterior-Etc Section
Exterior / Etc. .....................................................10-1
17
18
34
4
15
37
32
12
40
10
47
13
28
42
16
33
1
26
48
45
27
30
4
39
38
8
35
4
23
8
36
5
31
54
49
50
22
16
3
8
29
51
46
52
19
2
7
1
24
16
44
6
41
20
43
11
25
9
21
16
14
53

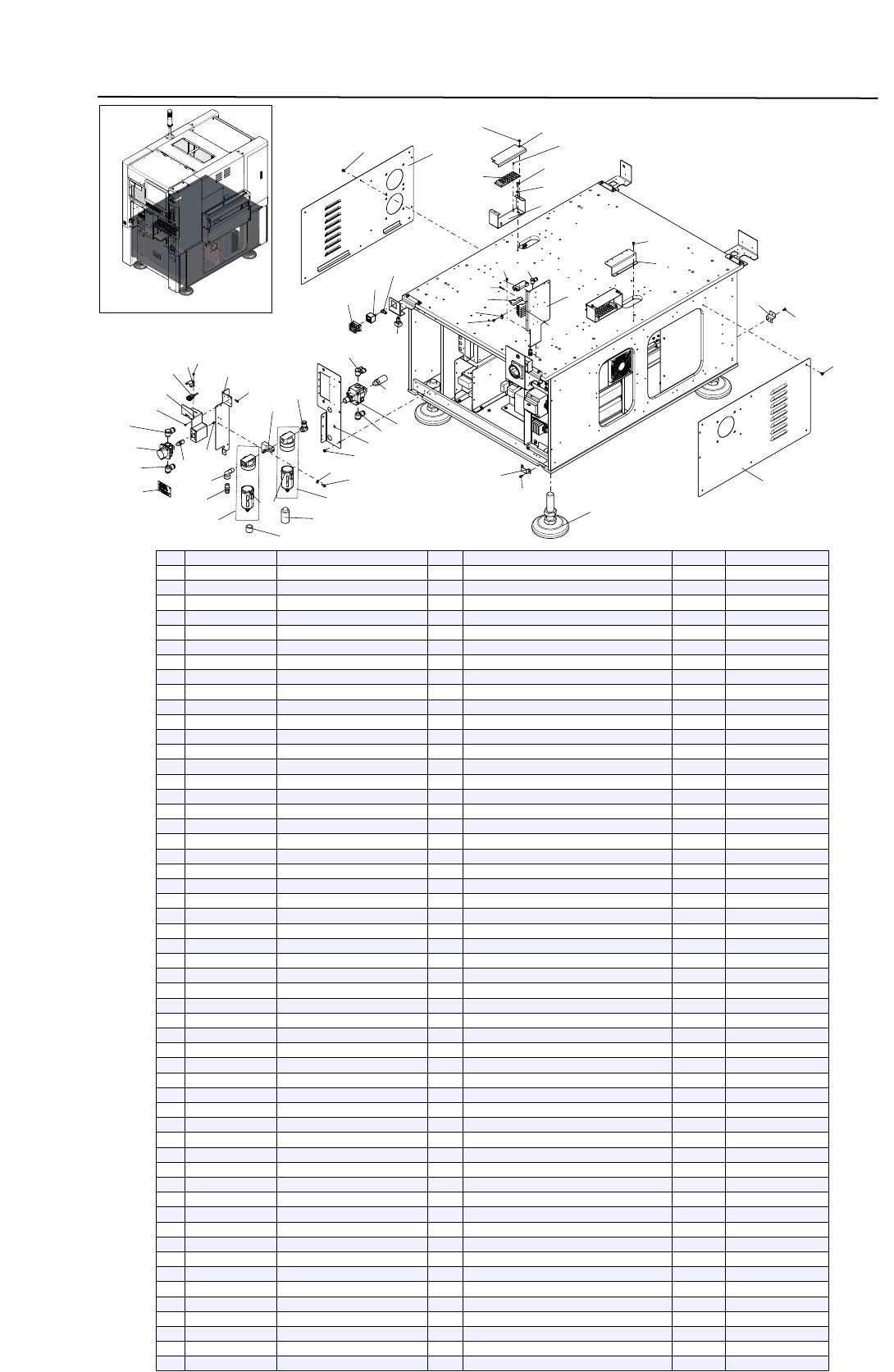

Base
Base Section
KLM-1206
1-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-11J003
SCREW, PAN HEAD W/W
14
2
$NK-3N
NYLON CLIP
8
3
KHY-M11B0-00
AIR TAG
1
4
90990-12J004
SCREW, BIN. HEAD W/W
23
5
91312-03025
BOLT HEX,SOCKET HEAD
4
6
91312-04005
BOLT HEX,SOCKET HEAD
4
7
91312-04008
BOLT HEX,SOCKET HEAD
4
8
91312-05010
BOLT HEX,SOCKET HEAD
6
9
91312-06012
BOLT HEX,SOCKET HEAD
1
10
91312-06014
BOLT HEX,SOCKET HEAD
4
11
92902-06200
WASHER,PLAIN
1
12
92990-06200
WASHER,PLAIN
4
13
98902-03006
SCREW BINDING HEAD
8
14
98902-04006
SCREW BINDING HEAD
4
15
98902-05010
SCREW BINDING HEAD
4
16
$SL12-03
JOINT
4
17
KG7-M8501-00
AIR FILTER
1
18
KG7-M8502-00
MIST FILTER
1
19
KG7-M8503-00
MODULE ADAPTER
1
20
KLD-M6680-00
HNS,USB MEMORY 3M AS
1
21
KHM-M1397-00
BRACKET,FDD 3
1
22
KLD-M8582-00
VALVE
1
5 valves & seal-plugs on 8-inline-manifold
23
KHY-M1124-00
PLATE 24
1
24
KHY-M1129-00
PLATE 25-1
1
25
KHY-M8501-00
EXHAUST VALVE
1
26
KHY-M8504-00
REGULATOR
1
27
KHY-M8596-00
PRESSURE GAUGE
1
28
KJJ-M4554-00
TERMINAL BOARD ASSY
2
29
KKE-M1125-01
PLATE 25
1
30
KLD-M1130-00
PLATE 30
1
31
91312-05008
BOLT HEX,SOCKET HEAD
3
32
KLD-M1133-00
PLATE 33
2
33
KLD-M1134-00
COVER,TERMINAL
2
34
KLD-M1151-00
PLATE SIDE L
1
35
KLD-M1152-00
PLATE SIDE R
1
36
$KM-11
MUFFLER
1
37
KLD-M1384-00
BRACKET 2,FIX
2
38
KV7-M1125-00
PLATE,CLAMP
1
39
KHW-M8597-00
BRACKET,GAUGE
1
40
KGA-M1180-00
LEVELING BOLT ASSY.
4
41
$KM-22
MUFFLER
1
42
$KM-31
MUFFLER
1
43
90990-42J008
JOINT
1
44
90990-42J006
JOINT
1
45
$SLY10-03
JOINT
1
46
$SL8-01
JOINT
1
47
KG2-M669R-11
HNS, BUZZER
1
48
$SL4-M5
JOINT
1
49
KHW-M8582-40
VALVE
5
Individual valve unit
50
KHM-M654E-02
AMP,SENSOR 2
1
51
KG7-M8501-40
FILTER ELEMENT
1
52
KG7-M8502-40
MIST FILTER ELEMENT
1
53
KG7-M8501-50
BOWL SET (AD300)
2
54
KLM-M1131-00
PLATE 31
1
