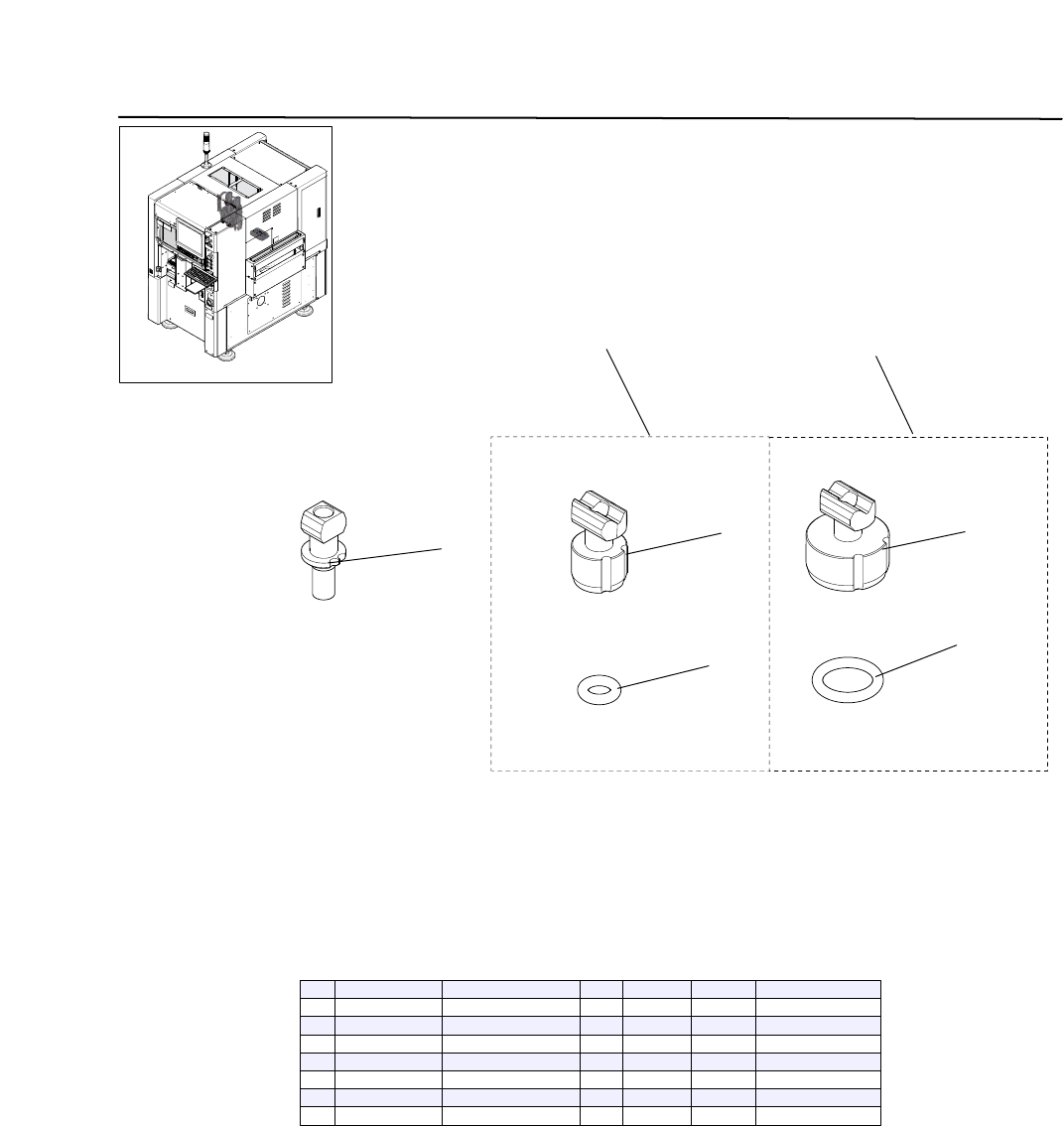

YC8-KLM-000_PartsList.pdf - 第20页
4 5 28 13 3 13 21 1 28 29 15 13 11 13 31 30 23 17 27 8 10 9 7 18 18 11 2 26 25 22 14 16 20 6 19 12 24 V acuum Ejector Head Section KLM-1206 5-6 NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date 1 KLD-M7157-1…
37, 38
41
6
42
41
19
1
6
32
19
32
31
31
10
28
18
29
8
15
27
13
30
20
21
16
11
34
5
17
7
10
12
4
12
22
2
9
33
35
3
25
9
40
13
36
14
23, 24
39
26
37, 38
41
6
42
41
19
1
6
32
19
32
31
31
10
28
18
29
8
15
27
13
30
20
21
16
11
34
5
17
7
10
12
4
12
22
2
9
33
35
3
25
9
40
13
36
14
23, 24
39
26
R1-axis / R2-axis
Head Section
KLM-2002
5-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLD-M7AB0-00
SHAFT NOZZLE ASSY.
1
S.T.D. Type
2
KLD-M713K-00
GEAR,MOTOR R
1
3
90152-03J03
SCREW SET
1
4
KLD-M7AF0-00
PULLEY R ASSY.
1
5
90185-01J000
NUT, U
1
6
KV7-M81D0-00
NOZZLE ARM ASSY.
4
7
KLD-M713J-00
PULLEY,SHAFT R
1
8
90933-01J804
BEARING
1
9
90933-03J688
BEARING
2
10
90990-19J024
NEEDLE PIN
2
11
90990-26J011
BEARING
1
12
90152-04J06
SCREW SET
4
13
91312-03012
BOLT HEX,SOCKET HEAD
8
14
91312-04008
BOLT HEX,SOCKET HEAD
2
15
91312-04010
BOLT HEX,SOCKET HEAD
2
16
91312-04025
BOLT HEX,SOCKET HEAD
2
17
91312-04040
BOLT HEX,SOCKET HEAD
4
18
91317-03008
BOLT HEX,SOCKET HEAD
4
19
KV7-M8171-00
PLATE,SPRING
6
20
92902-04200
WASHER,PLAIN
2
21
92902-04600
WASHER,PLAIN
4
22
KGR-M7176-00
BELT,N AXIS
1
23
KLD-M4880-00
AC SERVO MOTOR ASSY
1
in case of "Primary Right-side Head", R1-axis drive
24
KLD-M4880-10
AC SERVO MOTOR ASSY
1
in case of "Secondary Left-side Head", R2-axis drive
25
90990-42J018
JOINT
1
26
KLD-M713C-00
BRKT,MOTOR R
1
27
KLD-M713E-00
HOUSING,SHAFT
1
28
KLD-M713F-00
SHAFT,MAIN
1
29
KLD-M713G-00
PLATE,BRG
1
30
KLD-M713H-00
STAY,R AXIS
1
31
90115-02J006
BOLT, HEX. SOCKET HEAD
4
32
90990-28J002
WASHER,PLAIN
4
33
KLD-M713L-00
GEAR,STOPER R
1
34
KLD-M713M-00
CANTILEVER PIN
1
35
KLD-M713N-00
COLLAR,DOG
1
36
KLD-M7154-00
BRKT,SENSOR
1
37
KLD-M654H-00
SENSOR R-ORG ASSY
1
in case of "Primary Right-side Head", R1-axis origin
38
KLD-M654H-10
SENSOR R-ORG ASSY
1
in case of "Secondary Left-side Head", R2-axis origin
39
98502-03005
SCREW PAN HEAD
2
40
99009-08400
CIRCLIP
1
41
91317-03010
BOLT HEX,SOCKET HEAD
8
42
KLM-M7AB0-10
SHAFT NOZZLE ASSY.
1
Load Control Type
4
5
28
13
3
13
21
1
28
29
15
13
11
13
31
30
23
17
27
8
10
9
7
18
18
11
2
26
25
22
14
16
20
6
19
12
24
Vacuum Ejector
Head Section
KLM-1206
5-6
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLD-M7157-11
BRKT,HNS.
1
2
KLD-M7166-10
BKT.VALVE
1
3
KLD-M7167-01
BKT.CAMERA CABLE
1
4
KLD-M7182-00
EJECTOR
1
in case of "2 Heads Installation"
5
KLD-M7182-10
EJECTOR
1
in case of "1 Head Installation"
6
KGS-M7176-00
VALVE
1
7
KM1-M4592-13
VAC SENSOR BOARD ASSY
2
in case of "1 Head", [1] decreased
8
KV7-M8167-00
JOINT,VACUUM SENSOR
2
ditto
9
90200-10J030
O-RING
2
ditto
10
90562-13J100
SPACER
2
ditto
11
91312-03006
BOLT HEX,SOCKET HEAD
4
in case of "1 Head", [2] decreased
12
91312-03016
BOLT HEX,SOCKET HEAD
2
13
91312-04006
BOLT HEX,SOCKET HEAD
7
14
91312-04030
BOLT HEX,SOCKET HEAD
2
15
95302-05600
NUT HEXAGON
2
in case of "1 Head", [1] decreased
16
$KM-05
MUFFLER
1
17
$SL8-01
JOINT
1
18
$TL4-M3M
JOINT
2
in case of "1 Head", [1] decreased
19
$TL4-M5
JOINT
1
20
$TL6-M5M
JOINT
1
21
$TS4-M5
JOINT
2
22
$USD8-6
JOINT
1
23
$UT4M
JOINT
2
24
$UY4
JOINT
1
in case of "2 Heads", Air-Dividing-Joint
25
$UP4
JOINT
1
in case of "1 Head", Air-Stopping-Plug
26
$UYD10-8
JOINT
1
27
K40-M8598-00
PLUG 1
1
28
KJH-M7111-A0
EJECTOR
2
for Maintenance, Spare-Parts
29
KGA-M7111-H0
VALVE
2
ditto
30
KJH-M7111-G0
VALVE
2
ditto
31
KJH-M71G4-00
BIT
2
ditto
