YC8-KLM-000_PartsList.pdf - 第19页

42

24

29

12

14

26

19

18

3

8

21

37

28

43

25

37

27

22

39

11

41

44

40

8

17

31

39

8

41

40

7

46

41

45

23

6

44

4

1

16

38

8

36

5

34

13

7

32

38

2

30

33

38

15

20

38

33

2

13

9

10

30

38

35

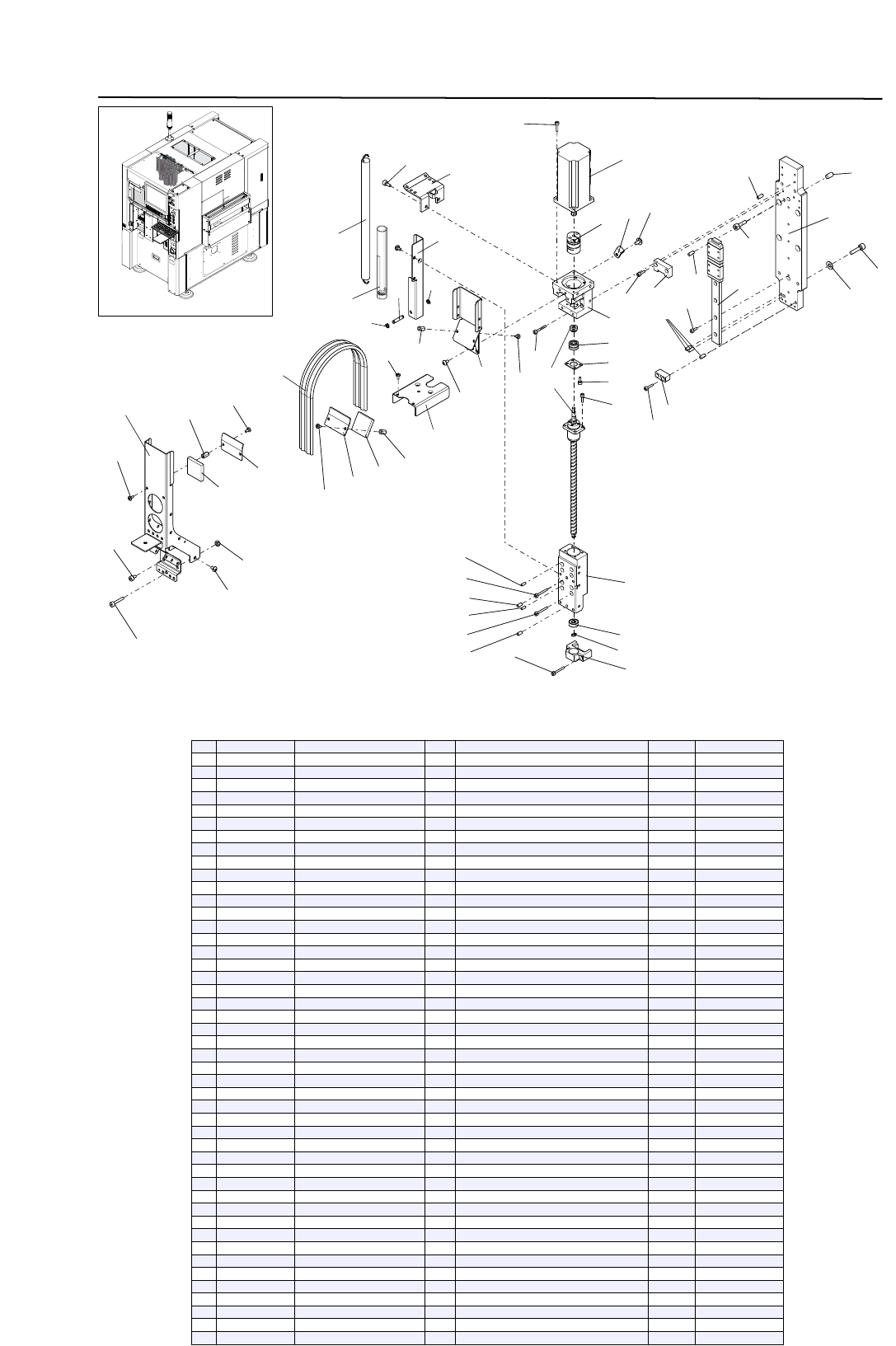

Z2-axis (for Left Head)

Head Section

KLM-1206

5-4

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

$NK-3N

NYLON CLIP

1

2

90562-13J100

SPACER

4

3

90933-02J605

BEARING

1

4

90990-12J006

SCREW, BIN. HEAD W/W

1

5

90K24-033204

AC SERVO MOTOR

1

Z2-axis Drive for "Secondary Left-side Head"

6

91312-03010

BOLT HEX,SOCKET HEAD

6

7

91312-03012

BOLT HEX,SOCKET HEAD

6

8

91312-03020

BOLT HEX,SOCKET HEAD

14

9

91312-04006

BOLT HEX,SOCKET HEAD

4

10

91312-04020

BOLT HEX,SOCKET HEAD

1

11

91312-05016

BOLT HEX,SOCKET HEAD

4

12

91312-05020

BOLT HEX,SOCKET HEAD

2

13

92012-04006

BOLT, BOTTON HEAD

8

14

92902-05200

WASHER,PLAIN

2

15

95302-04600

NUT HEXAGON

1

16

KHN-M712A-00

BEARING

1

17

KJX-M7106-10

DAMPER LOW

1

18

KJX-M711P-00

CIRCLIP 5

1

19

KJX-M712G-00

PLATE BRG.

1

20

KLD-M66N4-20

HNS,R-FLEX（2V-R2)

1

21

KLD-M7102-00

PLATE HEAD

1

22

KLD-M7103-00

LM GUIDE

1

23

KLD-M7106-00

DAMPER

1

24

KLD-M7110-00

HOLDER Z

1

25

KLD-M7112-00

HOLDER NUT

1

26

KLD-M711N-00

HOLDER BRG

1

27

KLD-M7121-00

BALL SCREW

1

28

KLD-M713P-20

SPRING RETURN

1

29

KLD-M7173-00

GUIDE,SPRING

1

30

KLD-M713R-00

SHEET,RUBBER

2

31

KLD-M7151-02

BRKT,SPRING Z

1

32

KLD-M7155-02

COVER,GEAR

1

33

KLD-M7158-00

BRKT,HNS.SUB

2

34

KLD-M7159-01

BRKT,HNS 1

1

35

KLD-M7160-00

BRKT, HNS 2

1

36

KLD-M71H9-00

COUPLING

1

37

90440-01J030

CIRCLIP

2

38

98902-03006

SCREW BINDING HEAD

11

39

99480-03008

PIN,PARALLEL

2

40

99480-04008

PIN,PARALLEL

2

41

99480-04010

PIN,PARALLEL

6

42

99480-06012

PIN,PARALLEL

2

43

KLD-M7174-00

PIN,SPRING

1

44

91312-03008

BOLT HEX,SOCKET HEAD

10

45

KLD-M7172-01

BRKT,SPG & HNS

1

46

91312-04008

BOLT HEX,SOCKET HEAD

2

37, 38

41

6

42

41

19

1

6

32

19

32

31

10

28

18

29

8

15

27

13

30

20

21

16

11

34

5

17

7

10

12

4

12

22

2

9

33

35

3

25

9

40

13

36

14

23, 24

39

26

37, 38

41

6

42

41

19

1

6

32

19

32

31

10

28

18

29

8

15

27

13

30

20

21

16

11

34

5

17

7

10

12

4

12

22

2

9

33

35

3

25

9

40

13

36

14

23, 24

39

26

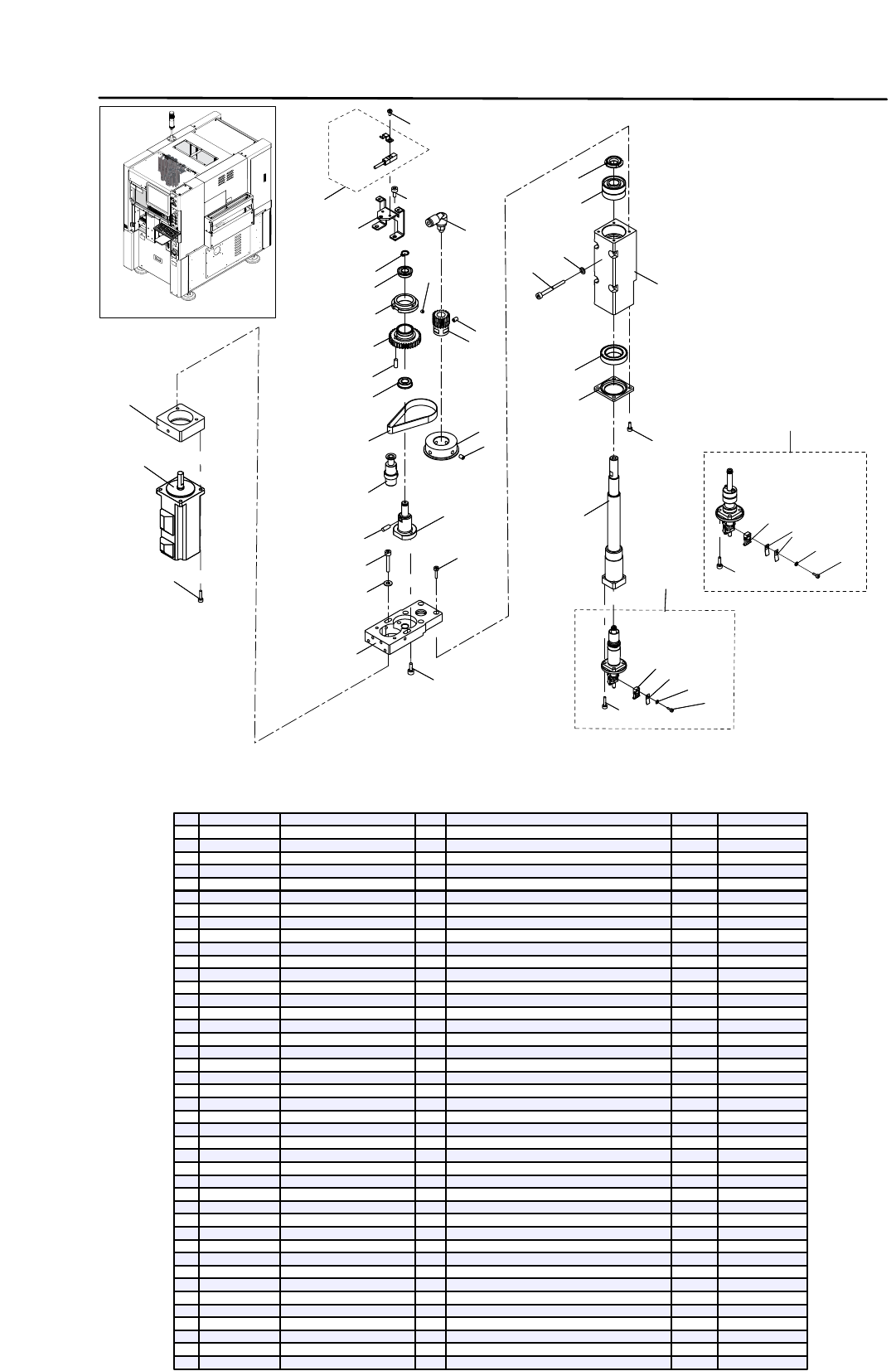

R1-axis / R2-axis

Head Section

KLM-2002

5-5

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

KLD-M7AB0-00

SHAFT NOZZLE ASSY.

1

S.T.D. Type

2

KLD-M713K-00

GEAR,MOTOR R

1

3

90152-03J03

SCREW SET

1

4

KLD-M7AF0-00

PULLEY R ASSY.

1

5

90185-01J000

NUT, U

1

6

KV7-M81D0-00

NOZZLE ARM ASSY.

4

7

KLD-M713J-00

PULLEY,SHAFT R

1

8

90933-01J804

BEARING

1

9

90933-03J688

BEARING

2

10

90990-19J024

NEEDLE PIN

2

11

90990-26J011

BEARING

1

12

90152-04J06

SCREW SET

4

13

91312-03012

BOLT HEX,SOCKET HEAD

8

14

91312-04008

BOLT HEX,SOCKET HEAD

2

15

91312-04010

BOLT HEX,SOCKET HEAD

2

16

91312-04025

BOLT HEX,SOCKET HEAD

2

17

91312-04040

BOLT HEX,SOCKET HEAD

4

18

91317-03008

BOLT HEX,SOCKET HEAD

4

19

KV7-M8171-00

PLATE,SPRING

6

20

92902-04200

WASHER,PLAIN

2

21

92902-04600

WASHER,PLAIN

4

22

KGR-M7176-00

BELT,N AXIS

1

23

KLD-M4880-00

AC SERVO MOTOR ASSY

1

in case of "Primary Right-side Head", R1-axis drive

24

KLD-M4880-10

AC SERVO MOTOR ASSY

1

in case of "Secondary Left-side Head", R2-axis drive

25

90990-42J018

JOINT

1

26

KLD-M713C-00

BRKT,MOTOR R

1

27

KLD-M713E-00

HOUSING,SHAFT

1

28

KLD-M713F-00

SHAFT,MAIN

1

29

KLD-M713G-00

PLATE,BRG

1

30

KLD-M713H-00

STAY,R AXIS

1

31

90115-02J006

BOLT, HEX. SOCKET HEAD

4

32

90990-28J002

WASHER,PLAIN

4

33

KLD-M713L-00

GEAR,STOPER R

1

34

KLD-M713M-00

CANTILEVER PIN

1

35

KLD-M713N-00

COLLAR,DOG

1

36

KLD-M7154-00

BRKT,SENSOR

1

37

KLD-M654H-00

SENSOR R-ORG ASSY

1

in case of "Primary Right-side Head", R1-axis origin

38

KLD-M654H-10

SENSOR R-ORG ASSY

1

in case of "Secondary Left-side Head", R2-axis origin

39

98502-03005

SCREW PAN HEAD

2

40

99009-08400

CIRCLIP

1

41

91317-03010

BOLT HEX,SOCKET HEAD

8

42

KLM-M7AB0-10

SHAFT NOZZLE ASSY.

1

Load Control Type

4

5

28

13

3

13

21

1

28

29

15

13

11

13

31

30

23

17

27

8

10

9

7

18

11

2

26

25

22

14

16

20

6

19

12

24

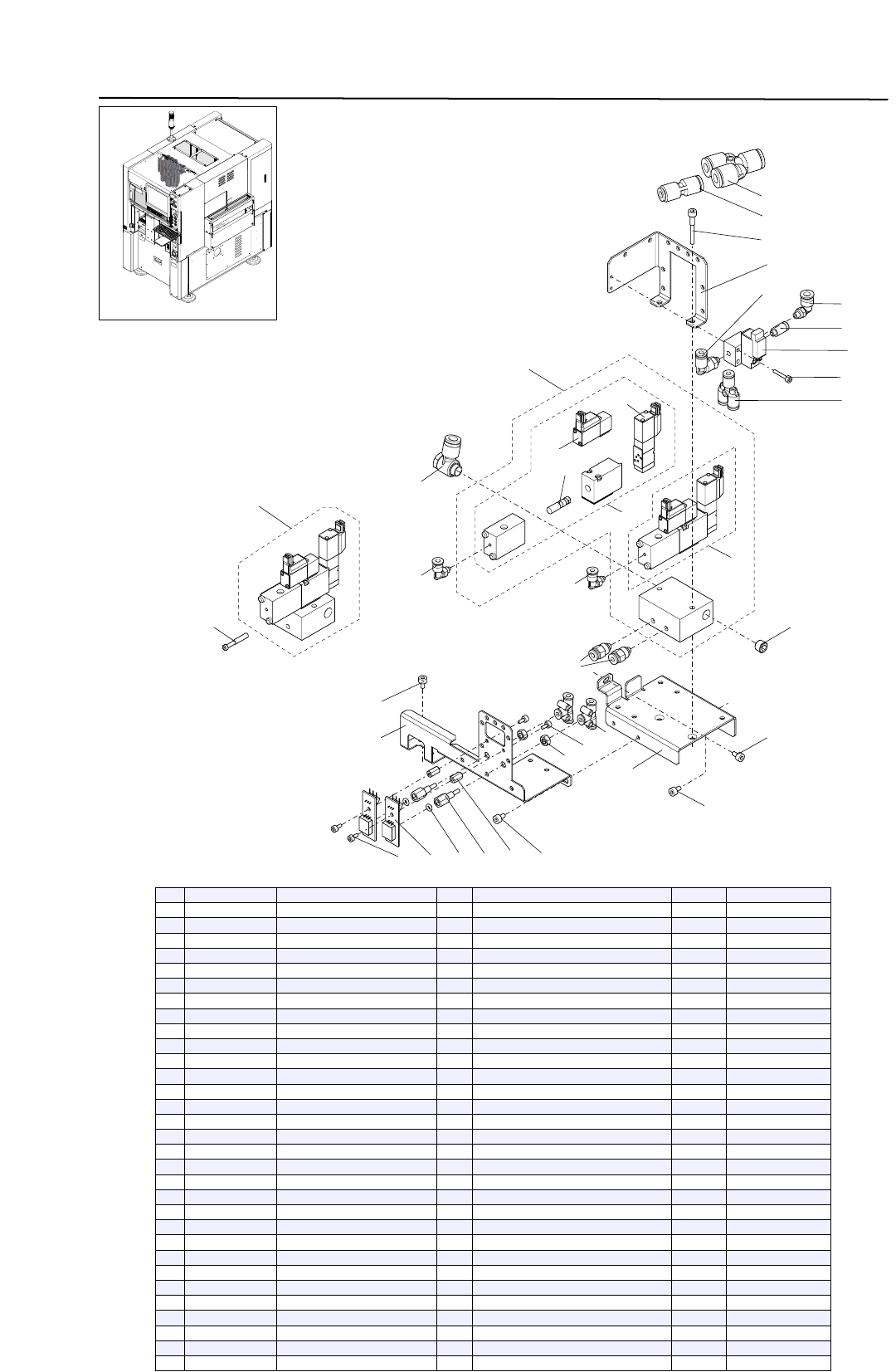

Vacuum Ejector

Head Section

KLM-1206

5-6

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

KLD-M7157-11

BRKT,HNS.

1

2

KLD-M7166-10

BKT.VALVE

1

3

KLD-M7167-01

BKT.CAMERA CABLE

1

4

KLD-M7182-00

EJECTOR

1

in case of "2 Heads Installation"

5

KLD-M7182-10

EJECTOR

1

in case of "1 Head Installation"

6

KGS-M7176-00

VALVE

1

7

KM1-M4592-13

VAC SENSOR BOARD ASSY

2

in case of "1 Head", [1] decreased

8

KV7-M8167-00

JOINT,VACUUM SENSOR

2

ditto

9

90200-10J030

O-RING

2

ditto

10

90562-13J100

SPACER

2

ditto

11

91312-03006

BOLT HEX,SOCKET HEAD

4

in case of "1 Head", [2] decreased

12

91312-03016

BOLT HEX,SOCKET HEAD

2

13

91312-04006

BOLT HEX,SOCKET HEAD

7

14

91312-04030

BOLT HEX,SOCKET HEAD

2

15

95302-05600

NUT HEXAGON

2

in case of "1 Head", [1] decreased

16

$KM-05

MUFFLER

1

17

$SL8-01

JOINT

1

18

$TL4-M3M

JOINT

2

in case of "1 Head", [1] decreased

19

$TL4-M5

JOINT

1

20

$TL6-M5M

JOINT

1

21

$TS4-M5

JOINT

2

22

$USD8-6

JOINT

1

23

$UT4M

JOINT

2

24

$UY4

JOINT

1

in case of "2 Heads", Air-Dividing-Joint

25

$UP4

JOINT

1

in case of "1 Head", Air-Stopping-Plug

26

$UYD10-8

JOINT

1

27

K40-M8598-00

PLUG 1

1

28

KJH-M7111-A0

EJECTOR

2

for Maintenance, Spare-Parts

29

KGA-M7111-H0

VALVE

2

ditto

30

KJH-M7111-G0

VALVE

2

ditto

31

KJH-M71G4-00

BIT

2

ditto
