YC8-KLM-000_PartsList.pdf - 第7页

16

25

16

12

2

14

3

14

5

9

40

36

37

39

32

33

29

34

30

35

38

31

12

13

17

7

4

24

14

20

19

18

20

19

23

27

11

19

9

24

27

9

17

18

19

6

28

7

4

8

5

21

15

26

19

10

15

20

22

8

26

14

1

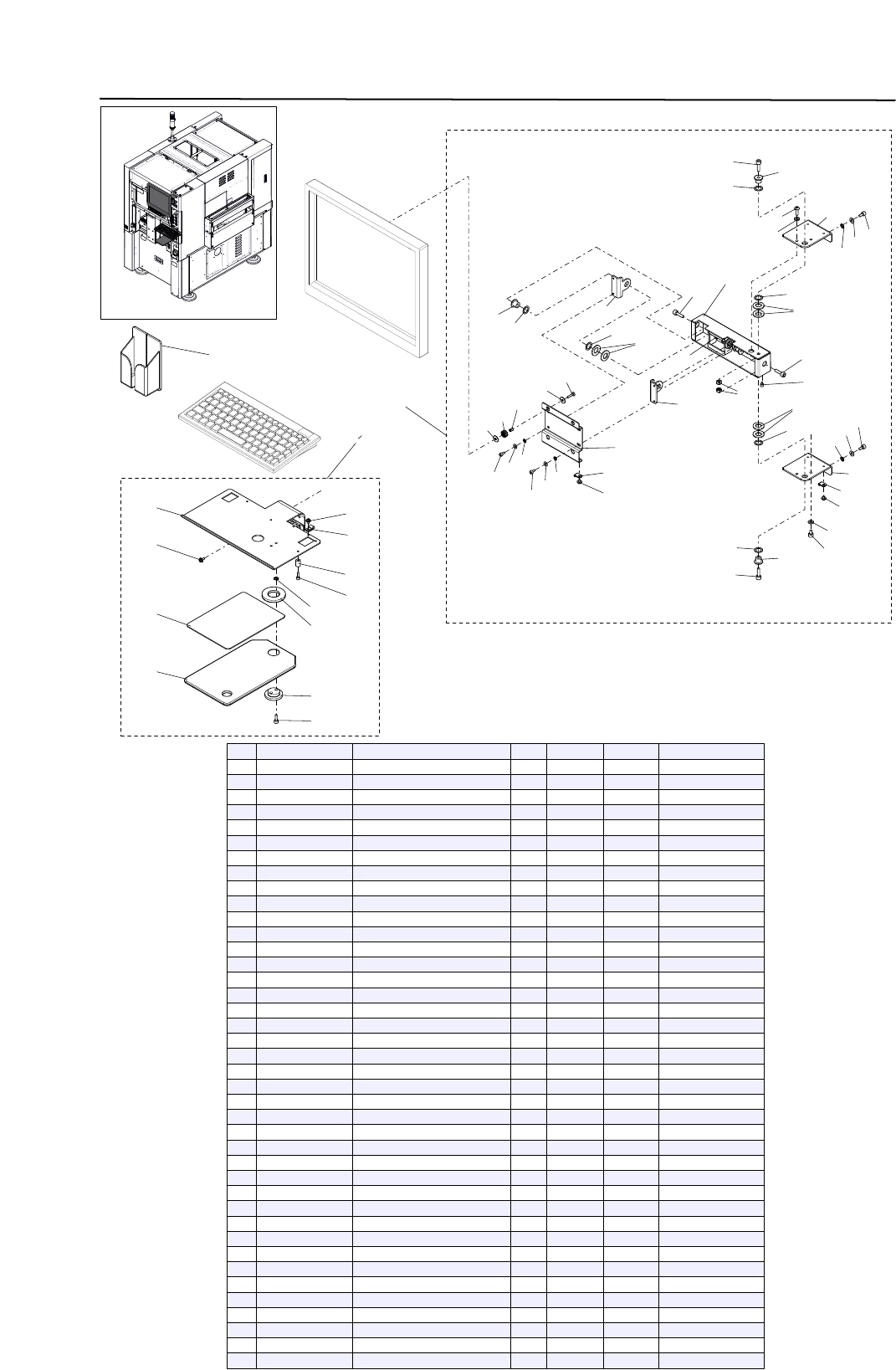

LCD Stay / Bracket Keyboard

Cover Section

KLM-1206

2-3

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

KLM-M1380-00

LCD STAY ASSY.

1

2

KLM-M13B1-A0

BRKT. KEYBOARD ASSY.

1

3

KGA-M13B5-00

MOUSE POCKET ASSY

1

4

$NK-2N

NYLON CLIP

5

90172-00J040

WASHER, EXTL, TOOTHED

4

6

90990-06J00

BOLT, BUTTON HEAD

1

7

90990-11J001

SCREW, PAN HEAD W/W

5

8

90990-28J141

WASHER,PLAIN

8

9

90990-37J001

WASHER, BELLEVILLE

8

10

90990-41J132

COLLAR

4

11

91312-04005

BOLT HEX,SOCKET HEAD

1

12

91312-05010

BOLT HEX,SOCKET HEAD

4

13

91312-06008

BOLT HEX,SOCKET HEAD

1

14

91312-06020

BOLT HEX,SOCKET HEAD

4

15

92902-04200

WASHER,PLAIN

4

16

92902-05200

WASHER,PLAIN

4

17

92902-06600

WASHER,PLAIN

2

18

KHW-M1383-00

BRACKET 2

2

19

KHW-M1385-00

SPACER

8

20

KHW-M1386-00

BUSH

4

21

KKE-M1384-00

BRACKET,LCD

1

22

KKE-M138A-00

DAMPER

4

23

KLM-M1381-00

BODY,STAND

1

24

KLM-M1382-00

BRACKET 1

2

25

90172-00J050

WASHER, EXTL, TOOTHED

4

26

91312-04008

BOLT HEX,SOCKET HEAD

4

27

95602-06100

NUT, U

4

28

98902-04016

SCREW BINDING HEAD

4

29

$NK-3N

NYLON CLIP

1

30

90990-11J003

SCREW, PAN HEAD W/W

1

31

90990-11J005

SCREW, PAN HEAD W/W

4

32

90990-41J007

COLLAR

1

33

90990-41J097

COLLAR

2

34

91312-04012

BOLT HEX,SOCKET HEAD

2

35

KG2-M1362-00

STOPPER

2

36

KGA-M13B2-01

SHAFT,KEYBOARD

1

37

KGA-M13B4-00

BRACKET, PAD

1

38

KGB-M1391-00

MOUSE PAD

1

39

KLM-M13B1-00

BRACKET,KEYBOARD

1

40

91312-05014

BOLT HEX,SOCKET HEAD

2

17

16

30

31

20

19

21

31

28

14

9

18

35

8

29

35

8

15

31

10

31

24

31

5

23

31

5

31

32

33

36

34

31

6

31

11

31

2

13

11

9

31

26

7

12

31

22

31

8

37

36

31

38

1

3

31

38

3

22

32

23

4

34

33

25

27

31

36

31

35

28

31

37

29

36

35

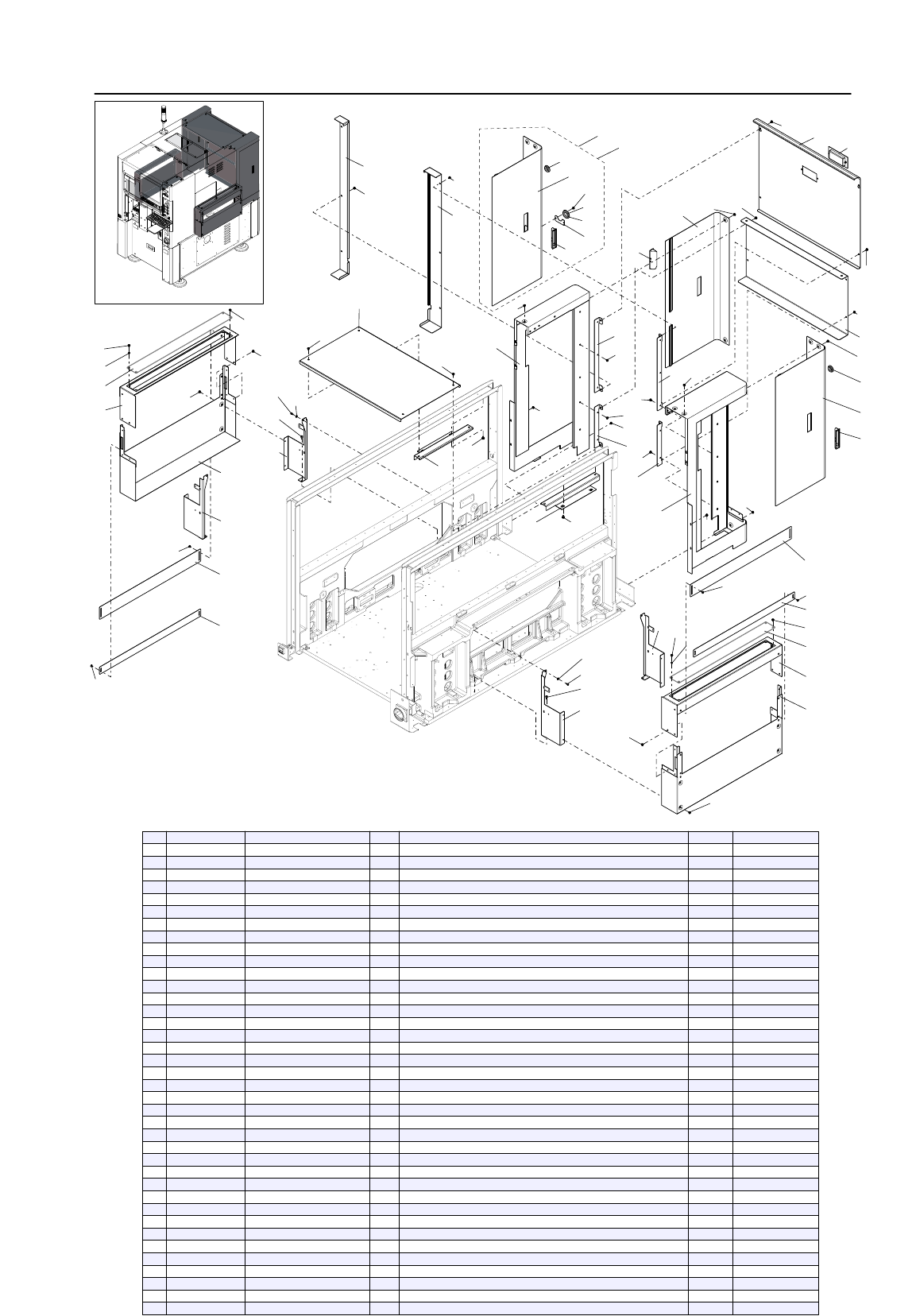

Upper Back Cover / Conveyor Cover

Cover Section

KLM-1206

2-4

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

KLM-M1303-00

COVER 3

1

2

KLM-M1304-00

COVER 4

1

3

KLM-M1318-00

BRACKET,COVER18

2

4

KLM-M1379-00

COVER BACK 2

1

5

KLM-M1317-00

BRACKET,COVER 16

2

6

KLM-M1316-00

COVER 16

1

in case of "ATS15" installed, deleted

7

KLM-M13A3-10

COVER 3-1B

1

in case of Front-only operation

8

KV7-M1372-00

HANDLE 1

2

9

KV7-M1391-10

PLUG

1

10

KLM-M13A4-00

COVER 4-1

1

11

KLM-M1385-00

BRKT., COVER BACK 3

2

12

KLM-M138A-00

COVER BACK 3

1

in case of "ATS15" installed, deleted

13

KHU-M1117-00

PULL

1

ditto

14

KLM-M1322-L0

COVER 22-L

1

in case of "ATS15" installed, it is set

15

KLM-M1322-R0

COVER 22-R

1

ditto

16

KLM-M13A3-A0

COVER 3-1A ASSY

1

in case of Front & Rear operation, with-out "IT-Option"

17

KLM-M13A3-B0

COVER 3-1A ASSY

1

in case of Front & Rear operation, with "IT-Option"

18

KLM-M13A3-00

COVER 3-1A

1

in case of Front & Rear operation

19

KGA-M1392-00

PLUG(φ30)

1

with-out "IT-Option"

20

KH1-M13A9-00

BUSH

1

with "IT-Option"

21

KGA-M1318-00

COVER 18

1

22

KLM-M1334-00

BRKT.1,GATE COVER

2

23

KLM-M1335-00

BRKT.2,GATE COVER

2

24

KLM-M1376-L0

COVER 76-L,CON.

1

25

KLM-M1376-R0

COVER 76-R,CON.

1

26

KLM-M1377-L0

COVER 77-L,CON.

1

27

KLM-M1377-R0

COVER 77-R,CON.

1

28

KHY-M1371-00

COVER 71,CON.

2

29

KLD-M1371-00

COVER 71,CON.

2

30

KLD-M1378-00

PLATE 78,CON.

2

31

90990-12J001

SCREW, BIN. HEAD W/W

58

in case of "ATS15" installed, [2] decreased / with "IT-Option", [2] added

32

91312-05010

BOLT HEX,SOCKET HEAD

4

33

91312-04008

BOLT HEX,SOCKET HEAD

4

34

92902-04200

WASHER,PLAIN

4

35

90990-46J006

BOLT, THIN HEAD

8

36

90990-12J006

SCREW, BIN. HEAD W/W

8

37

90990-41J134

COLLAR

4

38

90990-12J004

SCREW, BIN. HEAD W/W

4

1

2

13

30

10

23

7

18

9

32

28

33

34

8

24

25

29

15

14

6

27

20

8

5

22

11

31

16

12

19

12

21

35

4

26

6

3

17

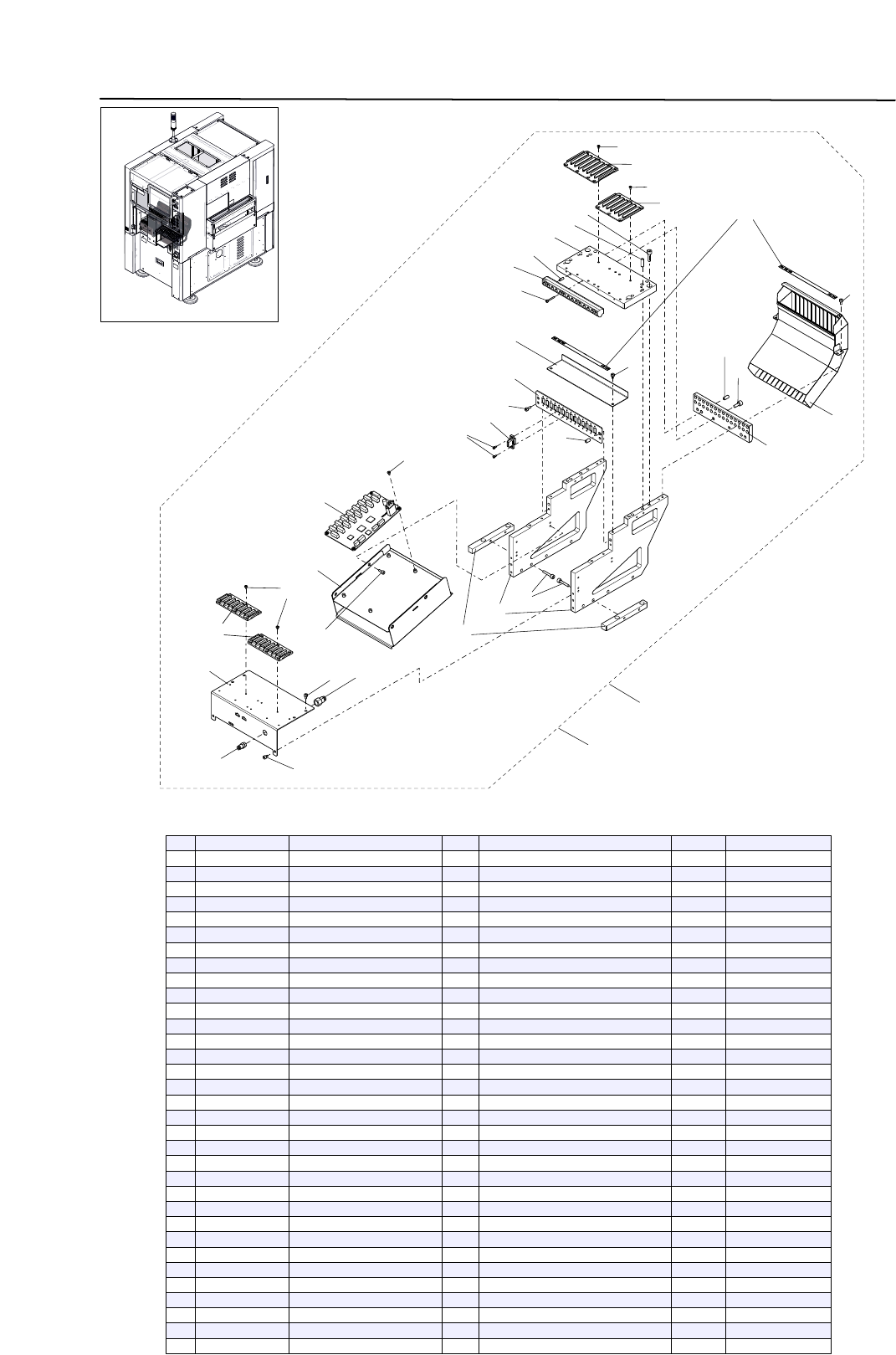

Feeder Holder 14 Lanes

Feeder Holder Section

3-1

KLM-1206

* in case of "Built-in-Left"

* in case of "Built-in-Right"

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

KLM-M3400-A0

FEEDER PLATE A14

1

in case of "Built-in-Left"

2

KLM-M3400-B0

FEEDER PLATE B14

1

in case of "Built-in-Right"

3

$TSS4-01

JOINT

1

4

$UKM4-01

JOINT

1

5

91312-03020

BOLT HEX,SOCKET HEAD

4

6

91312-04006

BOLT HEX,SOCKET HEAD

8

7

91312-04008

BOLT HEX,SOCKET HEAD

4

8

91312-04010

BOLT HEX,SOCKET HEAD

6

10

91312-06014

BOLT HEX,SOCKET HEAD

4

11

91312-06020

BOLT HEX,SOCKET HEAD

4

12

98702-03006

SCREW,FLAT HEAD

14

13

KHY-M3430-10

LABEL,FEEDER 60-12P

1

A0 : [1]<==>[14] / B0 : [15]<==>[28]

15

KHY-M66TE-00

HNS,F.CTRL - FDR.

14

16

KKG-M371R-00

RAIL GUIDE 12P

1

8 Lanes

17

KKG-M372R-00

GUIDE,FEEDER UNDER

2

18

KKT-M340C-00

PLATE,FRONT

1

19

KKT-M340E-00

RAIL GUIDE 12P

1

6 Lanes

20

KKT-M340G-00

SHAFT GUIDE

1

21

KKT-M4476-00

FDR.CTRL.BOARD ASSY

1

22

KLM-M3402-00

SLOPE,UNDER

2

23

KLM-M3T0E-00

TAPE GUIDE

1

24

98902-03004

SCREW BINDING HEAD

12

25

KLM-M3401-00

PLATE,FEEDER 12-14

1

26

98902-03006

SCREW BINDING HEAD

4

27

99480-04012

PIN,PARALLEL

1

28

KLM-M3404-00

STAND,FEEDER PLATE

2

29

99480-06012

PIN,PARALLEL

2

30

99480-06014

PIN,PARALLEL

1

31

99480-06020

PIN,PARALLEL

4

32

KLM-M3407-00

BASE,SIDE PLATE

2

33

KLM-M340H-00

COVER 2

1

34

KLM-M340J-00

PLATE,CONNECTOR

1

35

KLM-M340K-00

COVER 1

1
