YC8-KLM-000_PartsList.pdf - 第10页
28 41 24 12 30 7 13 22 27 13 14 23 13 3 7 1 14 14 31 29 25 13 4 21 39 40 6 26 16 33 34 20 37 10 38 18 9 19 10 35 7 36 10 42 8 2 32 5 9 15 11 17 7 X-axis Neighbor Moving-axis Section KLM-1206 4-2 NO Parts_No. Parts_Name Q…
33
27
34
11
31
28
3
32
17
30
8
16
15
20
4
20
24
29
25
1
2
7
6
21
31
3
6
21
9
22
26
6
14
26
26
6
36
6
7
23
25
24
36
29
6
13
12
18
15
35
19
27
11
5
10
X-axis Drive / Beam
Moving-axis Section
KLM-1206
4-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
12
2
90990-11J001
SCREW, PAN HEAD W/W
12
3
90990-11J003
SCREW, PAN HEAD W/W
6
4
90990-26J008
BEARING
1
5
90K63-511403
AC SERVO MOTOR
1
6
91312-04014
BOLT HEX,SOCKET HEAD
38
7
92012-04025
BOLT,BUTTON HEAD
4
8
91312-05014
BOLT HEX,SOCKET HEAD
4
9
91312-05018
BOLT HEX,SOCKET HEAD
4
10
91312-06018
BOLT HEX,SOCKET HEAD
4
11
91312-06025
BOLT HEX,SOCKET HEAD
8
12
KHN-M2221-00
SUPPORT UNIT
1
13
91317-04012
BOLT HEX,SOCKET HEAD
4
14
KLD-M2261-A0
HOLDER,HEAD R ASSY.
1
15
92A08-04304
SCREW SET
2
16
KG2-M9173-00
LOCK NUT
1
17
KGK-M2276-S0
X-AXIS GUIDE SET
1
18
KGS-M2628-00
LOCK NUT
1
19
KHN-M2241-00
HOLDER,MOTOR X
1
20
KHN-M2248-00
SPACER
2
21
90K81-200006
CAP M4
22
22
KLD-M2271-00
BALL SCREW
1
23
KHN-M224D-00
SPACER
1
24
KHN-M224J-00
COLLAR A
4
25
KHN-M224K-00
COLLAR B
4
26
KHN-M22F4-00
WASHER,SWR04
16
27
KHN-M22F6-00
WASHER,SWR06
8
28
KHY-M2240-00
SLEEVE,BRG.
1
29
KHY-M224H-00
DAMPER
2
30
KHY-M2282-00
DOG.ORIGIN
1
31
KHY-M2283-00
DOG,SECOND LIMIT
2
32
KLD-M220D-00
TAPE, X-AXIS
2
33
KLD-M2211-00
FRAME R, X AXIS
1
34
KLD-M2242-00
HOLDER,BRG.
1
35
KM0-M2220-00
COUPLING, X-AXIS
1
36
99480-06018
PIN,PARALLEL
2
28
41
24
12
30
7
13
22
27
13
14
23
13
3
7
1
14
14
31
29
25
13
4
21
39
40
6
26
16
33
34
20
37
10
38
18
9
19
10
35
7
36
10
42
8
2
32
5
9
15
11
17
7

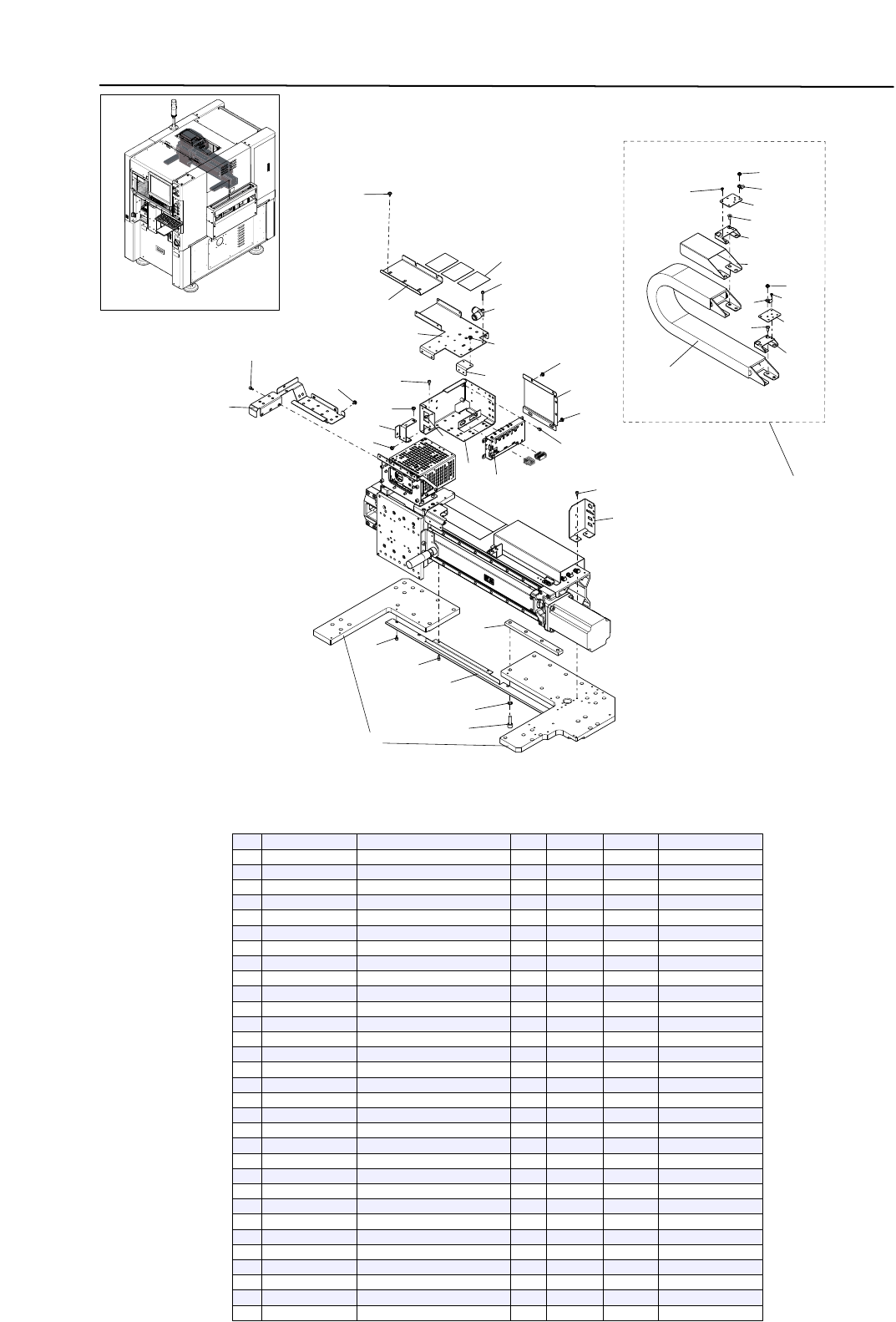

X-axis Neighbor
Moving-axis Section
KLM-1206
4-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KJX-M7192-00
HEAD I/O BOX
1
2
$NK-3N
NYLON CLIP
12
3
90563-03J160
SPACER
4
4
90990-01J037
BOLT HEX,SOCKET HEAD
6
5
90990-11J001
SCREW, PAN HEAD W/W
12
6
91312-04006
BOLT HEX,SOCKET HEAD
8
7
91312-04008
BOLT HEX,SOCKET HEAD
13
8
91312-05008
BOLT HEX,SOCKET HEAD
6
9
91312-05012
BOLT HEX,SOCKET HEAD
4
10
91312-05018
BOLT HEX,SOCKET HEAD
12
11
91312-06016
BOLT HEX,SOCKET HEAD
2
12
97602-03108
SCREW PAN HEAD W/WASHER
4
13
97602-03306
SCREW PAN HEAD W/WASHER
22
14
98702-03004
SCREW,FLAT HEAD
12
15
98902-04006
SCREW BINDING HEAD
4
16
99480-06018
PIN,PARALLEL
2
17
KGS-M2256-00
GRIP
1
18
KHN-M22F5-00
WASHER,SWR05
8
19
KHY-M2252-02
STOPPER
1
20
KHY-M2284-00
BRACKET,SENSOR
1
21
KHY-M652X-00
SENSOR,XT ASSY
1
22
KHY-M5890-40
HEAD SERVO BOARD ASSY
3
23
KJX-M457R-01
HEAD I/O1 BOARD ASSY
1
24
KJX-M457U-01
HEAD I/O2 BOARD ASSY
1
25
KJX-M457W-01
HEAD I/O3 BOARD ASSY
1
26
KJX-M7191-10
FRAME,I/O BOX
1
27
KJX-M7192-30
POST3
1
28
KJX-M7192-40
POST4
1
29
KJX-M7196-00
BRACKET,FAN
1
30
KJX-M719A-00
PLATE 2,GUIDE HARNESS
1
31
KLD-M220D-00
TAPE, X-AXIS
2
32
KLD-M2237-00
BRACKET,HEAD SERVO
1
33
KLD-M2238-00
BRACKET,L
1
34
KLD-M2239-00
BRACKET,R
1
35
KLD-M223F-00
STAY,R HNS.
1
36
KLD-M226B-00
COVER BACK, X AXIS
1
37
KLD-M227G-00
COVER,B.S.
1
38
KLD-M2291-00
PLATE,HEAD SERVO
1
39
KLD-M2A01-01
PLATE,HEAD
1
40
KHY-M652W-00
SENSOR,XORGASSY
1
41
KLD-M2A02-01
STAY,HANDLE
1
42
KV7-M7165-00
SEAL DON'T TOUCH
2
11
27
30
16
6
17
13
4
2
6
21
4
18
10
9
2
4
1
6
3
15
26
9
1
3
8
12
29
31
20
24
6
5
25
5
4
28
4
22
4
14
23
19
6
7
4
X-axis Peripheral
Moving-axis Section
KLM-1206
4-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
9
2
90990-01J032
BOLT HEX,SOCKET HEAD
8
3
90990-11J001
SCREW, PAN HEAD W/W
9
4
90990-12J001
SCREW, BIN. HEAD W/W
15
5
91312-04006
BOLT HEX,SOCKET HEAD
15
6
91312-04008
BOLT HEX,SOCKET HEAD
15
7
91312-04022
BOLT HEX,SOCKET HEAD
1
8
91312-08025
BOLT HEX,SOCKET HEAD
14
9
98902-03006
SCREW BINDING HEAD
4
10
KGT-M2266-10
PLATE, NUT
1
11
KHN-M220F-04
CAMERA SELECTOR
1
12
KHN-M22F8-00
WASHER,SWR08
14
13
KHY-M221A-A0
COVER,DUCT ASSY.
1
14
KHY-M2265-00
JOINT
1
15
KHY-M2266-00
PLATE,NUT
1
16
KHY-M2267-A0
GUIDE,X AXIS ASSY
1
17
KHY-M2268-00
BRACKET 1, TAPE
1
18
KHY-M2269-00
BRACKET 2,TAPE
1
19
KLD-M220E-00
TAPE, X-AXIS
3
20
KLD-M2213-S0
PLATE X AXIS SET
1
21
KLD-M223G-01
STAY,L HNS.
1
22
KLD-M2251-00
BRACKET,CONNECTOR
1
23
KLD-M2292-00
COVER,HEAD SERVO
1
24
KLD-M2294-01
STAY,DUCT 1
1
25
KLD-M2295-01
STAY,DUCT 2
1
26
KLD-M2298-00
COVER,R HNS
1
27
KLD-M2299-00
BRACKET,CABLE 1
1
28
KLD-M229A-00
BRACKET,CABLE 2
1
29
KLD-M22C5-00
COVER UNDER,X AXIS
1
30
KLD-M22E0-00
GUIDE CABLE ASSY
1
31
KV7-M2231-00
SPACER R,NUT
4
