Service Manual WPC5 / WPC6
4.1.5 Teaching the Load Axis Offset Point
You only need to teach the offset point if you have changed the zero point position (see "4.1.2
Teaching the Zero Point Position" [
➙
4-115]).
➢ Remove all waffle-pack tray carriers (WPTC) from the WPC.
➢ Select the lifting axis (1).
➢ Select the function (2).
➢ Select (3).
➢ Follow the instruction shown and continue with .
Service Manual WPC5 / WPC6
➢ Follow the instruction shown and continue with .
➢ Place the „Jig for WPC4-6 base plate“ [03073064-01] (or a WPTC) (1) on the sliding rail of
the load axis.
➢ Push the gauge into the tower (2).
➢ Make sure that the gauge can be moved along the sliding rail smoothly.
Service Manual WPC5 / WPC6

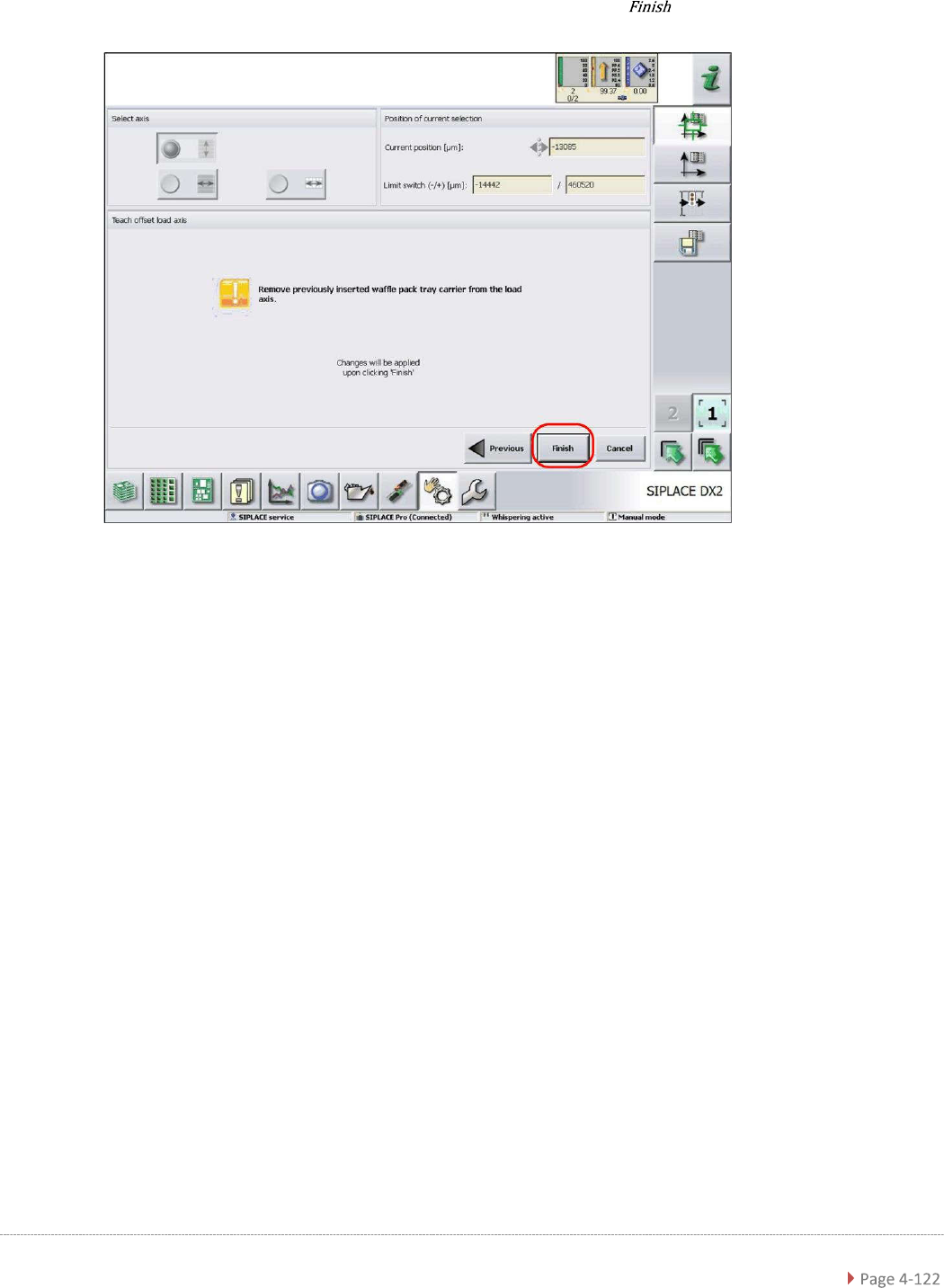

➢ Follow the instruction shown and confirm the changes made with .
