Service Ma nual W PC5 / WPC6 ➢ Confirm the n ew zero point posi tion with (1).
Service Manual WPC5 / WPC6
4.2.2 Teaching the Zero Point Position
The zero point position needs to be calibrated after the drive motor has been replaced.
➢ Remove all waffle-pack tray carriers (WPTC) from the WPC.
➢ Select the feed axis (1).
➢ Select the function (2).
➢
Select (3).
➢
Follow the instruction shown and continue with (1).
Service Manual WPC5 / WPC6
➢ Confirm the new zero point position with (1).
Service Manual WPC5 / WPC6

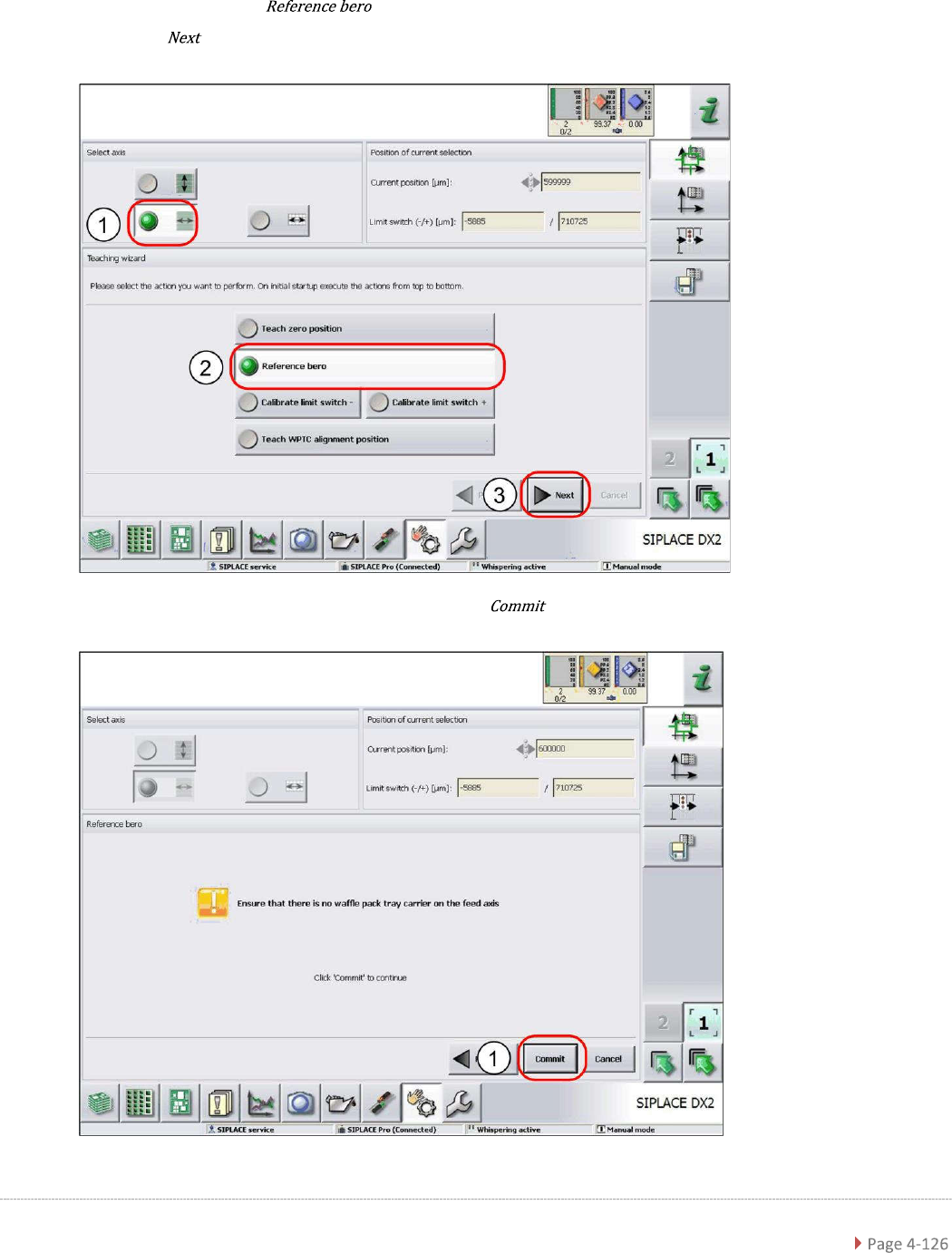

4.2.3 Reference Proximity Switch (Bero)
➢ Select the feed axis (1).
➢ Select the function (2).
➢ Select (3).
➢ Follow the instruction shown and continue with (1).
