Service Ma nual W PC5 / WPC6 4.2.5 Teaching the WPTC Transfer Position ➢ Select the feed ax is (1). ➢ Select the func tion (2). ➢ Select (3). ➢ Insert the calibration pin “ A djusting gauge small W PC ” [03052363 -02] on…
Service Manual WPC5 / WPC6
➢ Confirm the new position at which the limit switch triggers with (1).
Calibrating the limit switch +
➢ Select the feed axis (1).
➢ Select the function and continue with the same procedure as that
used for calibrating the limit switch.
Service Manual WPC5 / WPC6
4.2.5 Teaching the WPTC Transfer Position
➢ Select the feed axis (1).
➢ Select the function (2).
➢ Select (3).
➢
Insert the calibration pin “Adjusting gauge small WPC” [03052363-02] on the front end of the
feed axis (1).
“ ”
Service Manual WPC5 / WPC6

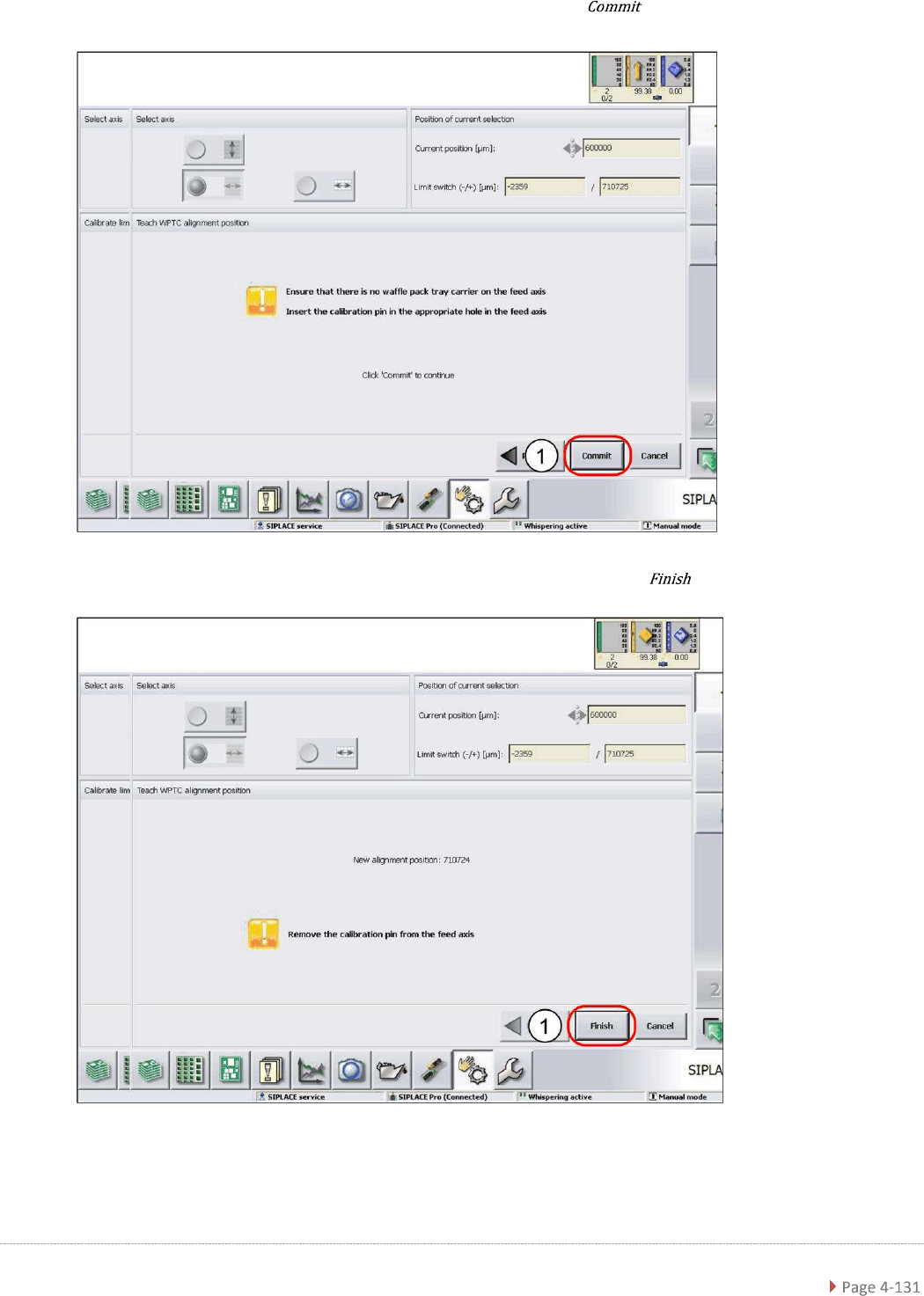

➢ Insert the calibration pin (see figure above) and continue with (1).
➢ Remove the calibration pin and confirm the new transfer position with (1).
