SIPLACE Software Guide Version 101.xx 3 Graphical user interface
Issue 05/03 EN 3.3 User interface - views and menus
39
Control mode... 3
The control mode determines how the station is supplied with the necessary placement data. 3
Æ Click the Control mode... menu item.
The "Control mode" dialog box is displayed.
3

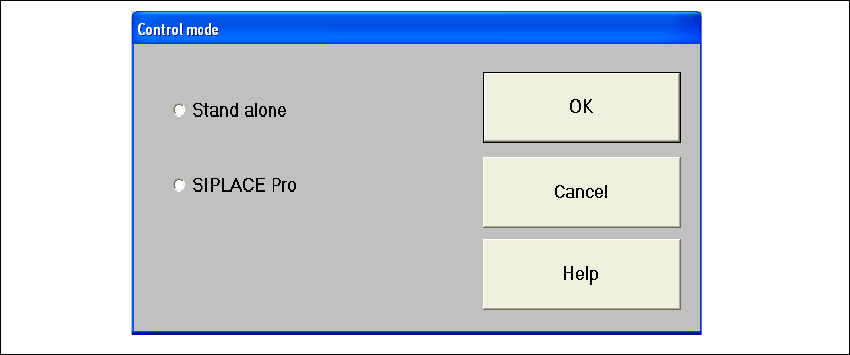

Fig. 3.3 - 8 "Control mode" dialog box
Control modes: 3
Stand Alone (for test purposes only)
This mode allows you to load a panel (placement program) for test and service purposes from the
station computer using the "New panel..." menu item.
The necessary data must be located on the station computer’s hard disk. The machine runs with-
out a higher-level computer (programming system). 3
3
SIPLACE Pro
Establishes the connection to the SIPLACE C Pro programming system. 3
3
Æ Activate the radio button for the required control mode.
Æ Click OK to make your settings active.
3 Graphical user interface SIPLACE Software Guide Version 101.xx
3.3 User interface - views and menus Issue 05/03 EN
40
New panel... 3
In "Stand alone" mode, you can load the data for a selected panel from the station computer’s hard
disk. 3
Æ Click the New panel... menu item. The following dialog appears:
3
Fig. 3.3 - 9 "Enter new panel" dialog box
Æ Now enter the name of the required panel in the displayed text box and click OK to confirm.
The panel data is now loaded.
NOTE
The data, including the fiducial and component package form data, of the last panel successfully
specified by SIPLACE C Pro, is now saved on the station computer’s hard disk under the panel
name "AKTUELL" and can be loaded by entering this name. 3
Software... 3
This menu item is used to activate the test commands (test functions) for checking a variety of
machine components. 3
NOTE
This menu item can only be called from the "Service" access level. 3
SIPLACE Software Guide Version 101.xx 3 Graphical user interface
Issue 05/03 EN 3.3 User interface - views and menus
41
WARNING
Settings for test commands and test command execution should be performed by service engi-
neers only. 3
Æ Click the Software... menu item.
The following window is opened.
3
Fig. 3.3 - 10 "Software options" dialog box (example: SIPLACE CS)
Æ Select the required gantry and activate/deactivate the test commands by clicking the corre-
sponding radio buttons.
Æ Click Close to set the software options.
NOTE
When the station is rebooted, the software options are reset to their original settings. 3
