4
Spectral Purity
All specifications apply at the lesser of +10 dBm output or maximum specified leveled
output power, unless otherwise noted.
Spurious Signals
Frequency Switching Time
Definitions
Free Running Mode:
(Step or List Sweep)
t
sw
= Switching Time, Unlocked
t
lk
= Locked Time = 1ms + t
dw
t
dw
= Dwell Time, after locking. Selectable, 1 ms minimum
t
lk
(min) = 2 ms
Single Frequency Trigger Mode:
(List, non-sequential, and CFx modes)
Switching Time (t
sw
)
Power Line and Fan Rotation Spurious Emissions (dBc):
Residual FM* (CW and Step Sweep modes, 50 Hz - 15 kHz BW) (typical):
Non-harmonics:
AM Noise Floor:
Typically < –145 dBm/Hz at 0 dBm output and offsets > 5 MHz from carrier.
Residual FM* (Analog Sweep and Unlocked FM modes, 50 Hz - 15 kHz BW) (typical):
* –30 dBc typical with high power Option 15
=
20 GHz to 21 GHz and 39 GHz to 40 GHz, –20 dBc typical (Option 15 only)
Harmonic and Harmonically-related:
t
sw
*
(ms)
Condition
5 ms + 1 ms/GHz step not starting at, or crossing dwell frequencies
7 ms + 1 ms/GHz (typical) step not starting at, or crossing band switching frequencies
8 ms + 1 ms/GHz (typical) step starting at, or crossing band switching frequencies
Frequency Range Standard
0.1 Hz to 10 MHz (Option 22) < –30 dBc
10 MHz to ≤ 100 MHz (Option 4)
< –40 dBc
> 100 MHz to ≤ 2.2 GHz (Option 4) < –50 dBc
10 MHz to ≤ 50 MHz (Option 5) < –30 dBc
> 50 MHz to < 2 GHz (Option 5) < –40 dBc
2 GHz (> 2.2 GHz w/Option 4) to ≤ 20 GHz < –60 dBc*
> 20 GHz to ≤ 40 GHz < –40 dBc*
=
> 40 GHz to ≤ 50 GHz (MG3695B) < –40 dBc*
> 40 GHz to ≤ 67 GHz (MG3696B) < –25 dBc
Frequency Range Standard
0.1 Hz to 10 MHz (Option 22) < –30 dBc
10 MHz to ≤ 2.2 GHz (Option 4) < –60 dBc
10 MHz to ≤ 2 GHz (Option 5) < –40 dBc
> 2 GHz (2.2 GHz w/Option 4) to ≤ 67 GHz < –60 dBc
Frequency 300 Hz
Offset from Carrier
300 Hz to 1 kHz > 1 kHz
10 MHz to ≤ 500 MHz (Option 4) < –68 < –72 < –72
> 500 MHz to ≤ 1050 MHz (Option 4) < –62 < –72 < –72
> 1050 MHz to ≤ 2200 MHz (Option 4) < –56 < –66 < –66
0.01 GHz to ≤ 8.4 GHz < –50 < –60 < –60
> 8.4 GHz to ≤ 20 GHz < –46 < –56 < –60
> 20 GHz to ≤ 40 GHz < –40 < –50 < –54
> 40 GHz to ≤ 67 GHz < –34 < –44 < –48
Frequency Range
Resid ual FM (Hz RMS)
Option 3/3X Standard
≤ 8.4 GHz < 40 < 120
> 8.4 GHz to 20 GHz < 40 < 220
> 20 GHz to ≤ 40 GHz < 80 < 440
> 40 GHz to ≤ 67 GHz < 160 < 880
Frequency Range
Resid ual FM (kHz RMS)
Unlocked Narrow
FM mode
Unlocked Wide
FM mode or
Analog Sweep (typ.)
0.01 GHz to ≤ 20 GHz < 10 < 25
> 20 GHz to ≤ 40 GHz < 20 < 50
> 40 GHz to ≤ 67 GHz < 40 < 100
Band Switching Dwell Frequencies: 2 (2.2 w/Opt. 4), 10, 20, 40 GHz
Filter Switching Dwell Frequencies: 3.3, 5.5, 8.4, 13.25, 25, 32 GHz
< 2.2 GHz w/Opt. 4: 12.5, 15.625, 22.5, 31.25, 43.75, 62.5, 87.5,
125, 175, 250, 350, 500, 700, 1050, 1500 MHz
*Not applicable with FM mode active
*Residual FM is not applicable with FM locked mode
55
Single-Sideband Phase Noise (dBc/Hz): (Typical)
Frequency Range
10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz
0.1 Hz to <10 MHz (Option 22) –80 (–100) –90 (–110) –120 (–125) –130 (–139) –130 (–141) –130 (–141)
10 MHz to 15.625 MHz (Option 4) –102 (–113) –128 (–133) –142 (–149) –145 (–152) –145 (–153) –145 (–153)
>15.625 Mhz to 31.25 MHz (Option 4) –97 (–109) –125 (–130) –142 (–147) –144 (–149) –144 (–153) –145 (–155)
>31.25 MHz to 62.5 MHz (Option 4) –92 (–104) –122 (–128) –140 (–146) –142 (–146) –143 (–150) –145 (–155)
>62.5 MHz to 125 MHz (Option 4) –87 (–98) –114 (–118) –133 (–139) –130 (–140) –130 (–143) –145 (–155)
>125 MHz to 250 MHz (Option 4) –82 (–93) –108 (–113) –126 (–134) –124 (–134) –124 (–138) –145 (–153)
>250 MHz to 500 MHz (Option 4) –75 (–87) –102 (–109) –120 (–128) –118 (–127) –118 (–130) –143 (–149)
>500 MHz to 1050 MHz (Option 4) –70 (–80) –94 (–100) –115 (–123) –115 (–122) –116 (–126) –138 (–144)
>1050 MHz to 2200 MHz (Option 4) –65 (–74) –86 (–96) –113 (–117) –111 (–116) –114 (–120) –133 (–139)
10 MHz to <2000 MHz (Option 5) –62 (–72) –85 (–95) –100 (–104) –102 (–106) –102 (–106) –111 (–114)
2 GHz to 6 GHz –54 (–64) –81 (–88) –102 (–109) –103 (–110) –106 (–114) –128 (–133)
>6 GHz to 10 GHz –52 (–62) –75 (–85) –98 (–106) –104 (–109) –106 (–113) –126 (–132)
>10 GHz to 20 GHz –45 (–55) –69 (–78) –92 (–101) –98 (–103) –98 (–106) –124 (–131)
>20 GHz to 40 GHz –38 (–48) –62 (–72) –86 (–94) –92 (–100) –92 (–100) –118 (–124)
>40 GHz to 67 GHz –32 (–42) –56 (–66) –80 (–88) –87 (–94) –82 (–91) –112 (–118)
Single-Sideband Phase Noise (dBc/Hz) - Option 3: (Typical)
Frequency Range
10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz
0.1 Hz to <10 MHz (Option 22) –80 (–100) –90 (–110) –120 (–125) –130 (–139) –130 (–141) –130 (–141)
10 MHz to 15.625 MHz (Option 4) –102 (–120) –128 (–140) –142 (–150) –145 (–152) –148 (–153) –148 (–152)
>15.625 Mhz to 31.25 MHz (Option 4) –97 (–108) –123 (–128) –141 (–149) –145 (–153) –148 (–153) –148 (–155)
>31.25 MHz to 62.5 MHz (Option 4) –92 (–109) –118 (–131) –139 (–146) –145 (–153) –148 (–153) –148 (–156)
>62.5 MHz to 125 MHz (Option 4) –87 (–98) –113 (–118) –134 (–139) –142 (–147) –143 (–148) –148 (–155)
>125 MHz to 250 MHz (Option 4) –82 (–93) –108 (–113) –129 (–134) –138 (–143) –137 (–142) –148 (–153)
>250 MHz to 500 MHz (Option 4) –77 (–91) –102 (–114) –124 (–130) –132 (–137) –128 (–137) –144 (–153)
>500 MHz to 1050 MHz (Option 4) –72 (–83) –98 (–103) –119 (–123) –126 (–132) –122 (–132) –139 (–150)
>1050 MHz to 2200 MHz (Option 4) –63 (–77) –92 (–101) –113 (–119) –121 (–126) –117 (–125) –134 (–146)
10 MHz to <2000 MHz (Option 5) –62 (–72) –85 (–95) –100 (–104) –102 (–106) –102 (–106) –111 (–114)
2 GHz to 6 GHz –54 (–77) –82 (–93) –106 (–111) –115 (–119) –112 (–119) –138 (–142)
>6 GHz to 10 GHz –52 (–73) –75 (–88) –102 (–109) –113 (–119) –115 (–120) –134 (–140)
>10 GHz to 20 GHz –45 (–66) –69 (–82) –97 (–105) –109 (–115) –109 (–115) –130 (–137)
>20 GHz to 40 GHz –38 (–59) –62 (–75) –90 (–98) –104 (–108) –103 (–109) –122 (–131)
>40 GHz to 67 GHz –32 (–51) –56 (–68) –84 (–91) –97 (–103) –97 (–103) –118 (–125)
Single-Sideband Phase Noise*
* Phase noise is specified and guaranteed only with internal reference. In External Reference mode, the phase noise of the external supplied reference, and the selected external reference bandwidth,
will dictate the instrument phase noise performance. Phase noise is not degraded when adding high power Option 15.
Single-Sideband Phase Noise (dBc/Hz) - Option 3X: (Typical)
Frequency Range
Offset from Carrier
1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz
0.1 Hz to <10 MHz (Option 22) –60 (–70) –80 (–100) –90 (–110) –120 (–125) –130 (–139) –130 (–141) –130 (–141)
10 MHz to 15.625 MHz (Option 4) –89 (–103) –111 (–128) –135 (–141) –142 (–150) –145 (–152) –148 (–153) –148 (–152)
>15.625 MHz to 31.25 MHz (Option 4) –85 (–96) –107 (–123) –130 (–137) –141 (–149) –145 (–153) –148 (–153) –148 (–155)
>31.25 MHz to 62.5 MHz (Option 4) –80 (–90) –101 (–118) –124 (–133) –139 (–146) –145 (–153) –148 (–153) –148 (–156)
>62.5 MHz to 125 MHz (Option 4) –74 (–86) –96 (–111) –117 (–127) –134 (–139) –142 (–147) –143 (–148) –148 (–155)
>125 MHz to 250 MHz (Option 4) –68 (–81) –92 (–104) –111 (–121) –129 (–134) –138 (–143) –137 (–142) –148 (–153)
>250 MHz to 500 MHz (Option 4) –62 (–76) –88 (–98) –105 (–115) –124 (–130) –132 (–137) –128 (–137) –144 (–153)
>500 MHz to 1050 MHz (Option 4) –56 (–69) –79 (–92) –99 (–109) –119 (–123) –126 (–132) –122 (–132) –139 (–150)
>1050 MHz to 2200 MHz (Option 4) –49 (–62) –71 (–87) –93 (–103) –113 (–119) –121 (–126) –117 (–125) –134 (–146)
10 MHz to <2000 MHz (Option 5) –38 (–45) –68 (–78) –85 (–95) –100 (–104) –102 (–106) –102 (–106) –111 (–114)
2 GHz to 6 GHz –41 (–52) –65 (–77) –81 (–94) –106 (–111) –115 (–119) –112 (–119) –138 (–142)
>6 GHz to 10 GHz –34 (–46) –62 (–77) –83 (–91) –102 (–109) –113 (–119) –115 (–120) –134 (–140)
>10 GHz to 20 GHz –29 (–42) –59 (–72) –77 (–85) –97 (–105) –109 (–115) –109 (–115) –130 (–137)
>20 GHz to 40 GHz –23 (–36) –53 (–65) –70 (–79) –90 (–98) –104 (–108) –103 (–109) –122 (–131)
>40 GHz to 67 GHz –17 (–30) –47 (–59) –64 (–73) –84 (–91) –97 (–103) –97 (–103) –118 (–125)
6
RF Output
Power level specifications apply at 25 ± 10 ºC.
Maximum Leveled Output Power***:
* ≤ 2.2 GHz with Option 4
** > 2.2 GHz with Option 4
*** For output power with Option 22, 0.1 Hz to 10 MHz coverage, derate all specifications by 2 dB
**** Typical 60 GHz to 67 GHz
Model Number Configuration
Frequency Range
(GHz)
Output Power
(dBm)
Output Power With Step
Attenuator (dBm)
Output Power With Electronic
Step Attenuator (dBm)
MG3691C
w/opt 4 or 5
STD
< 2 GHz*
≥ 2 GHz** to ≤ 10 GHz
+19.0
+19.0
+18.0
+18.0
+15.0
+13.0
MG3692C
w/opt 4 or 5
STD
STD
< 2 GHz*
≥ 2 GHz** to ≤ 10 GHz
> 10 GHz to ≤ 20 GHz
+19.0
+19.0
+17.0
+18.0
+18.0
+15.0
Not Available
MG3693C
w/opt 4 or 5
STD
STD
STD
< 2 GHz*
≥ 2 GHz** to ≤ 10 GHz
> 10 GHz to ≤ 20 GHz
> 20 GHz to ≤ 31.8 GHz
+15.0
+15.0
+12.0
+9.0
+14.0
+14.0
+10.0
+6.0
Not Available
MG3694C
w/opt 4 or 5
STD
STD
STD
< 2 GHz*
≥ 2 GHz** to ≤ 10 GHz
> 10 GHz to ≤ 20 GHz
> 20 GHz to ≤ 40 GHz
+15.0
+15.0
+12.0
+9.0
+14.0
+14.0
+10.0
+6.0
Not Available
MG3695C
w/opt 4 or 5
STD
STD
STD
< 2 GHz*
≥ 2 GHz** to ≤ 20 GHz
> 20 GHz to ≤ 40 GHz
> 40 GHz to ≤ 50 GHz
+12.0
+10.0
+6.0
+3.0
+10.0
+8.0
+3.0
+0.0
Not Available
MG3697C
w/opt 4 or 5
STD
STD
STD
< 2 GHz*
≥ 2 GHz** to ≤ 20 GHz
> 20 GHz to ≤ 40 GHz
> 40 GHz to ≤ 67 GHz
+12.0
+10.0
+6.0
+3.0
+10.0
+8.0
+3.0
+0.0****
Not Available

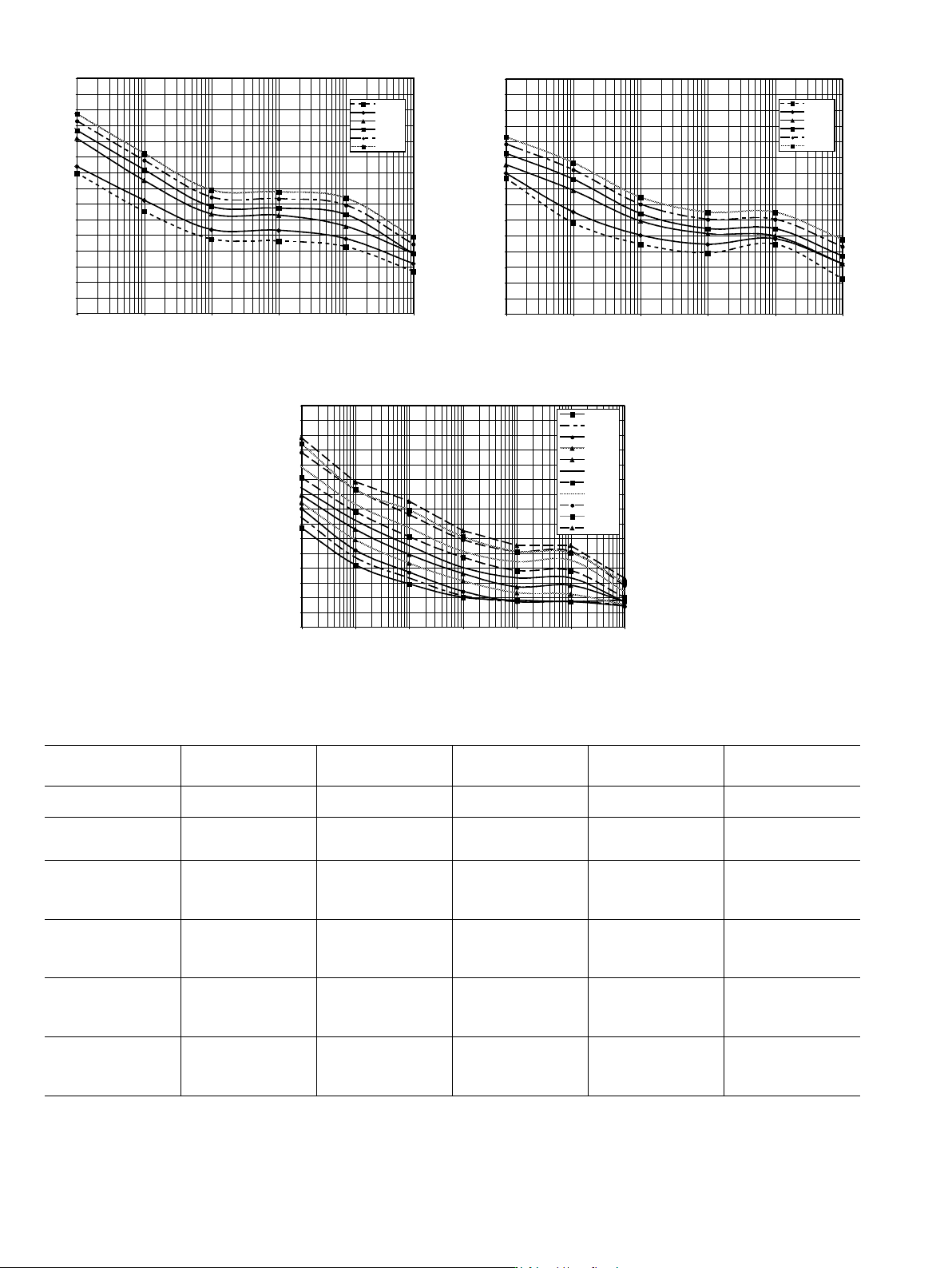

Measured SSB Phase Noise MG3690C with Options 3 & 4
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
10 100 1000 10000 100000 1000000
Offset (Hz)
L(f) (dBc/Hz)
1 GHz
2 GHz
10 GHz
20 GHz
40 GHz
67 GHz
Measured SSB Phase Noise MG3690C with Option 4
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
10 100 1000 10000 100000 1000000
Offset (Hz)
1 GHz
2 GHz
10 GHz
20 GHz
40 GHz
67 GHz
L(f) (dBc/Hz)
-170
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
1 10 100 1000 10000 100000 1000000
15 MHz
30 MHz
60 MHz
120 MHz
250 MHz
500 MHz
1 GHz
2 GHz
6 GHz
10 GHz
20 GHz
Measured SSB Phase Noise
MG3690C with Options 3X and 4
Offset (Hz)
L(f) (dBc/Hz)
