Installation Manual, Station Software Version 505.04 SP2 Edition 11/2007
25 of 154
→ Enter the unique machine ID. You find the ID on the serial number plate mounted to the
machine.
→ Click the Next button.
Applications for the placement station

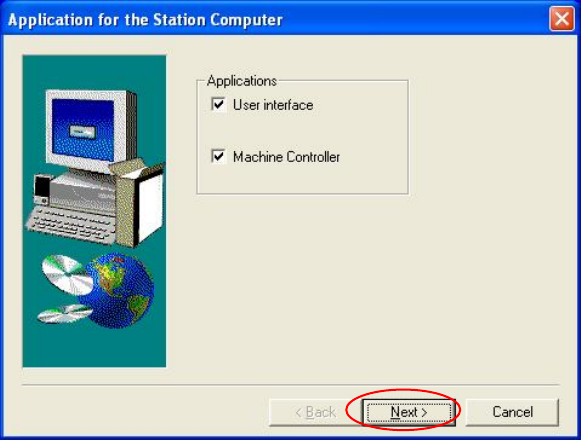

Fig. 4-9: Application selection
→ Here you can select the program packages that you wish to install.
→ Click the Next button.
Installation Manual Station Software Version 505.04 SP2
26 of 154
Machine types

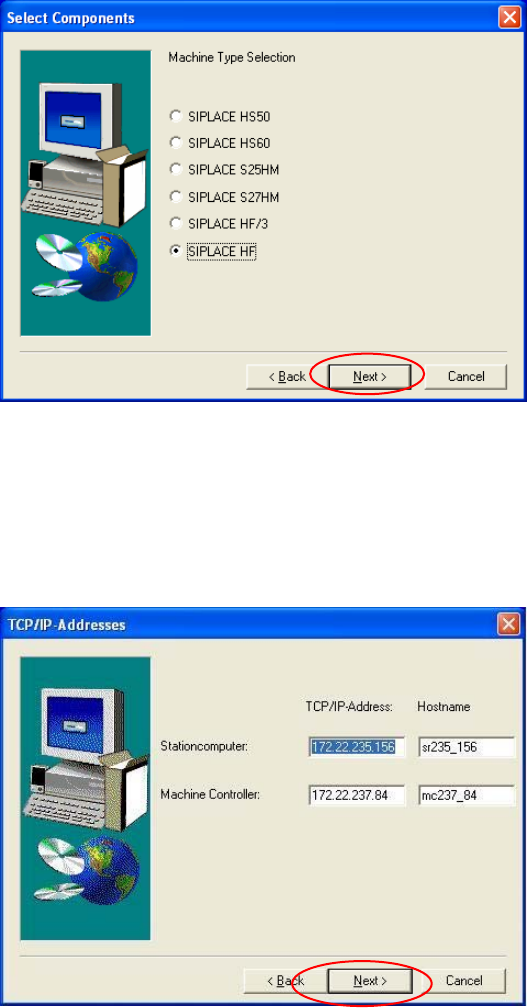

Fig. 4-10: Application selection
→ Select the SIPLACE machine type.
→ Click the Next button.
TCP/IP addresses
Fig. 4-11: TCP/IP addresses
→ Enter the IP addresses of the computers in your SIPLACE placement station.
→ The default IP addresses for your placement machine can be found on the stickers on the
station computer.
→ Click the Next button.
Installation Manual, Station Software Version 505.04 SP2 Edition 11/2007
27 of 154
Whispering down the line
→ If you intend to use the Whispering Down the Line option, you must enter the IP addresses
and the host names of the upstream and downstream stations:
Fig. 4-12: TCP/IP addresses for "Whispering Down the Line"
Note:
When assigning names for the hosts, you must take the following rules into account:
At the beginning of the host name, a vg should stand for the upstream
station and an nf for the downstream station.
Example: TCP/IP address Hostname
Station computer upstream station: 172.22.235.155 vg235_155
Station computer downstream station: 172.22.235.157 nf235_157
Note:
Always enter the SIPLACE LAN addresses
of the stations for the IP addresses.
→ Click the Next button.
