Retrofit instructions Splice Detection Basic Package + Table Controller SIPLACE HF-series
08/2005 Edition
25
2.3 Special safety instruction
2
DANGER
The securing or connection of the white ground wire has to be done before switching on the pla-
cement machine! 2
2
2.3.1 Description of symbols
2
2
2
Tip 2
2
2
2
Caution 2
2
2
2.4 Tools
– Set of Allen keys
– Diagonal cutter
– Phillips screwdriver
– Small slotted-head screwdriver
2.5 Parts list
Content of splice detection retrofit kit for changeover table HF
(part no.: 00119642-01) 2
Qty Designation Part no.:
- 1 SDS SIPLACE HF Table Controller Unit 03006500-01
- 1 SDS SIPLACE HF Table Ctrl. Power Cable 03006409-01
Retrofit instructions Splice Detection Basic Package + Table Controller SIPLACE HF-series
08/2005 Edition
26
2.6 Preparation
First familiarize yourself with the new hardware components to be installed, as shown in
Fig. 5 - 1. 2
2

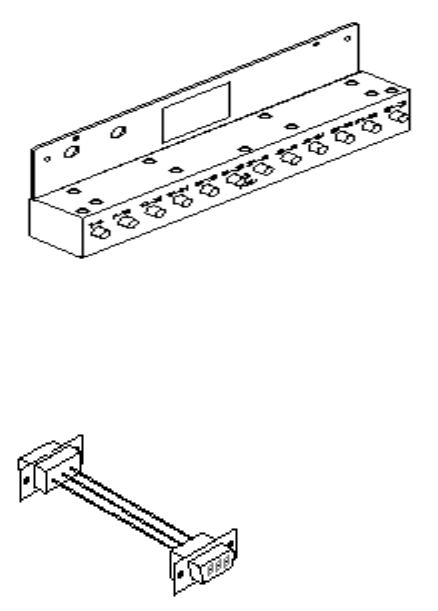

Abb. 2.10 - 1 Retrofit kit "Splice detection for HF changeover table"
2
HF table controller (TC)
Part no.: 03006500-01
Adapter for power supply
Part no.: 03006409-01
Retrofit instructions Splice Detection Basic Package + Table Controller SIPLACE HF-series
08/2005 Edition
27
2.7 Installation
: Remove the communication interface by loosening the screws that fix the device to the chan-
geover table (Fig. 6 - 1), and unplugging the power and communication cables at the back.
2
Abb. 2.10 - 1 HF changeover table with communication interface
2
2
2
2
