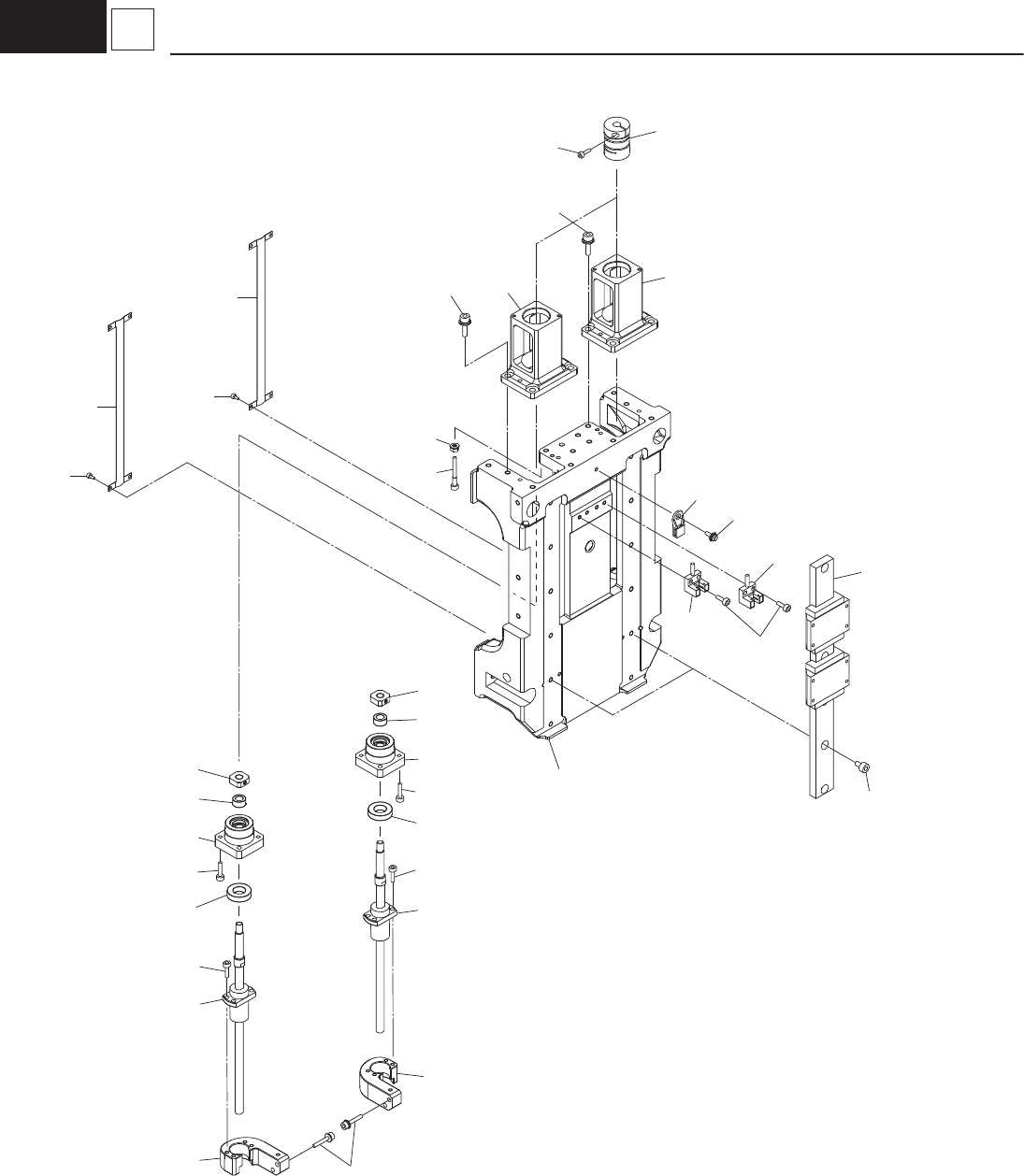

– 6 – J1 3 Base Section 1303-001 212 212 210 213 210 2 11 230 2 11 213 218 219 216 213 221 223 236 223 236 232 233 231 204 213 230 226 226 228 226 216 228 209 234 205 201 207 202 255 224 235 209
– 5 –
MULTI-FUNCTIONAL HEAD
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
121 KYB-M7116-00 1011DA26 COUPLING 2
128 92902-03200 221HA103 WASHER,PLAIN 24 FW3
134 KYB-M710A-00 10113C0F ASSY_T-HEAD_NO1 1
135 KYB-M710C-00 10113C0K ASSY_T-HEAD_NO2 1
136 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 18 M3L12
137 91312-03016 221AA010 BOLT,HEX.SOCKET HEAD 4 M3L16
143 KYB-M7120-00 1011DA11 MOTOR_AC-SERVO 2
144 KYB-M711T-00 1011DA0K BLOCK 2
145 KYB-M7124-00 1011DA1U GUIDE 2
146 KYB-M711V-00 1011DA0N SPACER 2
147 KYB-M7123-00 1011DA1P SPRING 2
148 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 4 M2.5L10
149 91317-03008 221AA202 BOLT,HEX.SOCKET HEAD 6 M3L8
150 KYB-M7125-00 1011DA1V SLEEVE 2
151 92907-03200 221HA290 WASHER,PLAIN 6 FW3B
152 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 1 M3L14
1303-001
– 7 –
MULTI-FUNCTIONAL HEAD
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M7106-00 1011DA1W BASE_MULTI 1
202 KYB-M711Y-00 1011DA10 GUIDE_LINEAR 2
204 KYB-M7116-00 1011DA26 COUPLING 2
205 KYB-M710M-00 10113C08 ASSY-LIMIT-SENSOR-1L 1
207 KYB-M710N-00 10113C0B ASSY-LIMIT-SENSOR-2L 1
209 KYB-M710V-00 1011DA0G BLOCK 2
210 KYB-M713F-00 222F0094 BEARING_UNIT 2
211 KYB-M711R-00 1011DA0H COLLAR 2
212 KYB-M711S-00 1011DA0J COLLAR 2
213 KYB-M710U-00 1011DA0C BALL_SCREW 2
216 KYB-M711U-00 1011DA0M SHEET 2
218 KYB-M711W-00 1011DA0Q BLOCK 2
219 KYB-M711X-00 1011DA0R BLOCK 2
221 90112-2AJ008 221AA002 BOLT,HEX.SOCKET HEAD 4 M2.5L8
223 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 4 M4L14
224 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4 M3L8
225 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 12 M4L6
226 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 8 M3L10
228 90112-02J004 221AA121 ROHS_HEX-SCT 8 M2L4
230 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 8 M3L12
231 91312-03025 221AA012 BOLT,HEX.SOCKET HEAD 2 M3L25
232 95302-03600 221FA005 NUT_HEX 2 M3
233 92902-03200 221HA103 WASHER,PLAIN 2 FW3
234 KYB-M65AW-00 23N30632 WIRING 1
235 90990-11J010 221DA056 SCREW,PAN HEAD WW 1 PAN M3L8 SW+FW
236 92902-04200 221HA104 WASHER 4 FW4
237 KYB-M656C-00 0916D209 ACCESS-WIRING 1
