– 16 – J2 J2 MUL TI-FUNCTIONAL NOZZLE STOCKER 1 Base Section 1303-001 See Fig. J2-2 Key No.1 13 10 7 12 13 3 9 4 5 8 11 21 23 21 22 16 18 15 18 14 17 19

100%1 / 32
– 15 –
MULTI-FUNCTIONAL HEAD
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
601
KYB-M850N-00
1011DA2J TUBE_D8 1
602 KYB-M919J-00 1011DA2K TUBE_D6 1
611 KYB-M7113-00 10113A1L ASSY_AIR MANIFOLD_2N 1
612 KYB-M711L-00 1005AB0R PIPE_FITTINGS 1
613 KYB-M3725-00 1005AB0Q PIPE_FITTINGS 4
614 KYB-M711K-00 1005AB0N PIPE_FITTINGS 2
615 KYB-M710K-00 0921A05B AIR_LINE_EQPT 2
1303-001
– 16 –

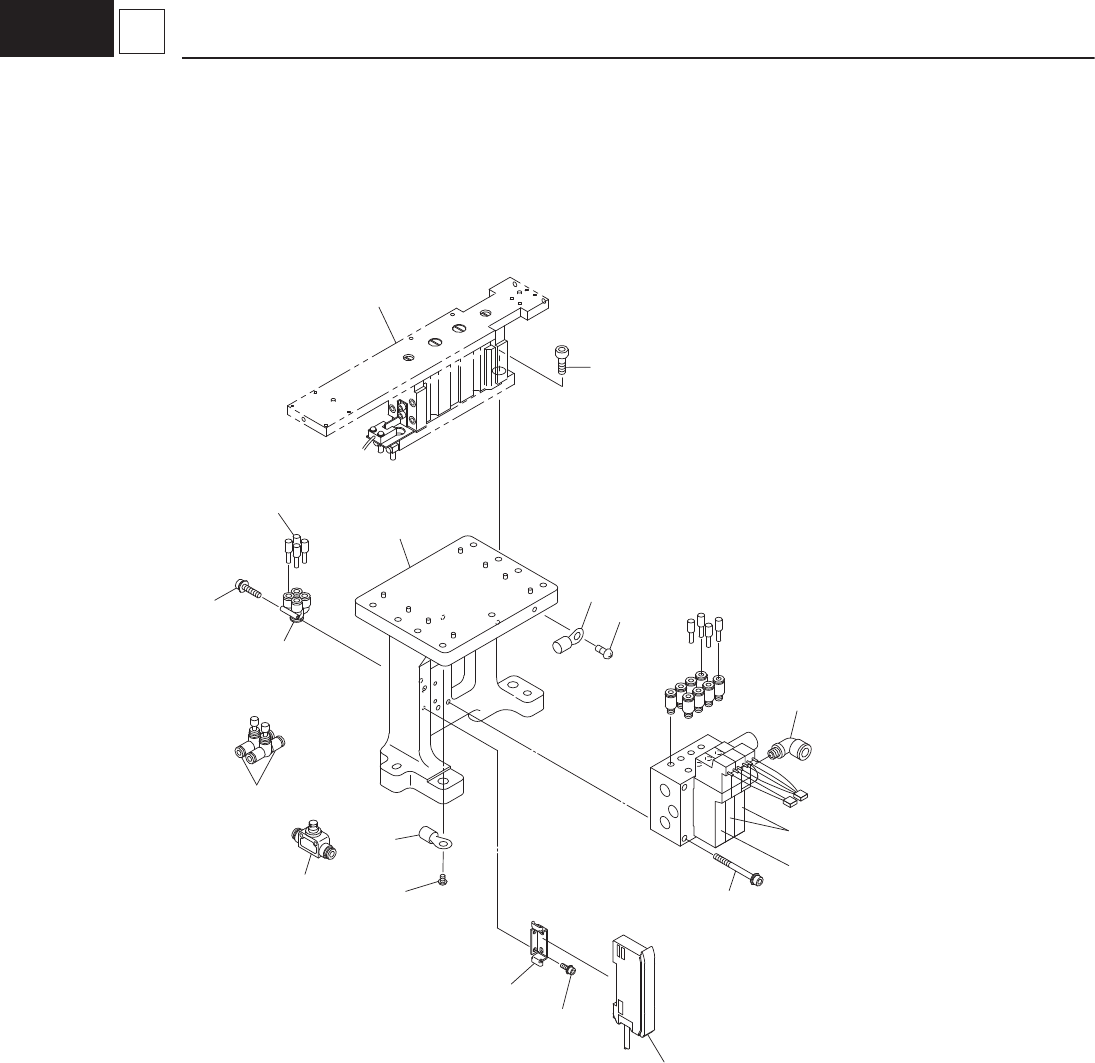

J2
J2 MULTI-FUNCTIONAL NOZZLE STOCKER
1 Base Section
1303-001
See Fig. J2-2
Key No.113
10
7
12
13
3
9
4
5
8
11
21
23
21
22
16
18
15
18
14
17
19
– 17 –
MULTI-FUNCTIONAL NOZZLE STOCKER
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
3 KYB-M960W-00 10138H15 ASSY-NST-EXT-VALVE 1
4 KYB-M960V-00 10138H14 ASSY-STOCKER-VALVE 1
5 KYB-M960X-00 10138M06 ASSY-NM-FLOAT-SENSOR 1
7 $JNMU6 225B0085 JOINT 1
8 KYA-M961L-00 225B0502 AIR LINE EQPT 1
9 KYB-M963L-00 225B0393 AIR_LINE_EQPT 1
10 $AS1001F-04 225B0251 AIR LINE EQPT 2
11 KYB-M962P-00 225F0713 PIPE_FITTINGS 4
12 KYB-M9603-00 0919I00E CAST_BASE 1
13 KYC-M184S-00 23G00207 SENSOR_PELEC 1
14 91312-05016 221AA031 ROHS_HEX-SCT 2 M5L16
15 91312-04040 221AA025 BOLT,HEX.SOCKET HEAD 2 M4L40
16 90990-01J133 221AA023 BOLT,HEX.SOCKET HEAD 1 M4L30
17 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
18 92902-04200 221HA104 WASHER 3 FW4
19 92902-03200 221HA103 WASHER,PLAIN 2 FW3
21 KYB-M65AW-00 23N30632 WIRING 3
22 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 1 M5L6
23 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 2 M4L6
1303-001
