– 12 –
J1
6 Solenoid Valve, Vaccum Sensor
1303-001
556
555
542
553
550
554
543
551
551
565
544
551
544
544
544
545
549
574
581
564
573
See Fig. J1-4
Key No.312
– 13 –
MULTI-FUNCTIONAL HEAD
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
542 KYB-M7121-00 1011DA15 BLOCK 1
543 KYB-M712J-00 211F9488 BRACKET 1
544 90990-01J138 221AA099 BOLT,HEX.S/H WW 8 M3L6 SW+FW
545 90990-01J147 221AA103 BOLT,HEX.S/H WW 2 M4L14 SW+FW
549 KYB-M710P-00 10113C0E ASSY-VALVE 1
550 KYB-M710J-00 0916D70N BRACKET 1
551 90990-01J139 221AA092 BOLT,HEX.S/H WW 9 M3L8 SW+FW
552 KYB-M7117-00 1011DA2A COVER 1
553 KYB-M711G-00 0916D70P BRACKET 1
554 KYB-M711F-00 0916D70M BRACKET 1
555 KYB-M712L-00 211H0398 SHEET 1
556 KYB-M712K-00 211H0361 SHEET 1
557 KYB-M711J-00 1005AB0B PIPE_FITTINGS 1
564 KYB-M65AW-00 23N30632 WIRING 2
565 90990-11J009 221DA051 MACHINE SCREW 2 PAN M3L6 SW+FW
573 KYB-M7119-00 1011DG02 HNS,MFHEAD ROBOT 1
574 KYB-M656C-00 0916D209 ACCESS-WIRING 13
575 KYB-M410K-00 0916D60A ACCESSORY-WIRING 2
1303-001

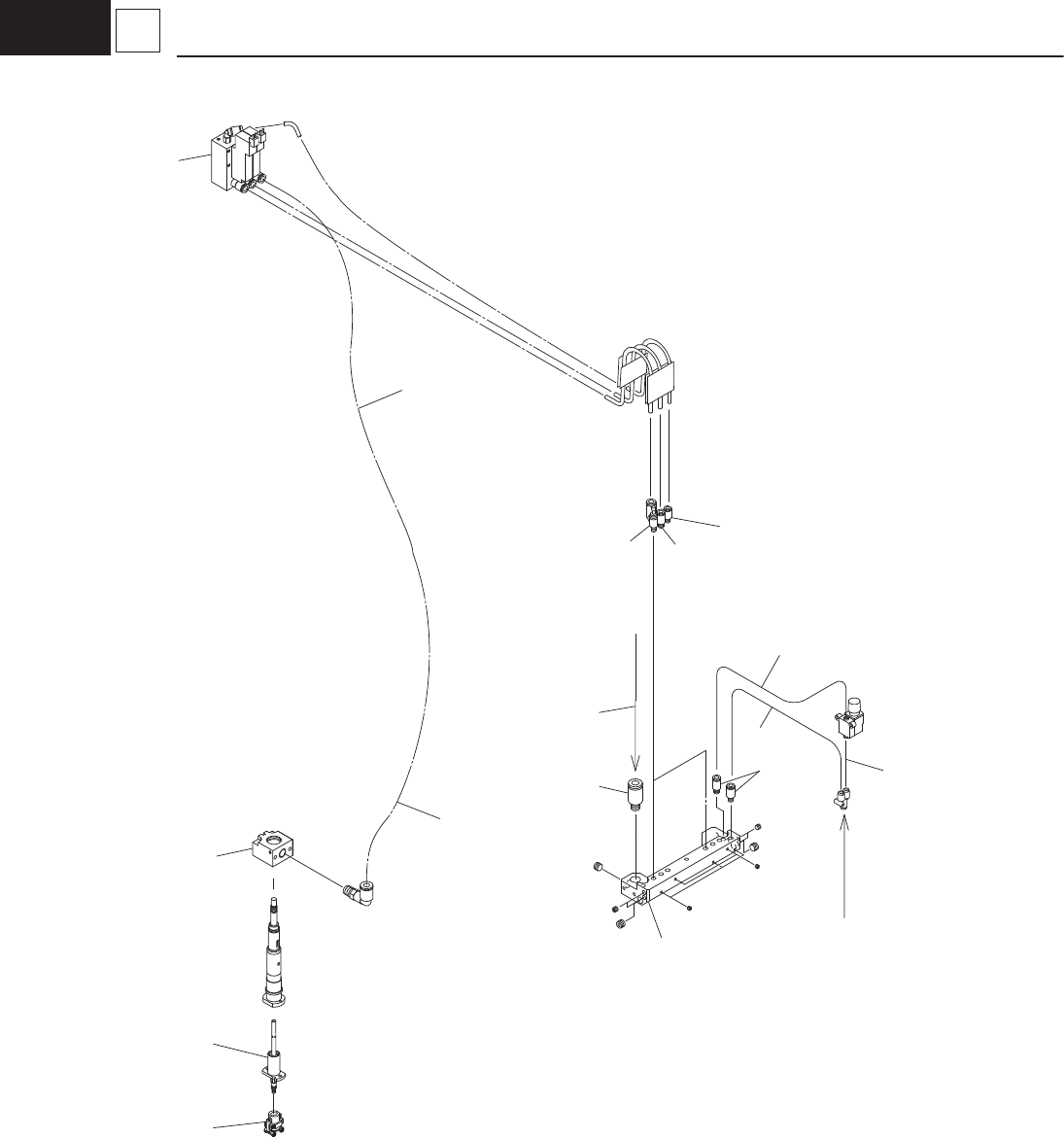

– 14 –
J1
7 Air Piping
1303-001
602
602
615
613
614
612
611
601
602
From Main Body
From Main Body
See Fig. J1-4
Key No.312
See Fig. J1-4
Key No.377
See Fig. J1-5
Key No.478
601
613
602
See Fig. J1-6
Key No.549
