– 22 – J2 4 Air Piping 1303-001 From Main Body 302 301 See Fig. J2-2 Key No.1 13 See Fig. J2-2 Key No. 1 15 See Fig. J2-1 Key No.4 See Fig. J2-1 Key No.3 302 See Fig. J2-1 Key No.10 See Fig. J2-1 Key No.7

– 21 –

MULTI-FUNCTIONAL NOZZLE STOCKER

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

201 KYB-M960E-00 211G3953 BLOCK 1

202 KYB-M9612-00 211A9884 COVER 1

203 KYB-M9613-00 211A9885 COVER 1

204 KYB-M962G-00 216S2747 LEVER 1

205 KYB-M962H-00 216S2748 LEVER 1

206 KYB-M961B-00 216S2749 LEVER 1

207 KYB-M961C-00 216S2750 LEVER 1

208 KYB-M962A-00 216D0479 PIN_HINGE 2

209 KYB-M962C-00 216D0481 PIN_HINGE 2

210 KYB-M962N-00 222N1362 SPRING_TENSION 2

211 KYB-M9622-00 211G3836 BLOCK 4

212 KYB-M9623-00 211G4129 BLOCK 1

213 90933-01J693 222D0259 BEARING,RADIAL 2

214 KYB-M962T-00 215B0117 BUSH_LINEAR 4

215 90440-01J020 221KA002 ROHS_RING 2 E RING 2

216 KYB-M961F-00 6P460154 NAME_PLATE 1

217 KYB-M961K-00 216D0528 PIN_SPRING 2

218 95302-03700 221FA006 NUT_HEX 2 M3

219 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 6 M3L8

220 92902-03100 221HA003 WASHER,SPRING 8 SW3

221 92902-03200 221HA103 WASHER,PLAIN 8 FW3

222 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 4 M3L6

223 90112-02J006 221AA001 BOLT,HEX.SOCKET HEAD 4 M2L6

224 90990-38J003 221HA001 WASHER 4 SW2

225 90990-28J192 221HA201 WASHER 4 FWS2

226 90990-02J020 221C0001 SET SCREW 4 SET M3L4

1303-001

– 22 –

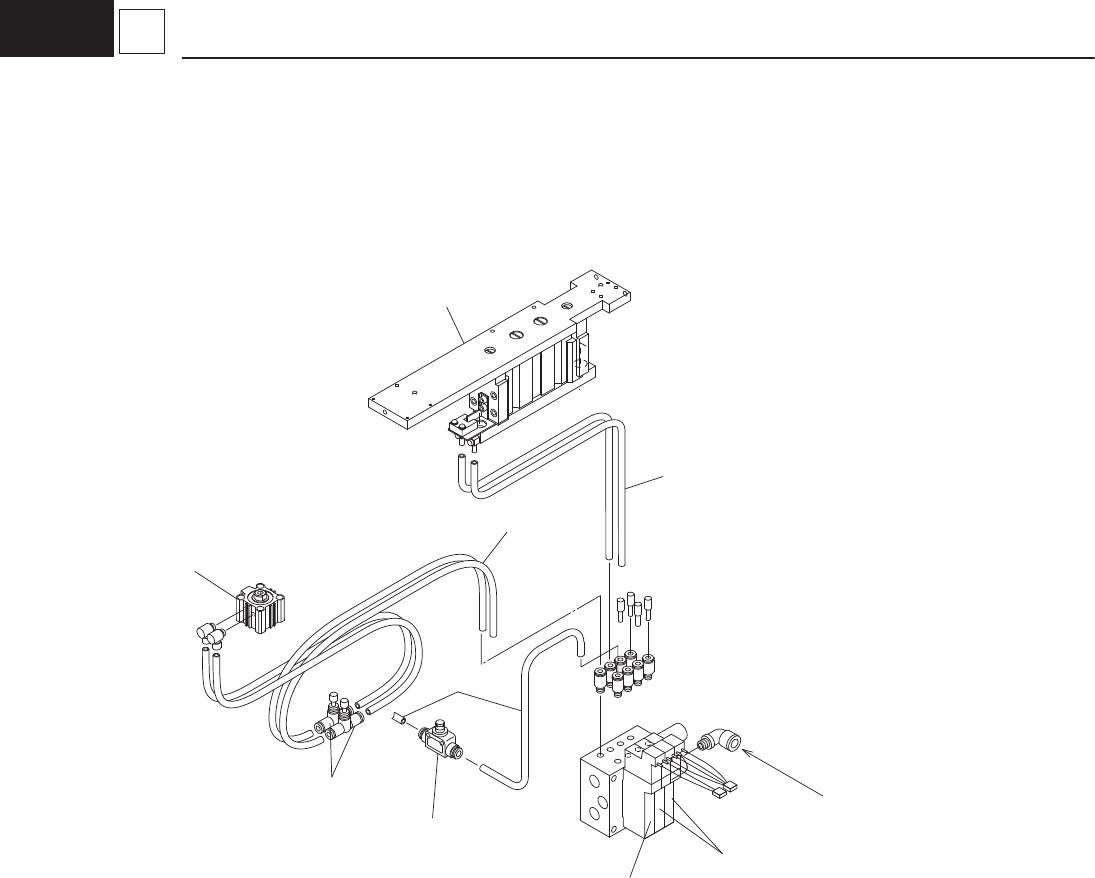

4 Air Piping

1303-001

From Main Body

302

301

See Fig. J2-2

Key No.113

See Fig. J2-2

Key No.

115

See Fig. J2-1

Key No.4

See Fig. J2-1

Key No.3

302

See Fig. J2-1

Key No.10

See Fig. J2-1

Key No.7

– 23 –

MULTI-FUNCTIONAL NOZZLE STOCKER

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

301 KYB-M961J-00 0919I30A TUBE 1

302 KYB-M961G-00 0919I00J TUBE D6 1

1303-001
