– 8 – J1 4 Z Axis Driving Section 1303-001 377-05 377-03 377 377-02 377-01 377-04 302 301 315 362-02 362-05 362-04 362-03 362-01 360 363 314 312 310 309 323(1Z) 323(2Z) 322 320 333 334 361 361 339 358 360 334 336 A A 332…
– 7 –
MULTI-FUNCTIONAL HEAD
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M7106-00 1011DA1W BASE_MULTI 1
202 KYB-M711Y-00 1011DA10 GUIDE_LINEAR 2
204 KYB-M7116-00 1011DA26 COUPLING 2
205 KYB-M710M-00 10113C08 ASSY-LIMIT-SENSOR-1L 1
207 KYB-M710N-00 10113C0B ASSY-LIMIT-SENSOR-2L 1
209 KYB-M710V-00 1011DA0G BLOCK 2
210 KYB-M713F-00 222F0094 BEARING_UNIT 2
211 KYB-M711R-00 1011DA0H COLLAR 2
212 KYB-M711S-00 1011DA0J COLLAR 2
213 KYB-M710U-00 1011DA0C BALL_SCREW 2
216 KYB-M711U-00 1011DA0M SHEET 2
218 KYB-M711W-00 1011DA0Q BLOCK 2
219 KYB-M711X-00 1011DA0R BLOCK 2
221 90112-2AJ008 221AA002 BOLT,HEX.SOCKET HEAD 4 M2.5L8
223 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 4 M4L14
224 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4 M3L8
225 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 12 M4L6
226 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 8 M3L10
228 90112-02J004 221AA121 ROHS_HEX-SCT 8 M2L4
230 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 8 M3L12
231 91312-03025 221AA012 BOLT,HEX.SOCKET HEAD 2 M3L25
232 95302-03600 221FA005 NUT_HEX 2 M3
233 92902-03200 221HA103 WASHER,PLAIN 2 FW3
234 KYB-M65AW-00 23N30632 WIRING 1
235 90990-11J010 221DA056 SCREW,PAN HEAD WW 1 PAN M3L8 SW+FW
236 92902-04200 221HA104 WASHER 4 FW4
237 KYB-M656C-00 0916D209 ACCESS-WIRING 1
1303-001
– 8 –

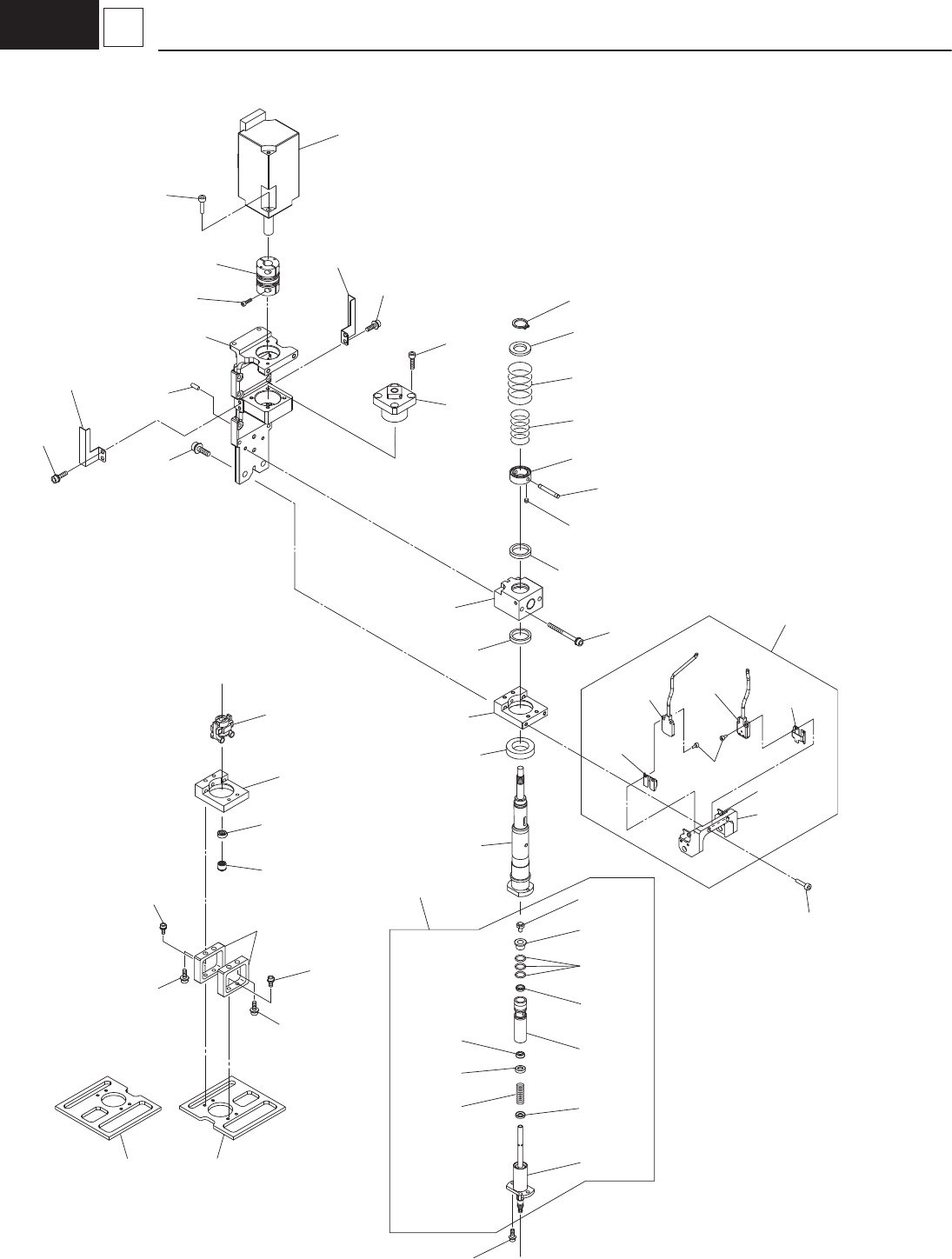

J1
4 Z Axis Driving Section
1303-001
377-05
377-03
377
377-02
377-01
377-04
302
301
315
362-02
362-05
362-04
362-03
362-01
360
363
314
312
310
309
323(1Z)
323(2Z)
322
320
333
334
361
361
339
358
360
334
336
A
A
332
332
337
335
338
337
335
346
347
338
319
313
311
377-09
377-09
377-06
377-08
327
328
328
326
330
321
315
318(1Z)318(2Z)
317
362
Fig. J1-5
Fig. J1-5
370
362-03
362-02
377-07
– 9 –
MULTI-FUNCTIONAL HEAD
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi 1Z 2Z
301 KYB-M710E-00 1011DA14 FRAME 1 1
302 KYB-M710G-00 0916D70H SHAFT 1 1
309 KYB-M712P-00 216A1658 COLLAR 1 1
310 KYB-M712R-00 216A1659 COLLAR 1 1
311 KYB-M7133-00 222M1351 SPRING_COMP 1 1
312 KYB-M712B-00 1011DA29 BLOCK 1 1
313 KYB-M7135-00 222M1407 SPRING_COMP 1 1
314 KYB-M712W-00 216E1682 PIN_LOCATE 1 1
315 KYB-M7111-00 1011DA1B BLOCK 1 1
317 KYB-M712H-00 211F9020 BRACKET 2 2
318 KYB-M712F-00 1011DA2E PLATE 1
318 KYB-M712G-00 1011DA2F PLATE 1
319 KYB-M7126-00 1011DA1X MOTOR_AC-SERVO 1 1
320 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 2 2 M2.5L10
321 KYB-M7116-00 1011DA26 COUPLING 1 1
322 KYB-M713F-00 222F0094 BEARING_UNIT 1 1
323 KYB-M7129-00 1011DA27 BRACKET 1
323 KYB-M712A-00 1011DA28 BRACKET 1
326 99009-11400 1011DA19 CIRCLIP 1 1 RING C 11
327 KYB-M713E-00 222D0411 BEARING_RADIAL 2 2
328 KYB-M713G-00 226A0107 SEAL 1 1
330 KYB-M7136-00 216E1513 PIN_LOCATE 1 1
332 90990-01J140 221AA095 BOLT,HEX.S/H WW 4 4 M3L10 SW+FW
333 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 4 4 M3L10
334 90112-2AJ008 221AA002 BOLT,HEX.SOCKET HEAD 4 4 M2.5L8
335 90990-38J004 221HA002 WASHER,SPRING 4 4 SW2.5
336 90990-28J191 221HA202 WASHER,PLAIN 2 2 FWS2.5
337 90112-2AJ006 221AA145 BOLT,HEX.SOCKET HEAD 4 4 M2.5L6
338 90171-02J2A6 221HA102 WASHER,PLAIN 4 4 FW2.5
339 90990-02J020 221CA001 SCREW,SET 2 2 SET M3L4
346 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 2 2 M4L14
347 92902-04200 221HA104 WASHER 2 2 FW4
358 91312-03035 221AA014 BOLT,HEX.SOCKET HEAD 2 2 M3L35
360 92902-03200 221HA103 WASHER,PLAIN 4 4 FW3
361 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 2 M3L6
362 KYB-M710S-00 10113C0M ASSY_SENSOR 1 1
362-01 KYB-M7110-00 1011DA17 BRACKET 1 1
362-02 KYB-M710T-00 10113C0N ASSY-HEIGHT-SENSOR 1 1
362-03 KYB-M712C-00 1011DA2B SLIT 2 2
362-04 90112-02J004 221AA121 ROHS_HEX-SCT 4 4
362-05 KYB-M656C-00 0916D209 ACCESS-WIRING 2 2
363 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 2 2 M3L12
370 KYB-M7131-00 221G0110 NUT 1 1
377 KYB-M710B-00 10113C0G ASSY_NOZZLE_SHAFT 1 1
377-01 KYB-M712T-00 216C0773 ROD 1 1
377-02 KYB-M7130-00 217A0139 CAP 1 1
377-03 KYB-M712V-00 216E1512 PIN_LOCATE 1 1
377-04 KYB-M712N-00 216A1200 COLLAR 1 1
377-05 KYB-M712M-00 216A1199 COLLAR 1 1
377-06 KYB-M7134-00 222M1352 SPRING_COMP 1 1
377-07 KYB-M711A-00 215B0120 BUSH_LINEAR 1 1
377-08 KYB-M713J-00 226A0212 SEAL 3 3
377-09 KYB-M711D-00 226A0086 SEAL 2 2
1303-001
