SMT Software Eng ineering Group IM Operations Y AMAHA MOTOR CO., L TD. MDOC-SOFT50069 11/24 [Original Data] Mount i nformation of [Lane 1 Board] is s elected] Mount i nformation of [Lane 2 Board] is s elected]
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
10/24
(3)[Lane] column is added on [Mount] information.
It shows which lane each mount data.on YGX(Combined) board data, when mount information
for each lane is opened, [Mount] column is filtered by selected lane.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
11/24
[Original Data]
Mount information of [Lane 1 Board] is selected]
Mount information of [Lane 2 Board] is selected]
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
12/24
(4)Edit single combined program.
On single combined program, mount information of each lane is same because each lane
mounts on same board. So mount information of all lane are changed if its of one lane is
changed.

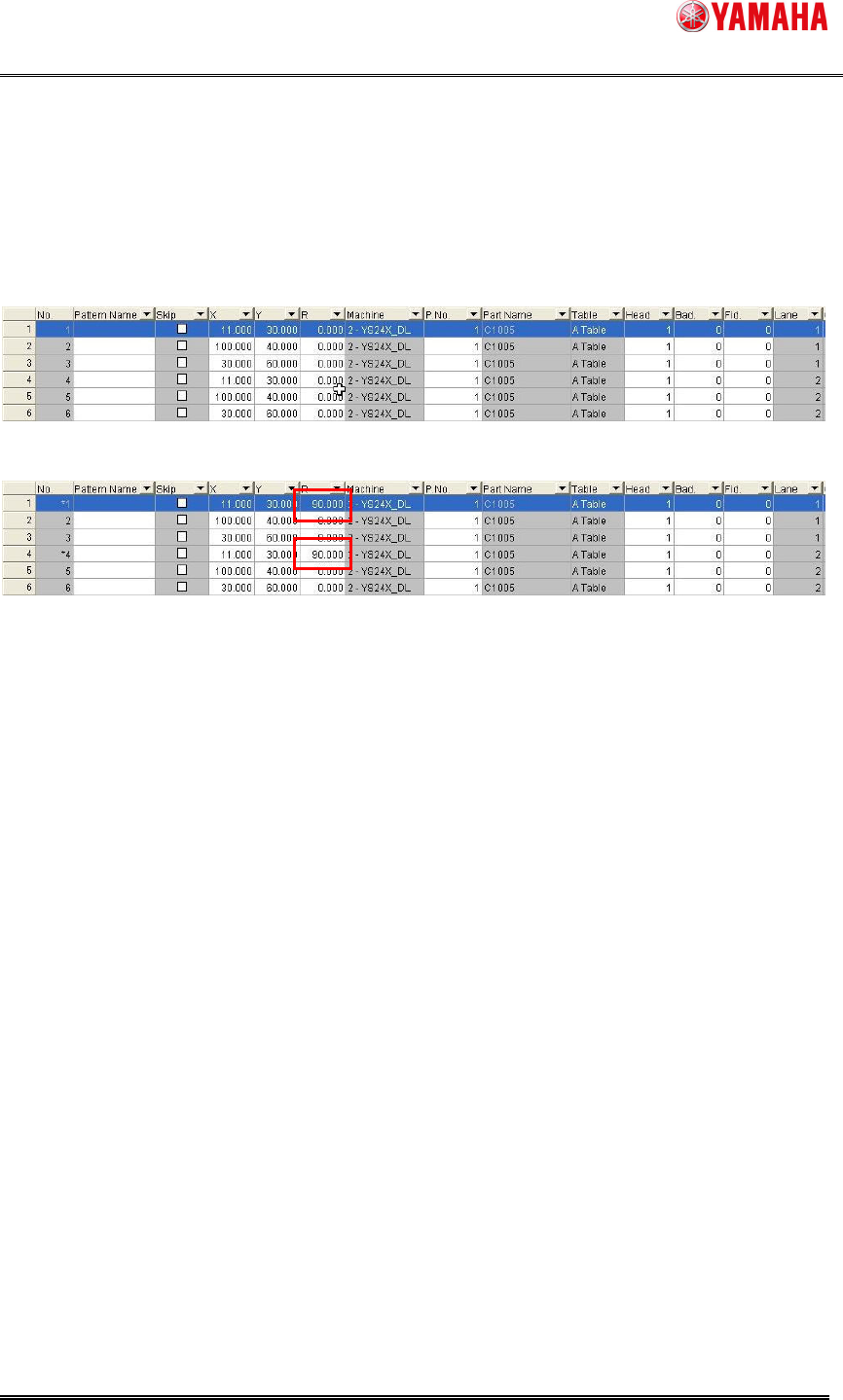

[Befor]
[After] If Mount information of lane 1 is changed, its of lane 2 is also changed.
