SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
6/24
2.2.1. Multi Lane Utility
Multi Lane Utility is tool to combine the single board data or divide the combined board data.
It is able to use by selecting the board data and clicking the right mouse button. Attention that It
is active with [Menu] – [View] – [Multi Lane View] is ON, and only on line data. It is not active
on the board data of each machine.

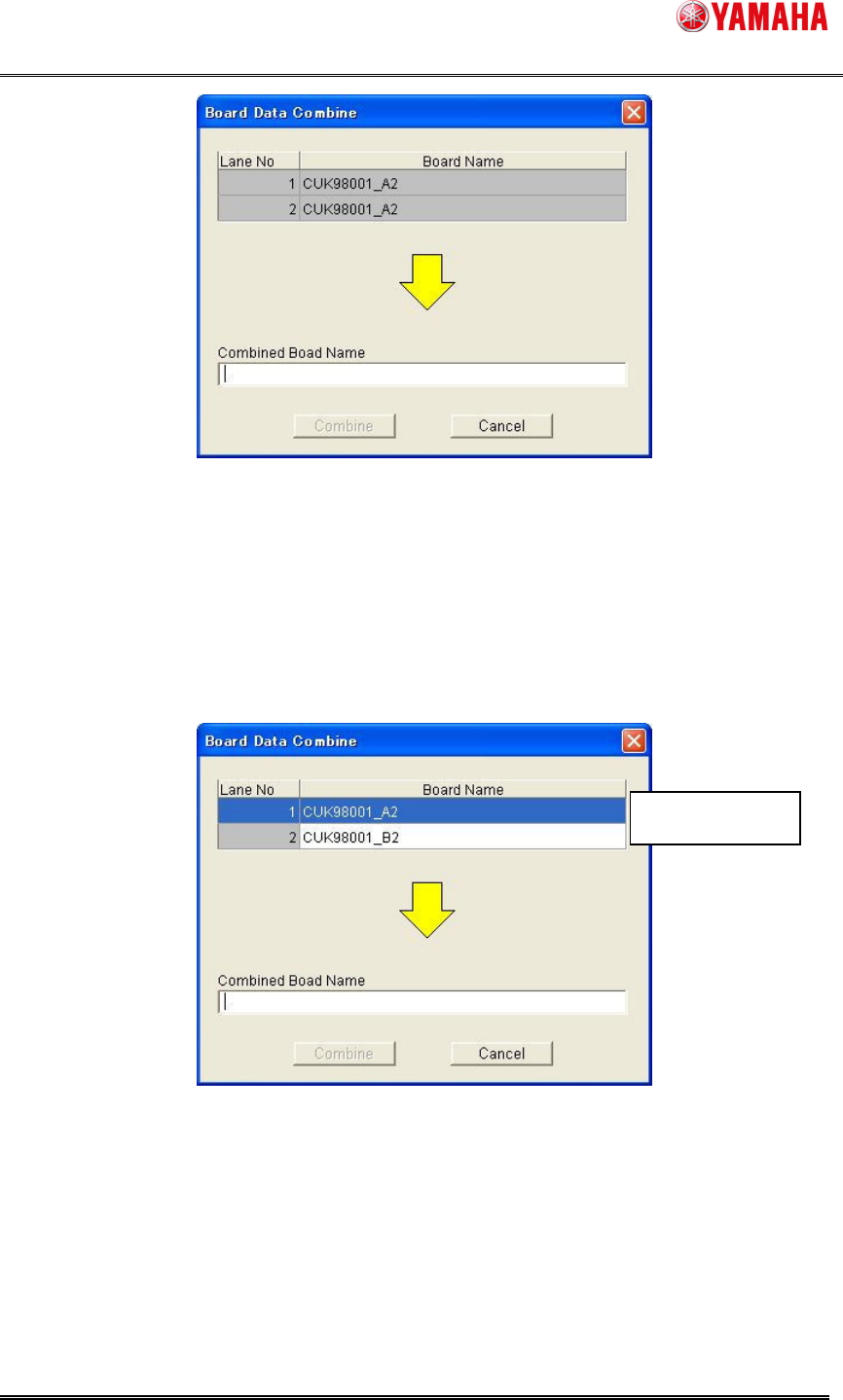

1. Single-Combined Program
It is able to combine to the board data for same board and same side. It is active only on line
with dual lane machine and one single board data is selected on main view. On the following
dialog, enter the combined board name and push [Combine] button.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
7/24
2. Multi-Combined Program
It is able to combine the board data for same board and both side. It is active only on line with
dual lane machine and some single board data are selected on main view. On the following
dialog, it is able to select the combination of lane number and board data. Enter the combined
board name and push [Combine] button. The mount mode (Parallel or Alternate) is set
automatically from the parts arrangement.

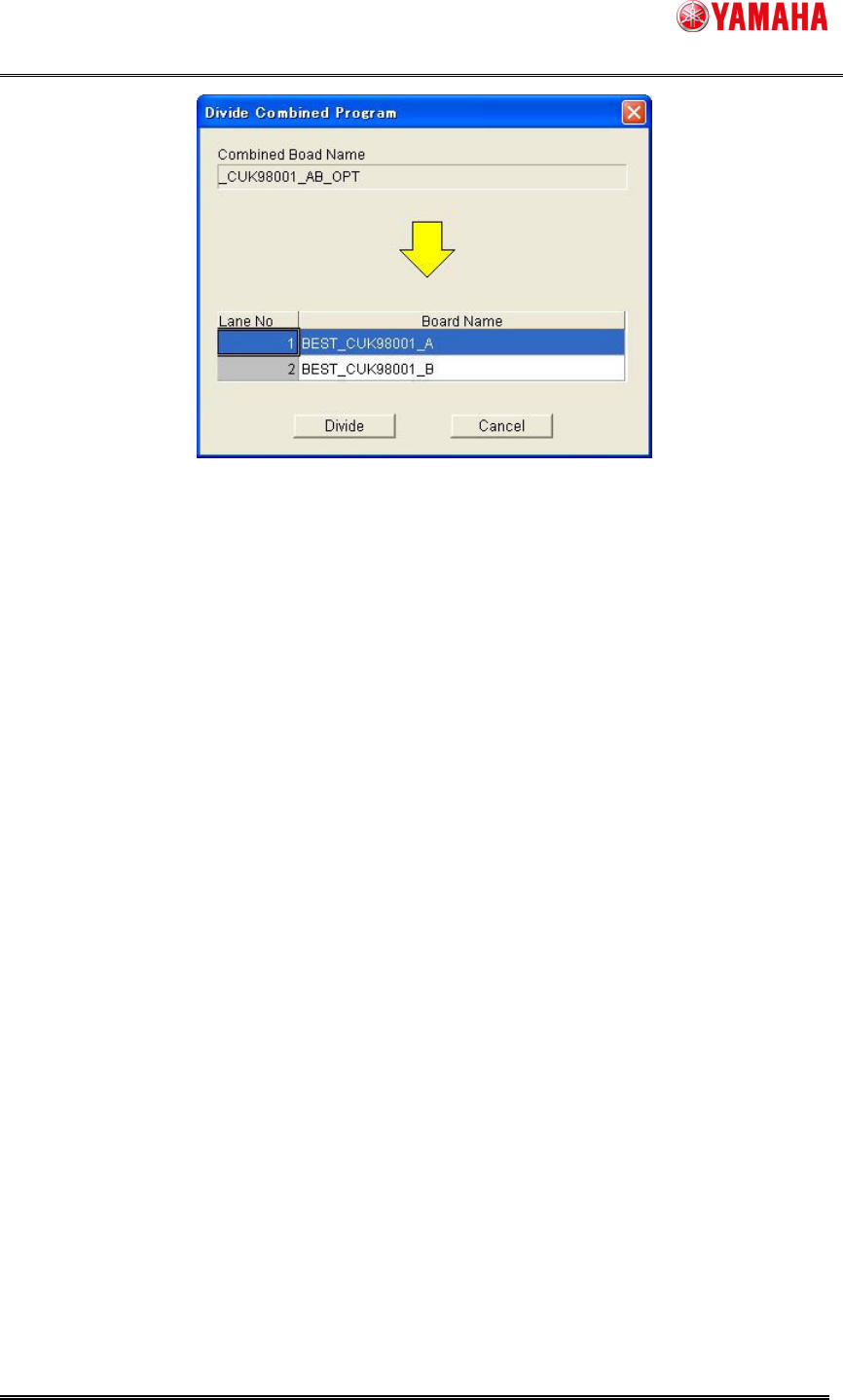

3. Divide Combined Program
It is able to divide the combined board data. It is active only when the combined board data is
elected on main view. On the following dialog, enter the divided board name and push [Divide]
button.
←Changeable
