Assembly Instructions E by SIPLACE Location 2 Upgrade Kit 04/2017 2 Installation of Location 2 Upgrade Kit 2.6 Installing the E-Series Empty Tape Duct (ETD) 29 2.6 Installing the E-Series Empty Tape Duct (ETD) ► Install …
2 Installation of Location 2 Upgrade Kit
2.5 Optional
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
28
2.5 Optional
► You can unfasten the four
M8x10, dismantle the Side
bracket B right [03109832-
xx] and the Side bracket B
left [03109810-xx].
► Keep and mount them onto
the machine base frame.
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
2 Installation of Location 2 Upgrade Kit
2.6 Installing the E-Series Empty Tape Duct (ETD)
29
2.6 Installing the E-Series Empty Tape Duct (ETD)

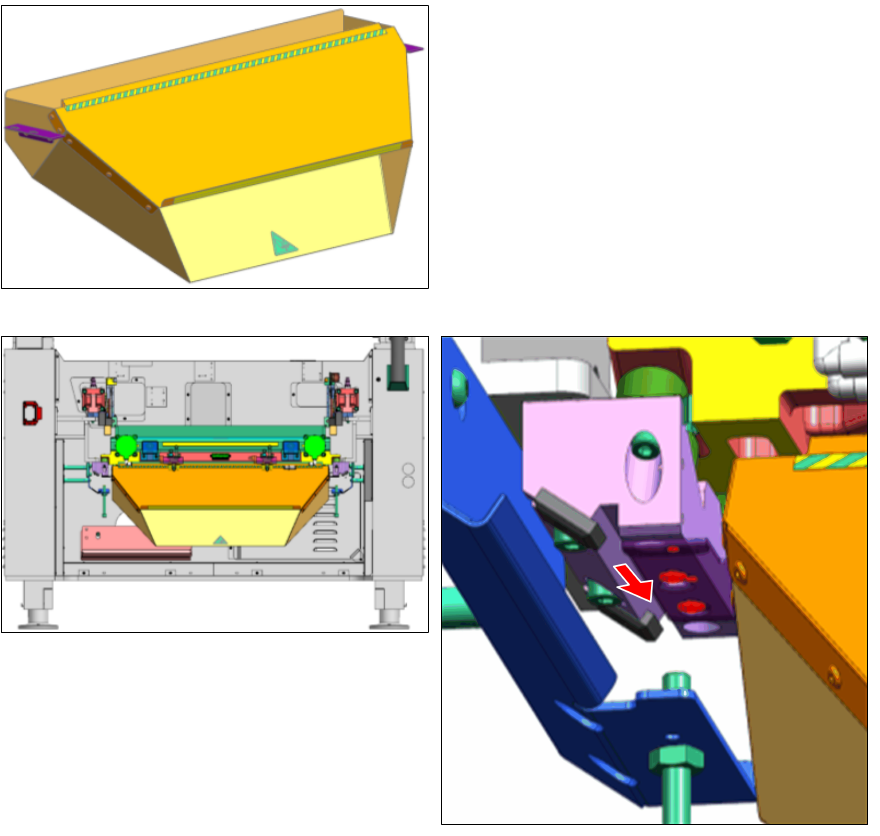

► Install the Waste Tape Chute. The Waste
tape chute has two riveted key-hole side
plates.
► Mount the waste tape chute using the four
M4x10 screws on to the tape cutter side
holder.
2 Installation of Location 2 Upgrade Kit
2.6 Installing the E-Series Empty Tape Duct (ETD)
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
30
Installing the ETD Cassette 25 mm
► Insert the ETD into the machine frame, guided by the pre-assembled self-clinching pilot pin on
the mounting bracket
