Product Engineering Division SMT Sect ion Robotics Operations Y AMAHA MOTOR CO., L TD. MDOC-SOFT50282 10/ 21 Fig 3.7 Fee der Maintenance S top (Drive Cnt After T a pe Guide Ma intenance) ▲ 3 Fig 3.8 Fee der Maintenance S…
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50282
9/21

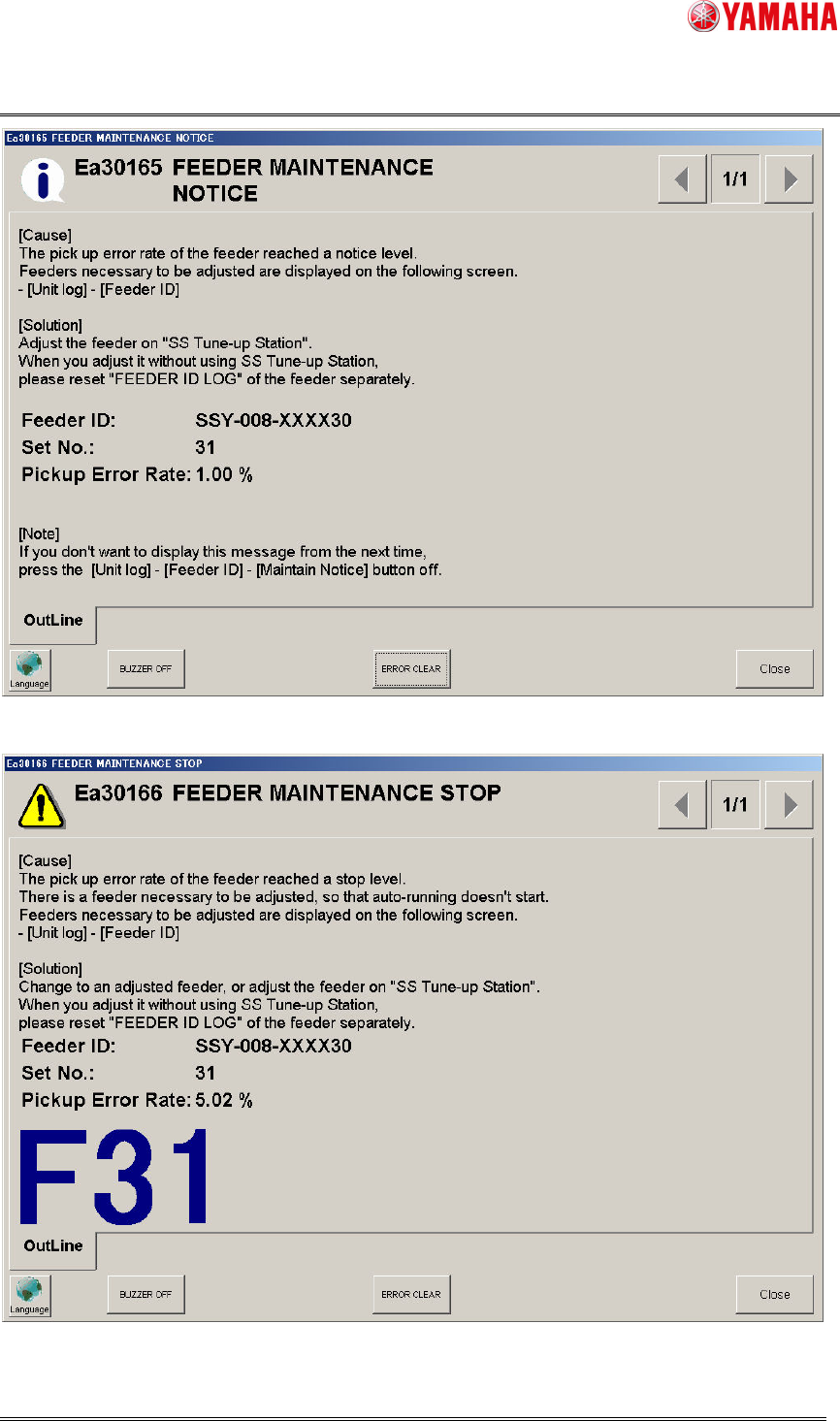

Fig 3.5 Feeder Maintenance Notice (error rate)
▲2
Fig 3.6 Feeder Maintenance Stop (error rate)
▲2
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50282
10/21

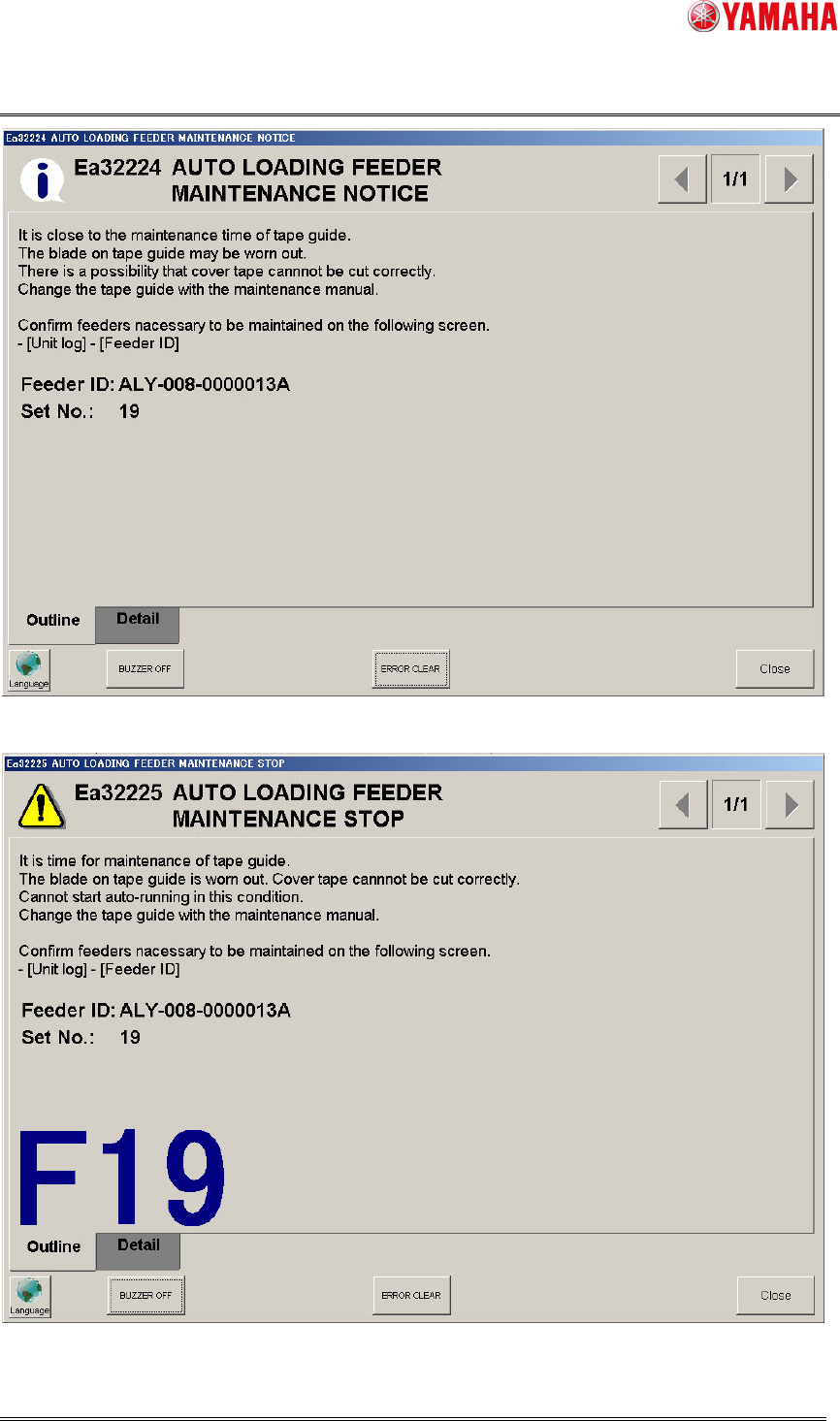

Fig 3.7 Feeder Maintenance Stop (Drive Cnt After Tape Guide Maintenance)
▲3
Fig 3.8 Feeder Maintenance Stop (Drive Cnt After Tape Guide Maintenance)
▲3
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50282
11/21
3.4 Notification on [Feeder ID Log] screen
On [Unit log]-[Feeder ID] screen ([Operator] tab and [Service] tab), feeders of the
maintenance level are displayed in different colors.
・ Yellow means that the feeder has reached “Notice Cnt”, “Notice Correct X”, “Notice
Correct Y”, “Notice Err Rate”, and “Notice Drive Cnt After Tape Guide
Maintenance”
▲3
.
・ Red means that the feeder has reached “Stop Cnt”, “Stop Correct X”, “Stop Correct
Y”, “Stop Err Rate”, and “Stop Drive Cnt After Tape Guide Maintenance”
▲3
.
If you do not need the notification, release [Maintain Notice] button, so that the feeder
maintenance notice is not displayed. However, feeder maintenance stop is still displayed.
- This function refers to the pickup error rate only on [Service] tab.
Fig 3.7 The [Unit log]-[Feeder ID] screen
“After Adjust Drive Cnt”, “After Adjust Drive Cnt”, “Feeder MACS Correct” and “Drive Cnt
After Tape Guide Maintenance”
▲3
are not initialized by [RESET] button on
[Operator]/[Service] tab.
