Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50282
12/21
3.5 Production Monitor
On [Monitor]-[Production] screen, feeders of stop level are displayed in Red. Only the
feeders attached and used for production are displayed. The maintenance stop function
can be enabled on Machine Setting (4.2 Machine Setting). It is disabled by default. Also, if
there is a feeder that satisfies the maintenance stop conditions, auto-running cannot start.
▲1
In that case, change the feeder or adjust it on SS Tune-up Station.

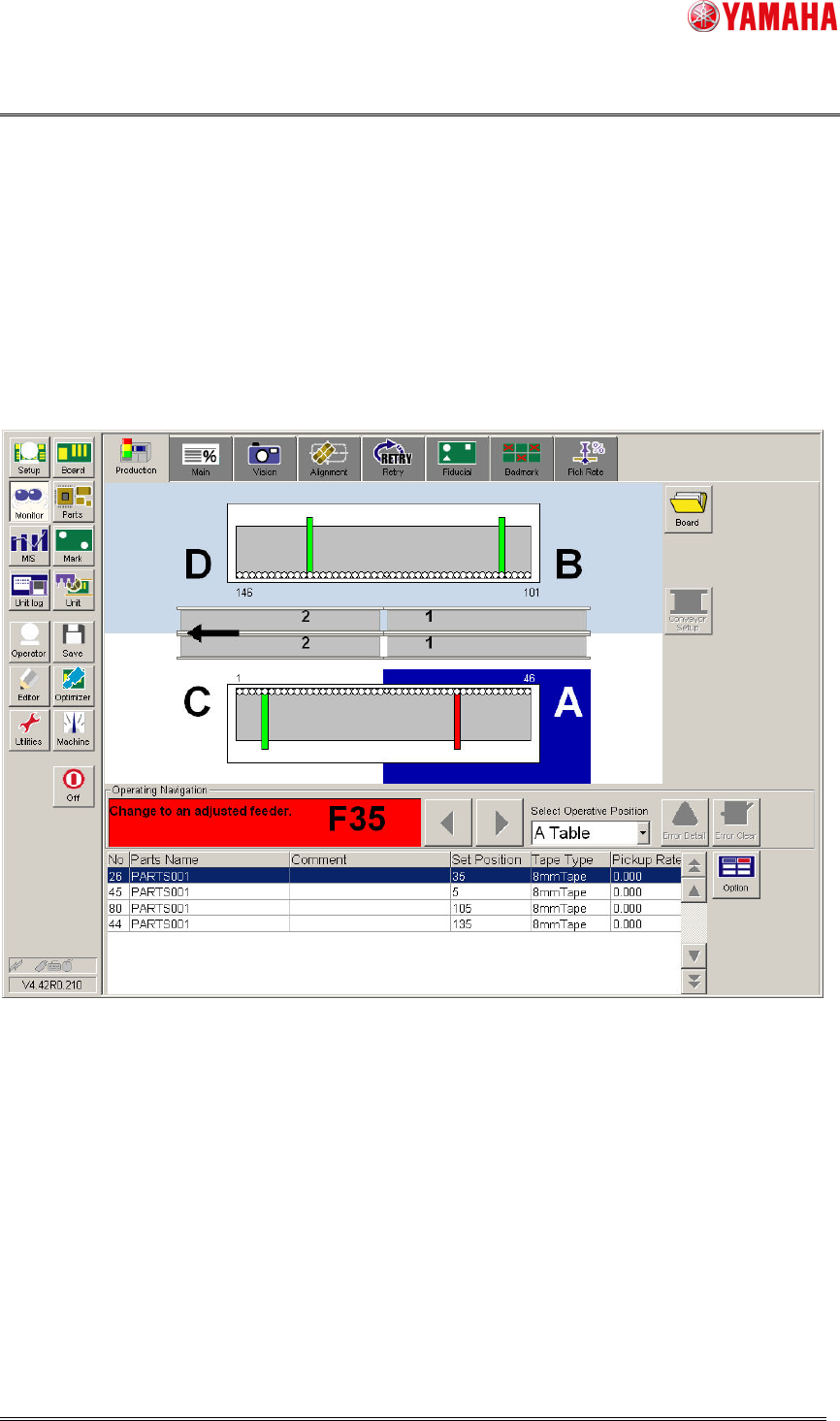

Fig 3.8 The [Monitor]-[Production] screen
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50282
13/21
4. Setting Method
4.1 Software Setting
To enable this function, open [Software Setting]-[History]-[Unit log]-[Log Setting]-
[Management of ID log] screen, and check [Maintenance Notice] check box. When this item
is unchecked, this function does not work.

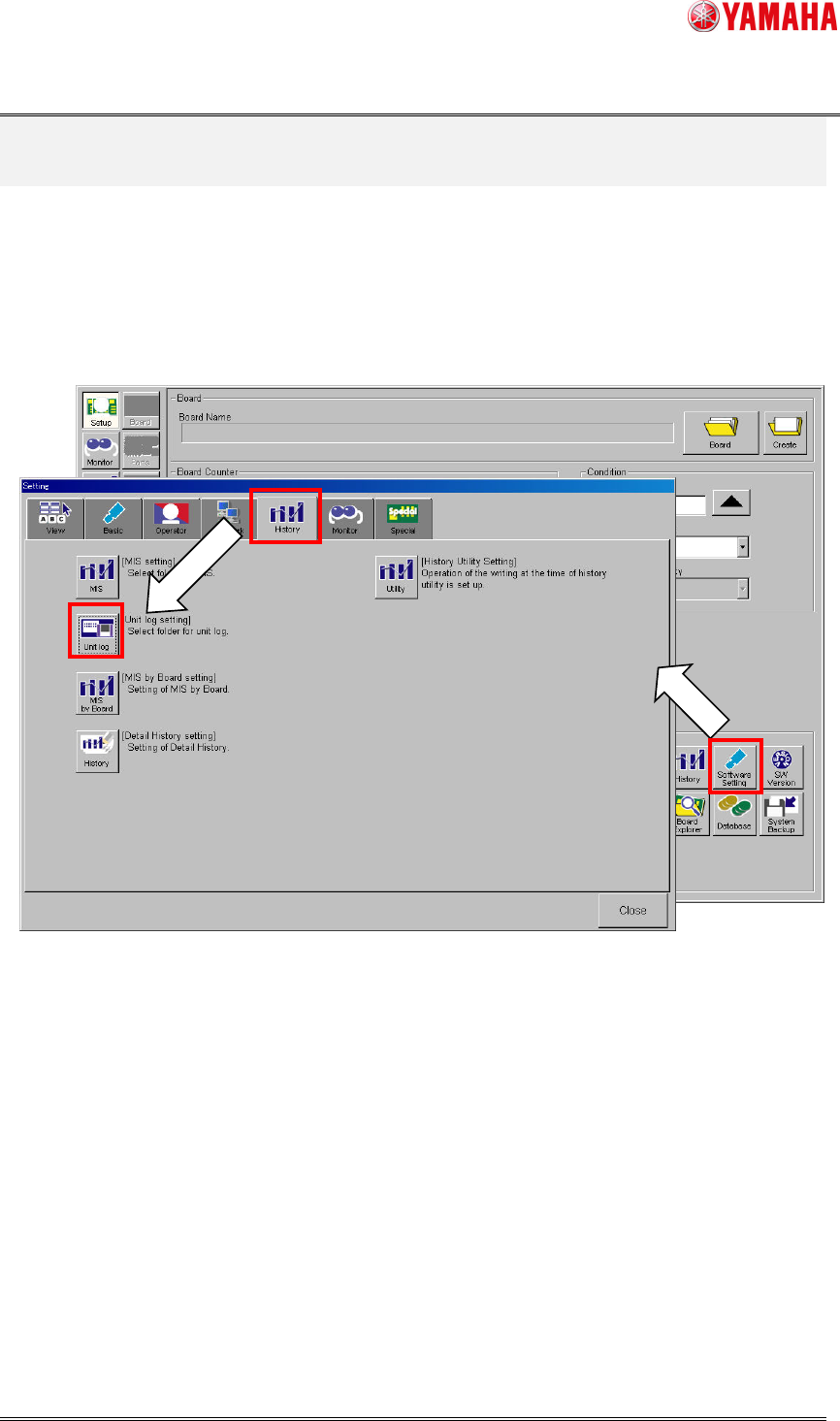

Fig 4.1 [Software Setting]-[History]
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50282
14/21

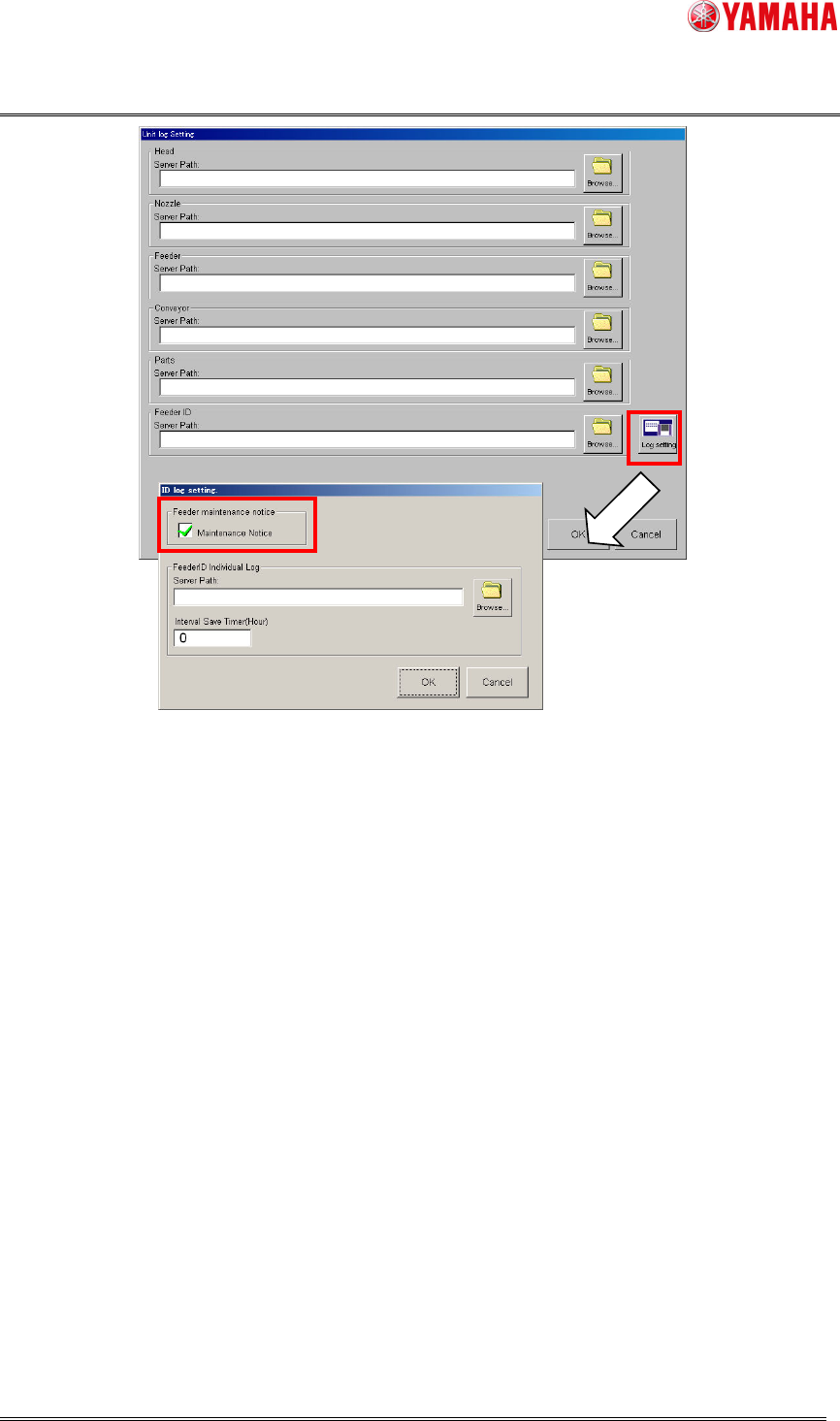

Fig 4.2 [Unit log]-[ID Log Setting]
※ When you use maintenance notice based on pickup error rate, it is recommended to
set [Server Path]. By setting [Server Path], individual log file is saved for each
Feeder ID, and information is taken over at power OFF/ON and also shared among
other machines.
