E-by SIPLACE CP12 & CP6 Removal of the Z-Axis motor Part Exchange 1/1 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: PN: 03083864 1. Remov…

E-by SIPLACE CP12 & CP6 Removing the Head Front Part

Part Exchange

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

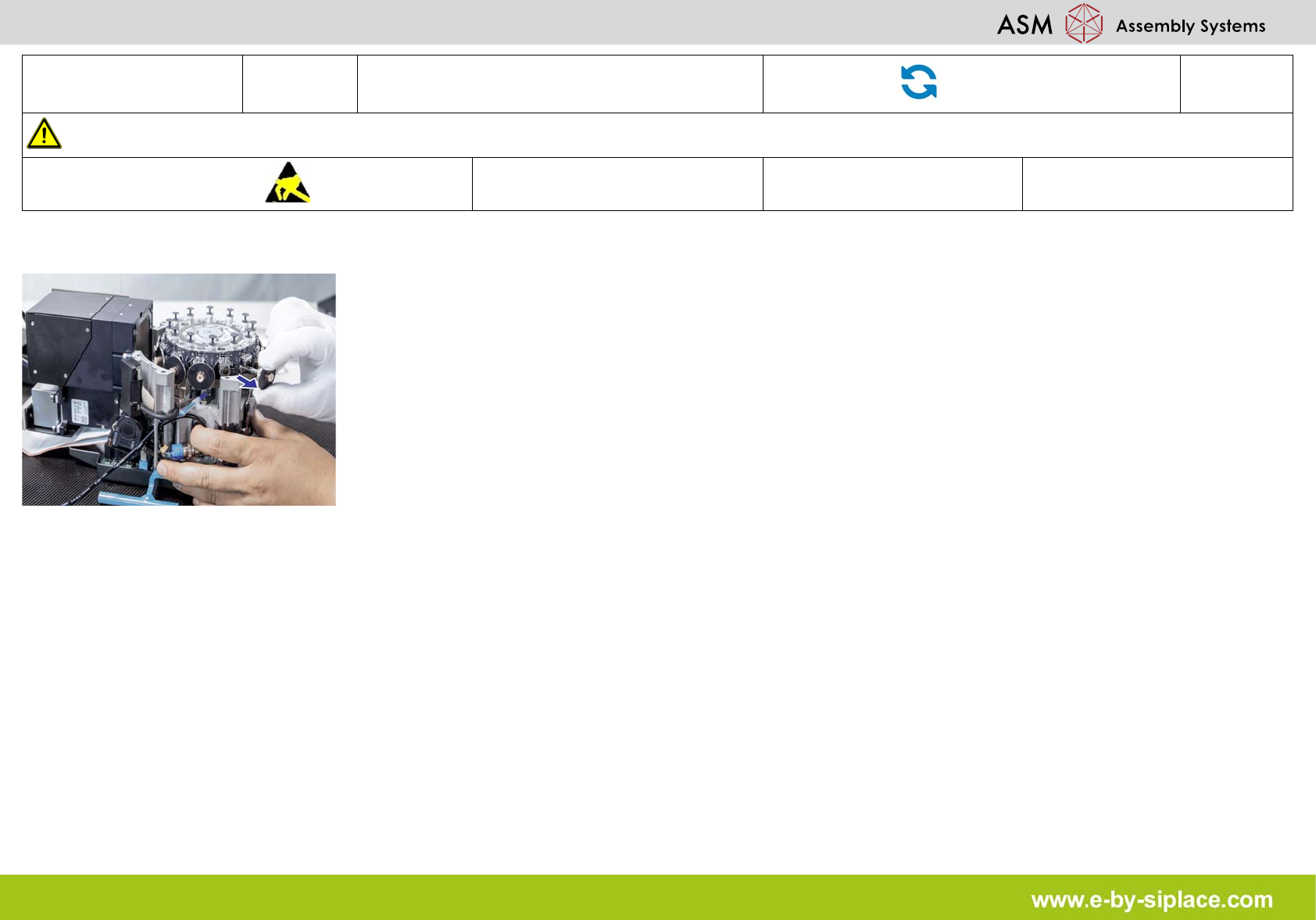

7. Remove all the sleeves and store properly.

E-by SIPLACE CP12 & CP6 Removal of the Z-Axis motor

Part Exchange

1/1

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: PN: 03083864

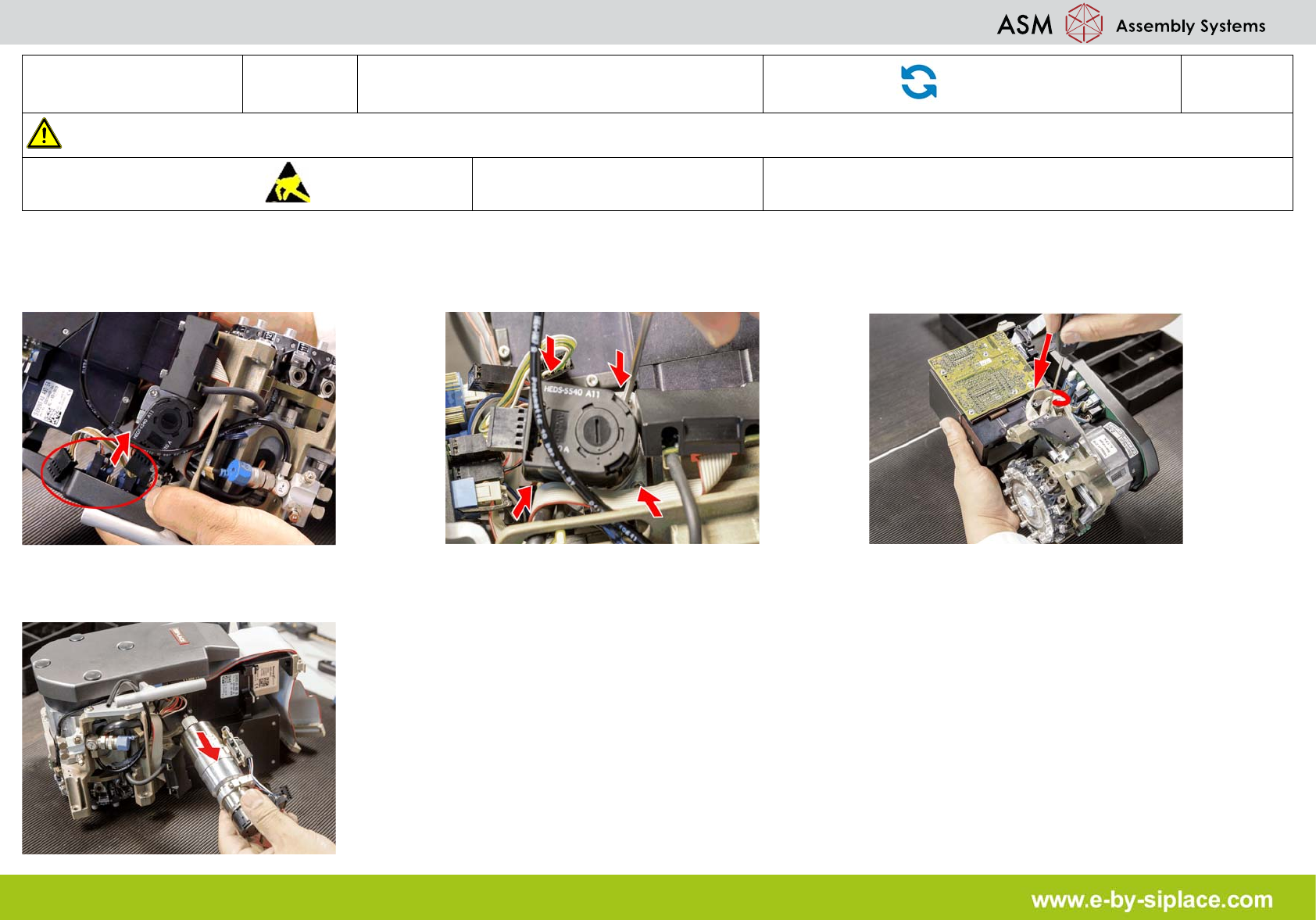

1. Remove the plugs (motor tacho and incre-

mental encoder) from the sockets on interme-

diate distributor.

2. Loosen the upper M2.5x12 hexagon sock-

et-head screw of the motor clamp fitting, then

the lower one.

3. Loosen the two M3x14 hexagon socket-

head screws on the motor clamp fitting.

4. Remove the Z-Axis motor together with the

cables.
