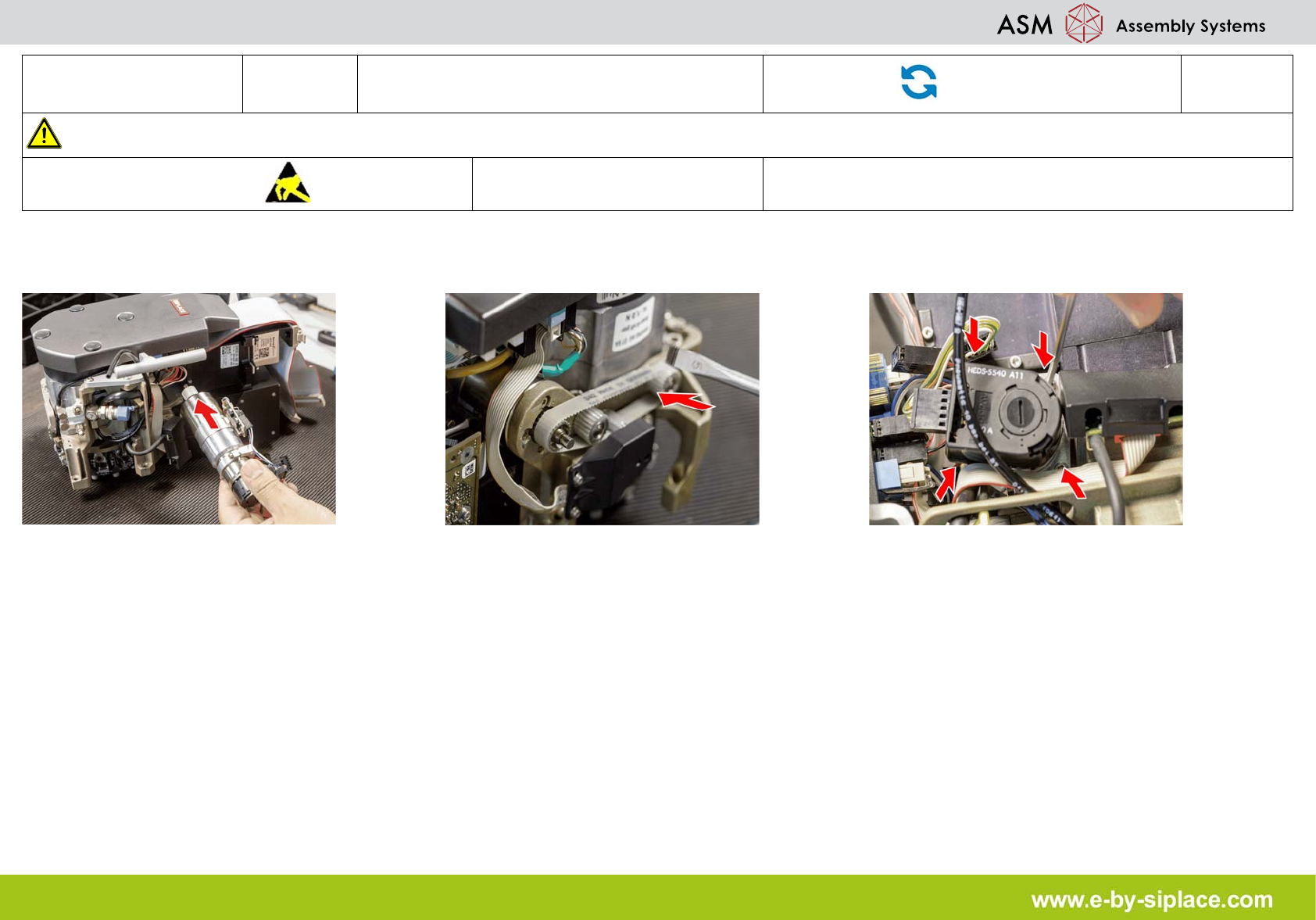

E-by SIPLACE CP12 & CP6 Assemble Back the Z-Axis Motor

Part Exchange

1/1

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: PN: 03083864

1. Insert the Z-Axis motor. 2. Ensure that the teeth of the tooth belt en-

gage in the teeth of the motor pinion.

3. Use the four M3x5 hexagon socket-head

screws to fit the Z-Axis motor.

E-by SIPLACE CP12 & CP6 Adjust the Z-Axis Belt Tension

Part Exchange

1/3

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. Several attempt to adjust the belt tension

may be required!

2. Insert the screw driver in between the Z-

Axis motor and star motor.

3. WARNING! Do not apply excessive force to

push the Z-Axis motor upward.

4. Use the screw driver to push the Z-Axis mo-

tor upward.

5. Tighten the four M3x5 hexagon socket-

head screws.

6. Use the belt tension meter to check the belt

tension of the Z-Axis belt.
