E-by SIPLACE CP12 & CP6 Adjust the Z-Axis Belt Tension Part Exchange 3/3 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: Wear Part: Consum …

E-by SIPLACE CP12 & CP6 Adjust the Z-Axis Belt Tension

Part Exchange

2/3

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

7. Loosen the screws individually (if neces-

sary) to reduce the belt tension of the Z-Axis

motor.

8. Check the belt tension again and adjust if

necessary (280HZ +/-10).

9. Check the four M3x5 hexagon socket-head

screws are secure properly.

10. Tighten the two M3x14 hexagon socket-

head screws to fix the motor clamp.

11. Fix the motor clamp upper part with the

two M2.5x12 hexagon socket-head screws.

12. Tighten the hexagon socket-head screws

on the Z-Axis drive unit and the motor clamp.

E-by SIPLACE CP12 & CP6 Adjust the Z-Axis Belt Tension

Part Exchange

3/3

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

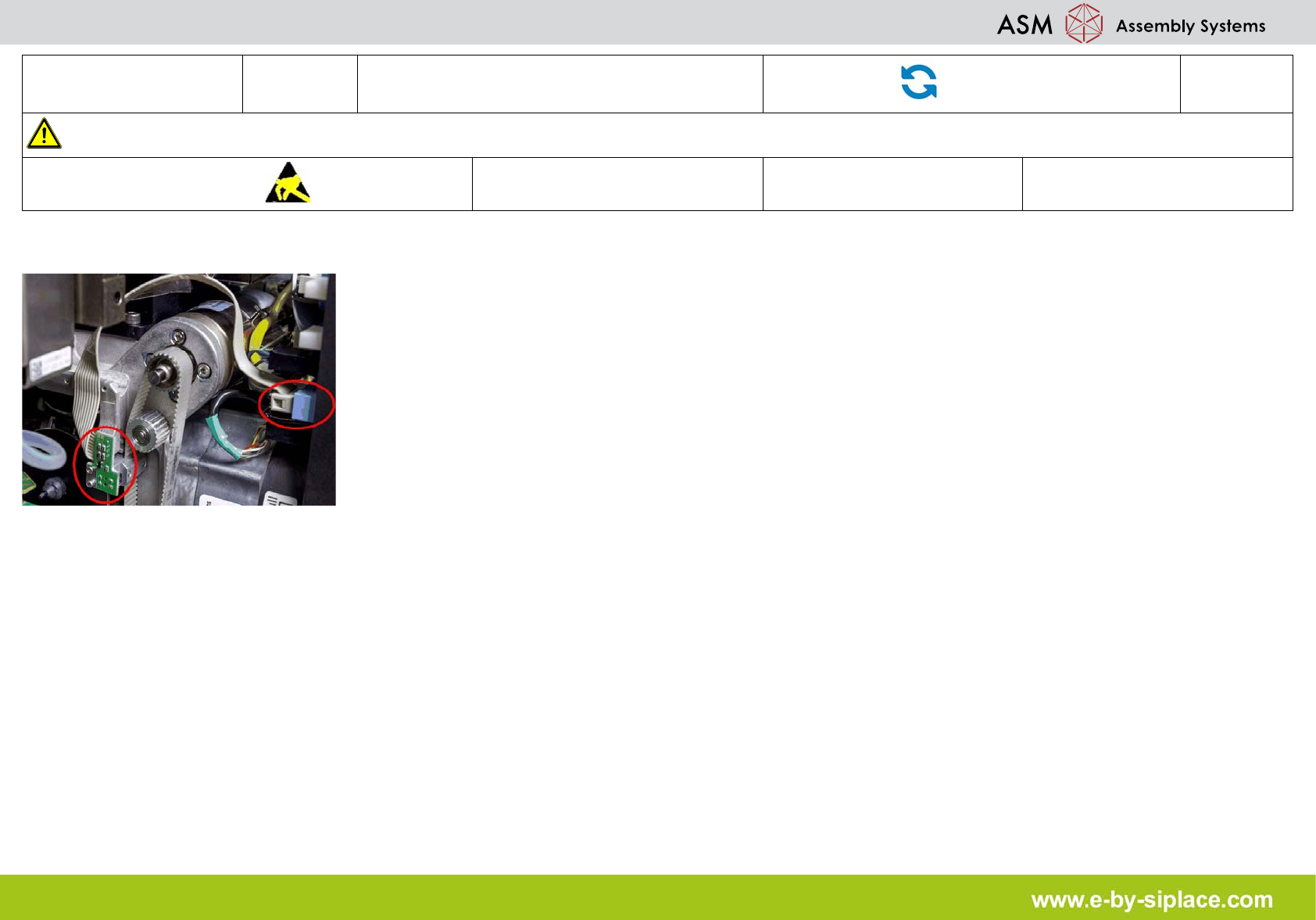

13. Reconnect cable.
