Page 11
Find us at www.keysight.com
Non–harmonics
1
External LO mode, vector mode
Non–harmonic level (dBc) (typ)
Frequency Line–related spurs at offsets ≤ 300 Hz Offsets > 300 Hz excluding line–related spurs Offsets > 10 kHz
10 MHz to < 50 MHz N/A N/A N/A
50 MHz to < 2.5 GHz (–68) (–69) (–67)
2.5 GHz to < 9 GHz (–55) (–62) (–68)
9 GHz to < 12.5 GHz (–53) (–59) (–70)
12.5 GHz to < 18 GHz (–50) (–55) (–67)
18 GHz to 20 GHz (–50) (–55) (–64)
> 20 GHz to 40 GHz (–44) (–52) (–52)
> 40 GHz to 44 GHz (–43) (–51) (–56)
External LO mode, wideband or enhanced vector mode (Opt BB1 or BB2)
Non–harmonic level (dBc) (typ)
Frequency Line–related spurs at offsets ≤ 300 Hz Offsets > 300 Hz excluding line–related spurs Offsets > 10 kHz
10 MHz to < 50 MHz N/A N/A N/A
50 MHz to < 1.2 GHz (–72) (–72) (–72)
1.2 GHz to < 9 GHz (–56) (–62) (–64)
9 GHz to < 12.5 GHz (–53) (–60) (–70)
12.5 GHz to 20 GHz (–49) (–55) (–64)
> 20 GHz to 40 GHz (–44) (–52) (–52)
> 40 GHz to 44 GHz (–43) (–51) (–56)
Internal LO mode
5
, vector mode
Non–harmonic level (dBc) (typ)
Frequency Line–related spurs at offsets ≤ 300 Hz Offsets > 300 Hz excluding line–related spurs Offsets > 10 kHz
10 MHz to < 50 MHz N/A N/A N/A
50 MHz to < 2.5 GHz (–69) (–69) (–67)
2.5 GHz to < 18 GHz (–45) (–45) (–45)
18 GHz to 20 GHz (–49) (–48) (–48)
Broadband noise
2
Internal LO mode
5
Fundamental frequency Broadband noise
3
50 MHz to 10 GHz –140 dBc/Hz (typ)
> 10 GHz to 20 GHz –134 dBc/Hz (typ)
External LO mode
Fundamental frequency Broadband noise
4
50 MHz to 1 GHz –140 dBc/Hz (typ)
> 1 GHz to 20 GHz –125 dBc/Hz (typ)
> 20 GHz to 40 GHz –119 dBc/Hz (typ)
1. Measured using a CW signal with power set to –10 dBm. Performance is unspecified for non–harmonics beyond the specified frequency range. Non–
harmonic specifications are warranted from 15 to 40 ˚C.
2. For large offsets > 4 GHz, broadband noise will drop.
3. CW signal measured with power set to +4 dBm.
4. CW signal Measured with power set to +5 dBm.
5. Does not apply to N5192A UXG vector adapter, modified version.
Page 12
Find us at www.keysight.com
Phase Noise for N5194A
Internal LO mode for N5194A
Absolute SSB phase noise (dBc/Hz)
1
Offset from carrier
Frequency 10 kHz
spec (typ)
100 kHz
spec (typ)
1 MHz
spec (typ)
10 MHz
spec (typ)
100 MHz
spec (typ)
100 MHz –144 (–148) –143 (–148) –142 (–148) –143 (–148) N/A
1 GHz –132 (–144) –132 (–143) –145 (–151) –142 (–153) –142 (–155)
2 GHz –130 (–140) –120 (–138) –142 (–149) –143 (–150) –143 (–150)
3 GHz –122 (–128) –126 (–132) –132 (–137) –133 (–141) –131 (–140)
6 GHz –124 (–131) –128 (–134) –138 (–145) –141 (–148) –138 (–146)
10 GHz –121 (–127) –125 (–131) –133 (–140) –138 (–145) –135 (–143)
20 GHz –113 (–119) –116 (–124) –125 (–132) –127 (–135) –124 (–133)
External LO mode for N5194A
Absolute SSB phase noise (dBc/Hz)
2
Offset from carrier
Frequency 10 kHz
spec (typ) [nom]
100 kHz
spec (typ) [nom]
1 MHz
spec (typ) [nom]
10 MHz
spec (typ) [nom]
100 MHz
spec (typ) [nom]
100 MHz –144 (–148) –143 (–148) –142 (–148) –143 (–148) N/A
1 GHz –132 (–144) –132 (–143) –145 (–151) –142 (–153) –142 (–155)
2 GHz –130 (–140) –120 (–138) –142 (–149) –143 (–150) –143 (–150)
3 GHz –115 (–121) –120 (–126) –125 (–129) –123 (–131) –121 (–129)
6 GHz –114 (–121) –117 (–124) –124 (–128) –124 (–130) –122 (–129)
10 GHz –109 (–117) –111 (–120) –119 (–124) –118 (–126) –118 (–128)
20 GHz –106 (–115) –108 (–118) –117 (–123) –120 (–127) –118 (–126)
22 GHz [–117] [–121] [–126] [–129] [–130]
26 GHz [ –116] [–121] [–126] [–129] [–131]
30 GHz [–117 ] [–121] [–126] [–129] [–129]
34 GHz [–115] [–119] [–125] [–129] [–130]
38 GHz [–115] [–119] [–125] [–127] [–122]
42 GHz [–114] [–119] [–126] [–128] [–125]
1. CW signal measured with power set to +4 dBm. Phase noise specifications are warranted from 0 to 50 ˚C.
2. CW signal Measured with power set to +5 dBm. Phase noise specifications are warranted from 0 to 50 ˚C
Page 13
Find us at www.keysight.com

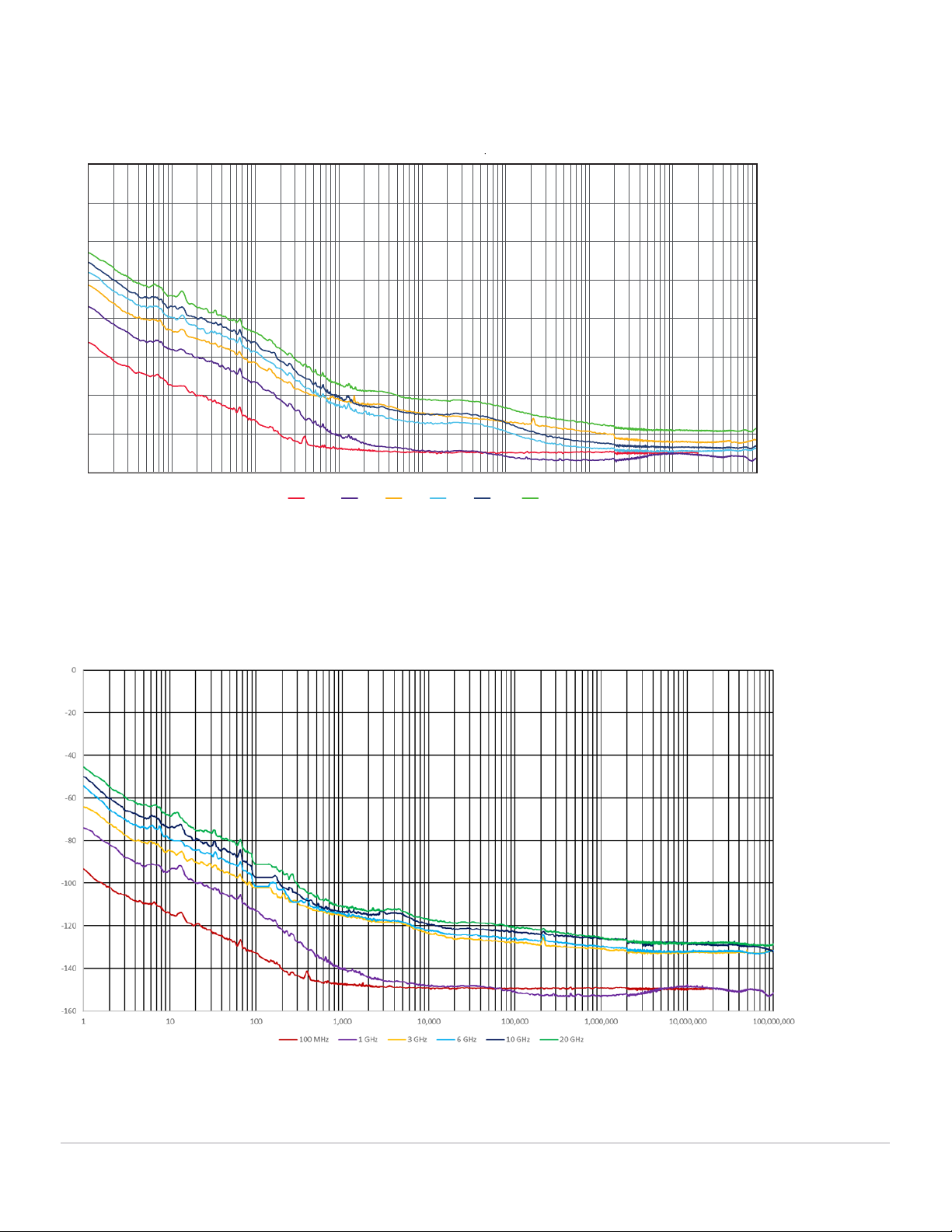

Figure 3. Measured absolute phase noise using the internal LO mode for the N5194A.
Figure 4a. Measured absolute phase noise using the external LO mode for the N5194A.
Measured internal LO absolute phase noise for N5194A
Measured external LO absolute phase noise for N5194A
-160
-140
-120
-100
-80
-60
-40
-20
0
110 100 1,00010,000 100,000 1,000,00010,000,000 100,000,00
0
Measured internal LO absolute phase noise
100 MHz 1 GHz 3 GHz 6 GHz 10 GHz 20 GHz
