N5194A矢量适配器数据表.pdf - 第15页
Page 15 Find us at www .keysight.com Fig ure 6 . Mea sur ed re sidu al ph ase n oise u sing t he ext ern al LO mod e for th e N51 94 A. Measu red externa l LO resid ual ph ase noise fo r N51 94 A Measu red inte rnal LO A…
Page 14
Find us at www.keysight.com
Figure 4b. Measured absolute phase noise above 20 GHz using the external LO mode for the N5194A.
Measured internal LO residual phase noise for N5194A
Measured external LO absolute phase noise above 20 GHz for N5194A
Figure 5. Measured residual phase noise using the internal LO mode for the N5194A.
Page 15
Find us at www.keysight.com
Figure 6. Measured residual phase noise using the external LO mode for the N5194A.
Measured external LO residual phase noise for N5194A
Measured internal LO AM noise for N5194A
Figure 7. Measured AM noise using the internal LO mode for the N5194A.
Page 16
Find us at www.keysight.com

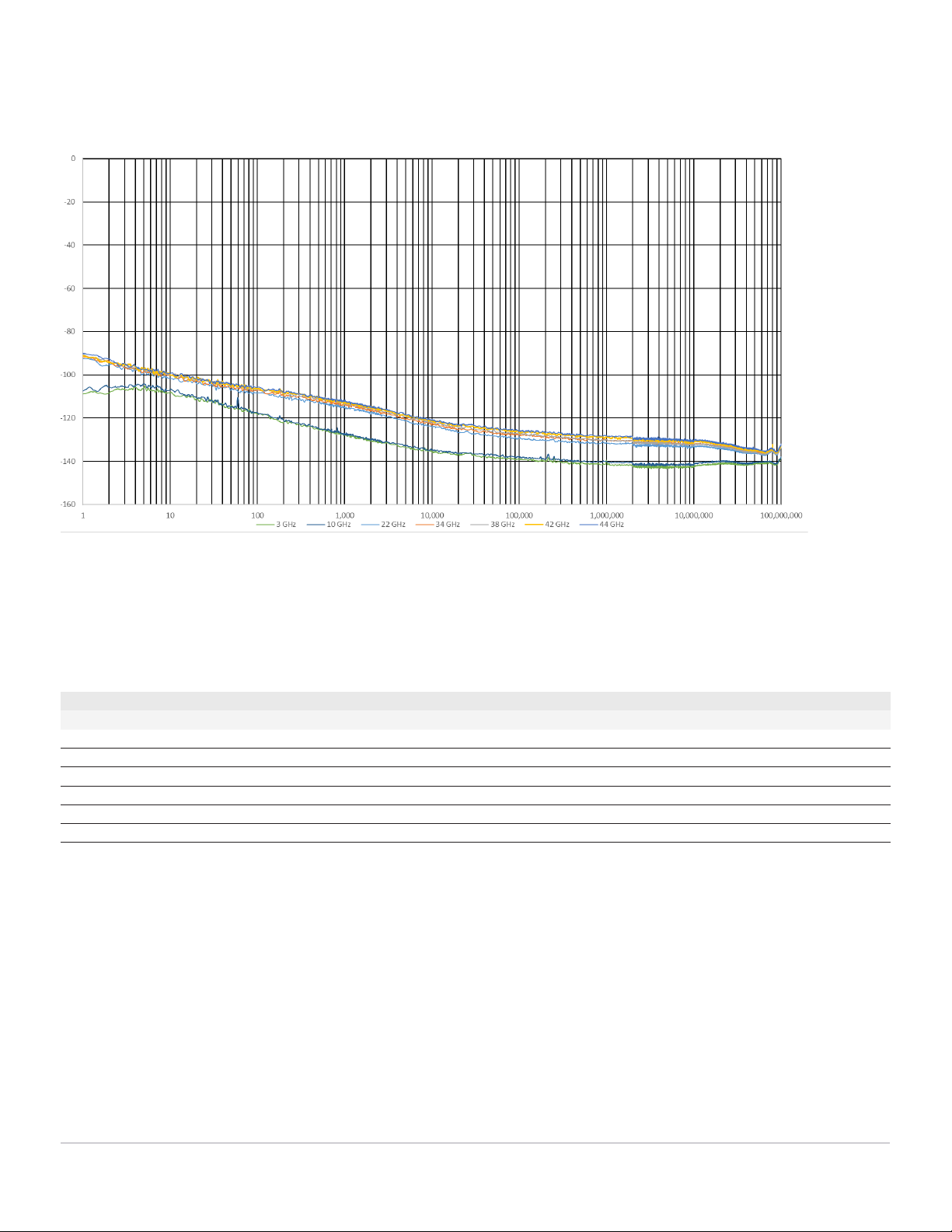

Figure 8. Measured AM noise using the external LO mode for the N5194A.
Measured external LO AM noise for N5194A
Phase Noise for N5192A
Absolute SSB phase noise (dBc/Hz), nominal
1
Offset from carrier
Frequency 20 kHz, nom
100 MHz –150
1 GHz –150
3 GHz –126
6 GHz –125
10 GHz –122
20 GHz –120
1. CW signal measured with power set to +5 dBm.
