Page 21

Find us at www.keysight.com

Internal Baseband Generator (Continued)

Markers

Number of markers Markers 1–2: SMA rear–panel connectors with 78.125 ps output delay resolution

Markers 3–10: SMB rear–panel connectors with 78.125 ps output delay resolution

PRCN Marker Out: SMB rear–panel connector with 10 ps output delay resolution

Marker Out: SMB rear–panel connector with 4 ns output delay resolution

Connector polarity Negative, positive

Remote Programming

Interfaces USB 2.0, 1000BaseT LAN, 10GB Ethernet

Keysight I/O libraries Keysight’s IO Library Suite helps you quickly establish an error–free connection between your

PC and instruments, regardless of the vendor. It provides robust instrument control and works

with the software development environment you choose.

General Specifications

Power requirements 350 W typical, 400 W maximum

Operating temperature range 0 to 50 ˚C

Storage temperature range –40 to 70 ˚C; during storage below –20 ˚C, instrument states and waveform data may be lost.

Altitude 0 to 3000 m (10,000 ft)

Humidity Type tested, 95% relative humidity at 40 °C decreasing linearly to 50% relative humidity at 50 °C.

Environmental testing Samples of this product have been tested in accordance with the Keysight Environmental Test

manual and verified to be robust against the environmental stresses of storage, transportation,

and end–use. Those stresses include but are not limited to temperature, humidity, shock,

vibration, altitude, and power line conditions. Test methods are aligned with IEC 60068–2 and

levels are similar to MIL–PRF–28800F Class 3. Phase noise specifications are not warranted in a

vibrating environment.

ISO compliant This family of signal generators is manufactured in an ISO–9001 registered facility in

concurrence with Keysight’s commitment to quality.

EMC Conforms to the immunity and emission requirements of IEC/EN 61326–1 including the

conducted and radiated emission requirements of CISPR Pub 11/2009 Group 1, Class A.

Storage Memory is shared by instrument states and waveform files.

The solid–state drive initially holds at least 512 GB of free space.

Security Display blanking

Memory clearing functions (See Application Note, Security Features of Keysight Technologies Signal

Generators, part number E4400–90621).

Removable Solid State Drive (SSD) with all user data.

Self–test Internal diagnostic routine tests most modules in a preset condition. If node voltages are within

acceptable limits, then the module passes the test.

Weight 17.2 kg (38.0 lb) net

24.0 kg (52.8 lb) shipping

Dimensions 103 mm H x 426 mm W x 559 mm D (4.05” H x 16.8” W x 22.0” D)

Height and depth dimensions include bottom and rear panel feet.

Rack mounting height: 2U (89 mm or 3.5”)

Recommended calibration cycle 12 months

Page 22

Find us at www.keysight.com

Input/Output Descriptions

Front panel connectors

Option 1EM moves all connectors to the rear panel except the USB connectors.

RF output Output impedance 50 Ω (nom).

– Option 520 or 52E Standard: Precision APC–3.5 male; plus 3.5 to 3.5 mm female adapter

Option 1ED: Type–N female; plus Type–N male to SMA female adapter

– Option 540 Precision APC–2.4 male; plus 2.4 to 2.4 mm and 2.4 to 2.92 mm female adapters

USB 2.0 primary (2 ports) Allows control of USB devices. USB Type–A female connector. Nominal output current 0.5 A.

Rear panel connectors

Unless otherwise noted, digital outputs are 5 V CMOS, and digital inputs will accept 5 V CMOS, 3.3 V CMOS, or TTL voltage levels.

Option 1EM moves all connectors to the rear panel except the USB connectors.

LAN (1000BaseT) Allows LAN TCP/IP communication. RJ45 Ethertwist connector. The LAN connector provides SCPI

remote programming functionality. The LAN connector is used to access the internal web server and

FTP server. The LAN supports DHCP, HiSLIP, sockets SCIP, VXI–11 SCPI, connection monitoring,

dynamic hostname services, and TCP keep alive. This interface is LXI class C compliant.

USB 2.0 primary (2 ports) Allows control of USB devices. USB Type–A female connector. Nominal output current 0.5 A.

USB 2.0 secondary (1 port) Receives control from USB host. USB Type–B female connector. Nominal output current 0.5A.

SFP 1 Accepts an SFP+ transceiver

SFP 2 Accepts an SFP+ transceiver

DisplayPort Reserved for future use

Data Port 1 100–pin LVDS. This connector is used to provide agile LO control of the N519xA UXG agile signal

generator.

System Sync In SMA

System Sync Out SMA

Triggers 1 through 10 Triggers 1 – 2 are SMA; Triggers 3 – 10 are SMB.

High impedance inputs and 50 Ω outputs.

6 GHz In SMA; +5.0 dBm minimum input power. Damage level > +15 dBm.

6 GHz Out SMA; +10 dBm nominal output power.

LO In SMA; +2.0 dBm minimum input power. Damage level > +20 dBm.

IF Ref In SMA

IF Ref Out SMA

IF In SMA

IF Out SMA

Trigger In 50 Ω SMB

PRCN Marker Out 50 Ω SMB

Marker Out 50 Ω SMB

1. Please refer to the configuration guide for more details on configurations involving 2 vector UXGs.

This information is subject to change without notice. © Keysight Technologies, 2017 - 2022, Published in USA, December 13, 2022, 5992-2228EN

Page 23

Find us at www.keysight.com

Learn more at: www.keysight.com

For more information on Keysight Technologies’ products, applications or services,

please contact your local Keysight office. The complete list is available at:

www.keysight.com/find/contactus

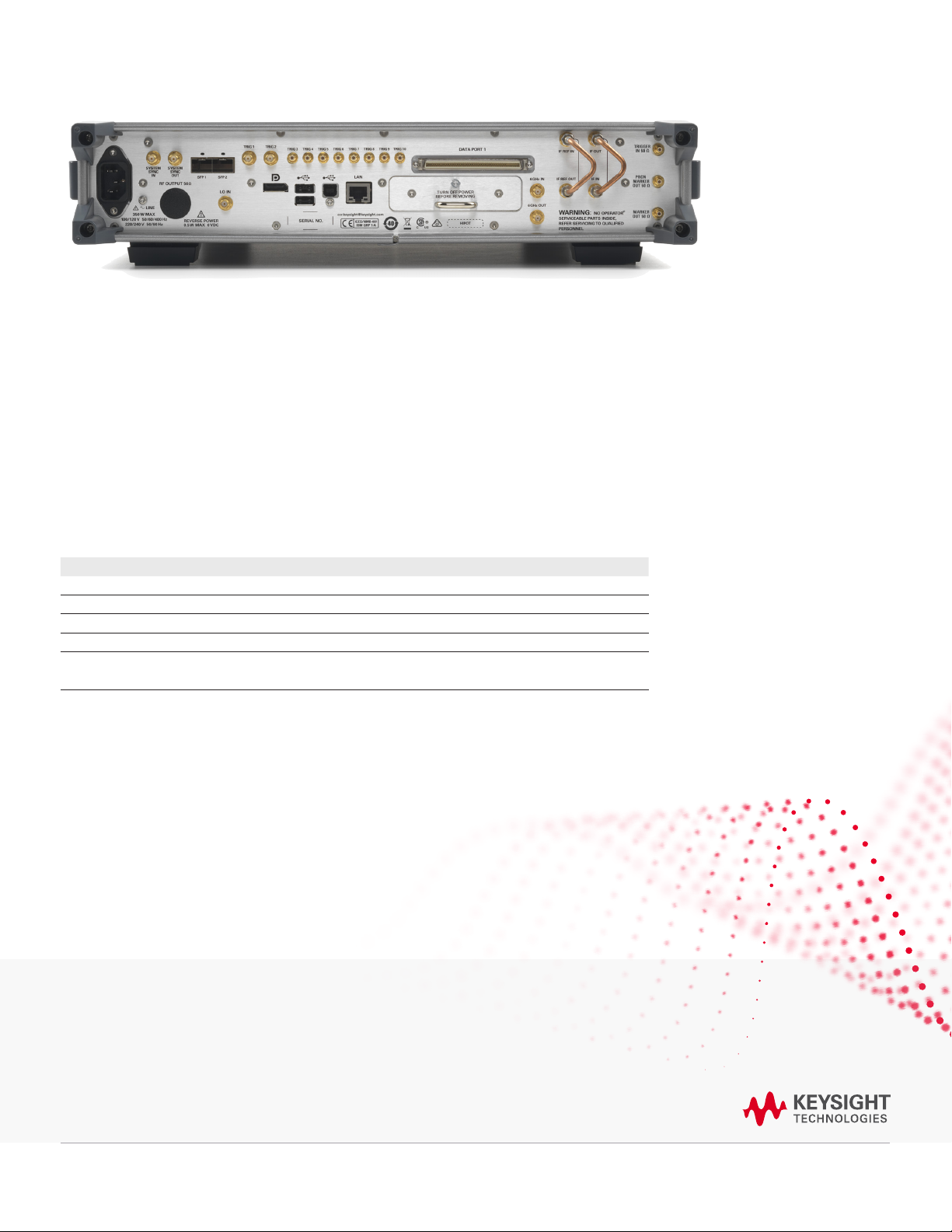

Figure 13. The UXG agile vector adapter rear panel.

Related Literature

Publication title Publication number

N5194A and N5192A UXG Agile Vector Adapter – Configuration Guide 5992–2332EN

N5193A UXG Agile Signal Generator – Data Sheet 5992–0092EN

UXG Agile Signal Generator (N5193A and N5191A) – Configuration Guide 59 92–1116 EN

N5191A UXG X–Series Agile Signal Generator, Modified Version – Data Sheet 5992–1095EN

TAKE YOUR LAB TO THE NEXT LEVEL WITH Keysight Technologies Electronic

Warfare Test and Evaluation Solutions – Brochure

5992–3476EN

Performance Archive

Solid state drive (SSD) capacity was increased from 480 GB to 512 GB on instruments with s/n ≥

5747xxxx, shipped after August 2017.
