Fig. J1-4 Z 軸駆動部 Z Axis Driving Section 385 383 382 381 384 302 301 315 314 312 310 309 316 387 322 320 333 341 331 332 340 339 358 359 360 334 335 336 A A 332 332 337 335 336 337 335 338 319 329 313 31 1 389 389 386 376…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 222L0954 GUIDE_LINEAR 1 1 1091603C06-001
202 0916D719 MOTOR_AC-SERVO 1 1 1091603C06-002
203 223C0203 COUPLING 1 1 1091603C06-003
204 221AA321 ROHS_HEX-SCT 2 2 M2.5L10 1091603C06-004
205 221HA002 WASHER 2 2 SW2.5 1091603C06-005
206 211F9803 BRACKET 1 1 1091603C06-006
207 221AA001 ROHS_HEX-SCT 2 2 M2L6 1091603C06-007
208 221HA001 WASHER 2 2 SW2 1091603C06-008
209 221HA101 WASHER 2 2 FW2 1091603C06-009
210 09163800 ASSY_SENSOR 1 1 left 1091603C06-010
210 09163801 ASSY_SENSOR 1 1 center 1091603C07-010
210 09163802 ASSY_SENSOR 1 1 right 1091603C08-010
211 09163803 ASSY_SENSOR 1 1 left 1091603C06-011
211 09163804 ASSY_SENSOR 1 1 center 1091603C07-011
211 09163805 ASSY_SENSOR 1 1 right 1091603C08-011
212 09163806 ASSY_SENSOR 1 1 left 1091603C06-012
212 09163807 ASSY_SENSOR 1 1 center 1091603C07-012
212 09163808 ASSY_SENSOR 1 1 right 1091603C08-012
213 221AA145 ROHS_HEX-SCT 3 3 M2.5L6 1091603C06-013
214 221HA202 WASHER 3 3 FWS2.5 1091603C06-014
215 0916D209 ACCESS_WIRING 2 2 1091603C06-015
216 221AA115 ROHS_HEX-SCT 4 4 M2L8 1091603C06-016
Fig. J1
1104-004
Fig. J1-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-9
Fig. J1
HEAD 2

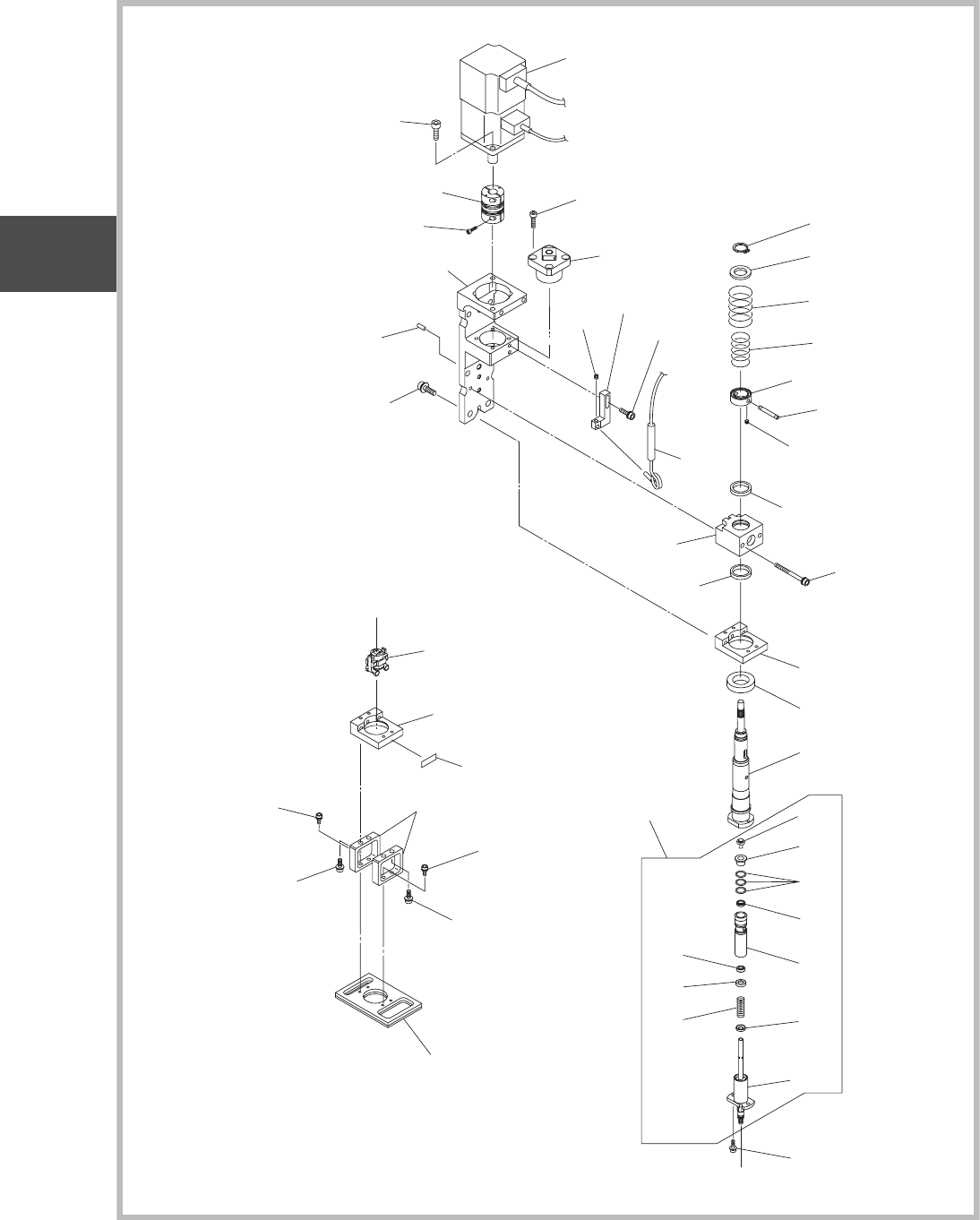

Fig. J1-4 Z
軸駆動部
Z Axis Driving Section
385
383
382
381
384
302
301
315
314
312
310
309
316
387
322
320
333
341
331
332
340
339
358
359
360
334
335
336
A
A
332
332
337
335
336
337
335
338
319
329
313
311
389
389
386
376
388
327
328
328
326
330
321
315
318
317
09163D09
09163D0B
(Fig. J1-5)
M141
B05
1104-003
Fig. J1
多機能ヘッド
MULTI-FUNCTIONAL HEAD
UNIT-9
Fig. J1
HEAD 2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
301 210B4348 FRAME 1 1 1091603D00-001
302 0916D70H SHAFT 1 1 1091603D00-002
309 216A1658 COLLAR 1 1 1091603D00-009
310 216A1659 COLLAR 1 1 1091603D00-010
311 222M1351 SPRING_COMP 1 1 1091603D00-011
312 211G3965 BLOCK 1 1 1091603D00-012
313 222M1407 SPRING_COMP 1 1 1091603D00-013
314 216E1682 PIN_LOCATE 1 1 1091603D00-014
315 211G3966 BLOCK 1 1 1091603D00-015
316 211G4636 BLOCK 1 1 1091603D00-016
317 211F9020 BRACKET 2 2 1091603D00-017
318 211DA028 PLATE 1 1 1091603D00-018
319 4M150284 MOTOR_AC-SERVO 1 1 1091603D00-019
320 221AA018 ROHS_HEX-SCT 2 2 M4L12 1091603D00-020
321 223C0212 COUPLING 1 1 1091603D00-021
322 222F0094 BEARING_UNIT 1 1 1091603D00-022
326 221K0053 RING 1 1 RING C 11 1091603D00-026
327 222D0411 BEARING_RADIAL 1 1 1091603D00-027
328 226A0107 SEAL 2 2 1091603D00-028
329 09163809 ASSY_SENSOR 1 1 1091603D00-029
330 216E1513 PIN_LOCATE 3 3 1091603D00-030
331 221AA104 PIN_LOCATE 2 2 M4L16 SW+FW 1091603D00-031
332 221AA095 ROHS_HEX-SCT 6 6 M3L10 SW+FW 1091603D00-032
333 221AA007 ROHS_HEX-SCT 4 4 M3L10 1091603D00-033
334 221AA002 BOLT_HEX-SCT 2 2 M2.5L8 1091603D00-034
335 221HA002 WASHER 6 6 SW2.5 1091603D00-035
336 221HA202 WASHER 2 2 FWS2.5 1091603D00-036
337 221AA145 ROHS_HEX-SCT 4 4 M2.5L6 1091603D00-037
338 221HA102 WASHER 4 4 FW2.5 1091603D00-038
339 221CA001 SET_SCREW 2 2 SET M3L4 1091603D00-039
340 221CA046 ROHS_SET_SCREW 1 1 SET M3L3 1091603D00-040
341 221AA115 ROHS_HEX-SCT 4 4 M2L8 1091603D00-041
358 221AA014 ROHS_HEX-SCT 2 2 M3L35 1091603D00-058
359 221HA003 WASHER 2 2 SW3 1091603D00-059
360 221HA103 WASHER 2 2 FW3 1091603D00-060
376 09163D06 ASSY_THEAD_No1 1 1 left 1091603D00-076
376 09163D07 ASSY_THEAD_No2 1 1 center 1091603D01-076
376 09163D08 ASSY_THEAD_No3 1 1 right 1091603D02-076
381 216C0773 ROD 1 1 2091603D09-001
382 217A0139 CAP 1 1 2091603D09-002
383 216E1512 PIN_LOCATE 1 1 2091603D09-003
384 216A1200 COLLAR 1 1 2091603D09-004
385 216A1199 COLLAR 1 1 2091603D09-005
386 222M1352 SPRING_COMP 1 1 2091603D09-006
387 215B0120 BUSH_LINEAR 1 1 2091603D09-007
Fig. J1
1104-004
Fig. J1-4
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-9
Fig. J1
HEAD 2
