Fig. K1-6 エレベータ (D) ベース Elevator (D) Base 1 104-004 525 520 515 523 508 507 522 51 1 521 517 526 509 524 519 514 562 563 563 523 503 518 512 502 523 518 512 See Fig. K1-8 Key No.714 See Fig. K1-8 Key No. 715 See Fig. K1-…
MEMO

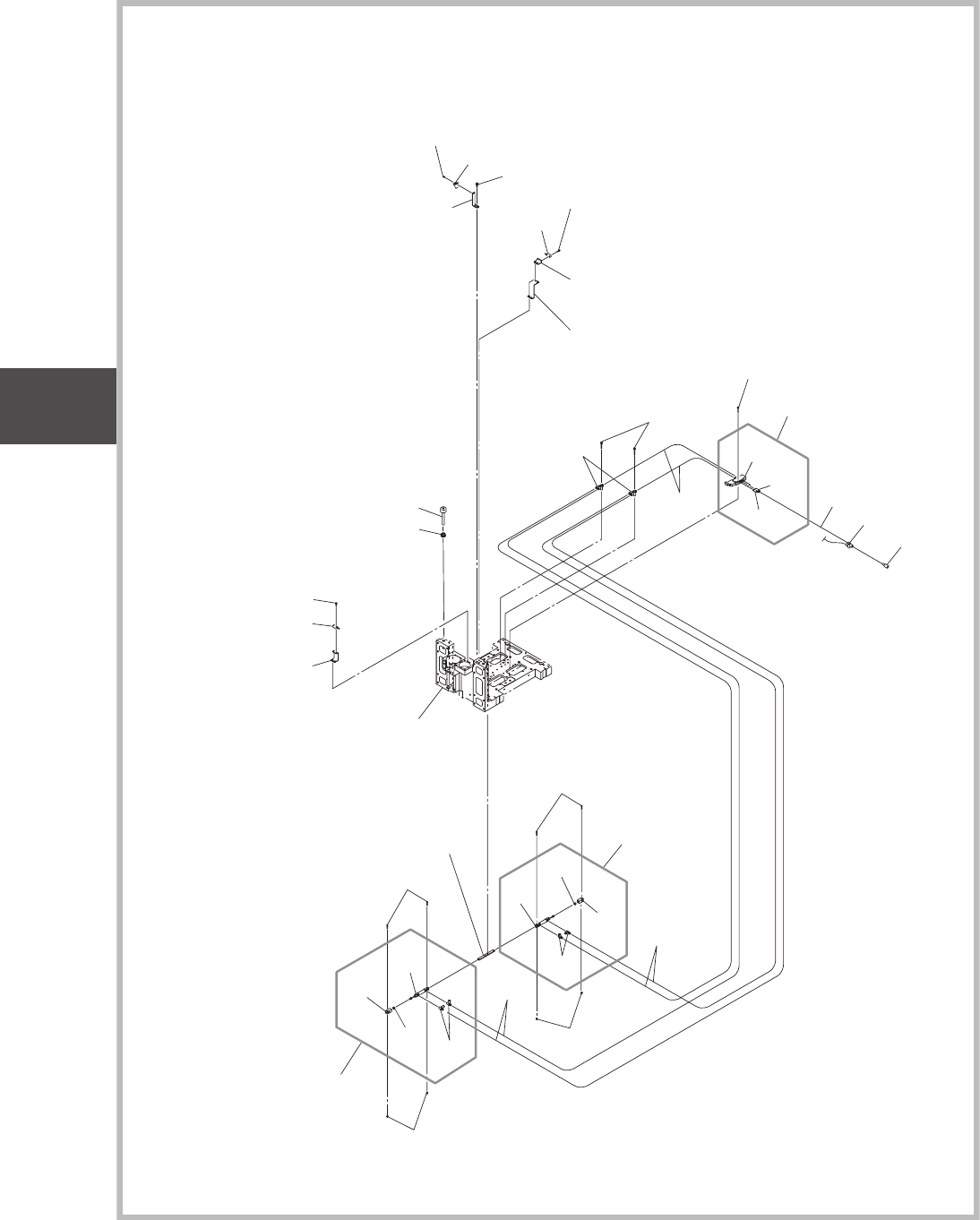

Fig. K1-6
エレベータ
(D)
ベース
Elevator (D) Base
1104-004
525
520
515
523
508
507
522
511
521
517
526
509
524
519
514
562
563
563
523
503
518
512
502
523
518
512
See Fig. K1-8
Key No.714
See Fig. K1-8
Key No. 715
See Fig. K1-8
Key No.716
See Fig. K1-8
Key No.705(D)
510
533
534
544
531
541
510
543
516
532
516
542
See Fig. K1-8
Key No.707
B15521
523
551
552
564
563
561
553
518
513
565
0921001E
0921001C
0921001D
B15522
B15523
B15524
B15525
Y15537
B0202
B15523
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
502 09214606 ASSY_EE6_SEN 1 1 1 109210003W-002
503 09214604 ASSY_EE4_SEN 1 1 1 109210003W-003
507 211F8648 BRACKET 1 1 1 109210003W-007
508 23G10056 SENSOR_PHOTO 1 1 1 109210003W-008
509 221E0305 BOLT 2 2 2 109210003W-009
510 216D0465 PIN_HINGE 4 4 4 109210003W-010
511 221AA005 ROHS_HEX-SCT 2 2 2 M3L63 109210003W-011
512 221AA009 ROHS_HEX-SCT 4 4 4 M3L14 109210003W-012
513 221AA012 BOLT_HEX-SCT 2 2 2 M3L25 109210003W-013
514 221AA023 ROHS_HEX-SCT 2 2 2 M4L30 109210003W-014
515 221AA031 ROHS_HEX-SCT 2 2 2 M5L16 109210003W-015
516 221FA005 NUT_HEX 8 8 8 M3 109210003W-016
517 221FA016 ROHS_NUT_HEX 2 2 2 M10 109210003W-017
518 221HA103 WASHER 6 6 6 FW3 109210003W-018
519 221HA104 WASHER 2 2 2 FW4 109210003W-019
520 221HA105 WASHER 2 2 2 FW5 109210003W-020
521 221HA108 WASHER 2 2 2 FW10 109210003W-021
522 221HA203 WASHER 2 2 2 FWS3 109210003W-022
523 221HA003 WASHER 8 8 8 SW3 109210003W-023
524 221HA004 WASHER 2 2 2 SW4 109210003W-024
525 221HA005 WASHER 2 2 2 SW5 109210003W-025
526 221HA008 WASHER 2 2 2 SW10 109210003W-026
531 09214608 ASSY_EE8_CYLD 1 1 1 309210001C-001
532 0921A057 AIR_LINE_EQPT 2 2 2 309210001C-002
533 214B0010 LINK 1 1 1 309210001C-003
534 221FA008 NUT_HEX 1 1 1 M4 309210001C-004
541 09214609 ASSY_EE9_CYLD 1 1 1 309210001D-001
542 0921A057 AIR_LINE_EQPT 2 2 2 309210001D-002
543 214B0010 LINK 1 1 1 309210001D-003
544 221FA008 NUT_HEX 1 1 1 M4 309210001D-004
551 0921460Q ASSY_EE12_VALVE 1 1 1 309210001E-001
552 225B0374 AIR_LINE_EQPT 2 2 2 309210001E-002
553 225F0603 PIPE FITTINGS 1 1 1 309210001E-003
561 225F0504 PIPE_FITTINGS 1 1 1 309210003E-001
562 225B0367 AIR_LINE_EQPT 2 2 2 309210003E-002
563 0921E20F TUBE 1 1 1 309210003E-003
564 0921E20G TUBE 1 1 1 309210003E-004
565 225F0495 PIPE FITTING 1 1 1 309210003E-005
Fig. K1
1104-004
Fig. K1-6
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
