Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 215 225B0393 PIPE_FITTINGS 1 1 109190830K-015 216 09198209 ASSY_V AL VE 1 1 109190830K-016 217 0919I00E CAST_BASE 1 1 109190830K-017 221 23G00207 SENSOR_PELEC 1 1 10919083…

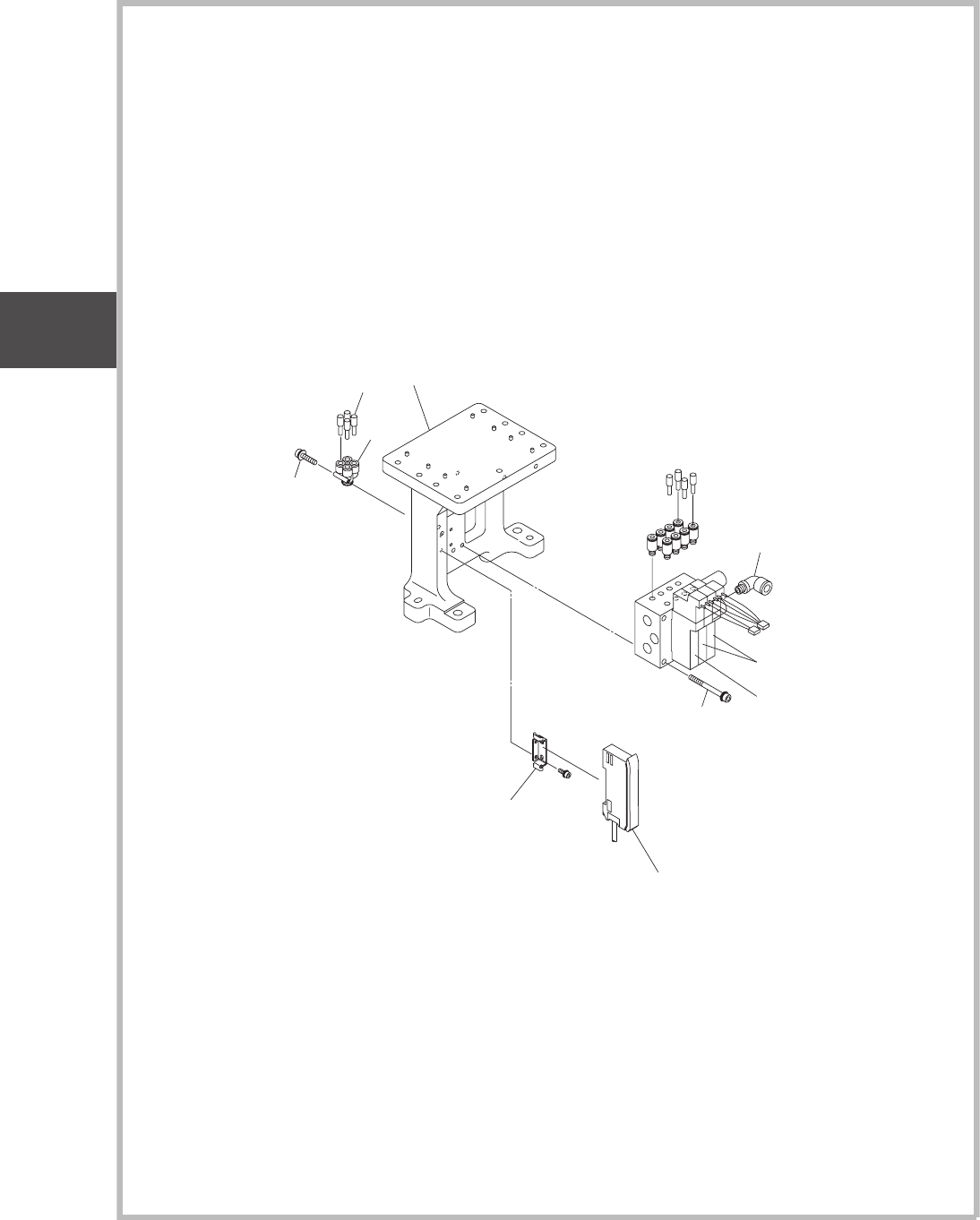

Fig. J2-3
ベース部
Base Section
1104-003
217
221
216
215
223
248
253
256
255
225
226
254
225
226
Y0935
Y0936
Y0934
Fig. J2
多機能ノズルストッカ
MULTI-FUNCTIONAL NOZZLE STOCKER
UNIT-9
Fig. J2
STOCKER 3
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
215 225B0393 PIPE_FITTINGS 1 1 109190830K-015
216 09198209 ASSY_VALVE 1 1 109190830K-016
217 0919I00E CAST_BASE 1 1 109190830K-017
221 23G00207 SENSOR_PELEC 1 1 109190830K-021
223 09198101 ASSY_VALVE 1 1 109190830K-023
225 221HA004 WASHER 3 3 SW4 109190830K-025
226 221HA104 WASHER 3 3 FW4 109190830K-026
248 0919820G ASSY_FIBER SEN 1 1 109190830K-048
253 225B0502 AIR_LINE_EQPT 1 1 109190830K-053
254 221AA025 ROHS_HEX-SCT 2 2 M4L40 109190830K-054
255 221AA023 ROHS_HEX-SCT 1 1 M4L30 109190830K-055
256 225F0713 PIPE_FITTINGS 4 4 109190830K-056
Fig. J2
1104-004
Fig. J2-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-9
Fig. J2
STOCKER 3

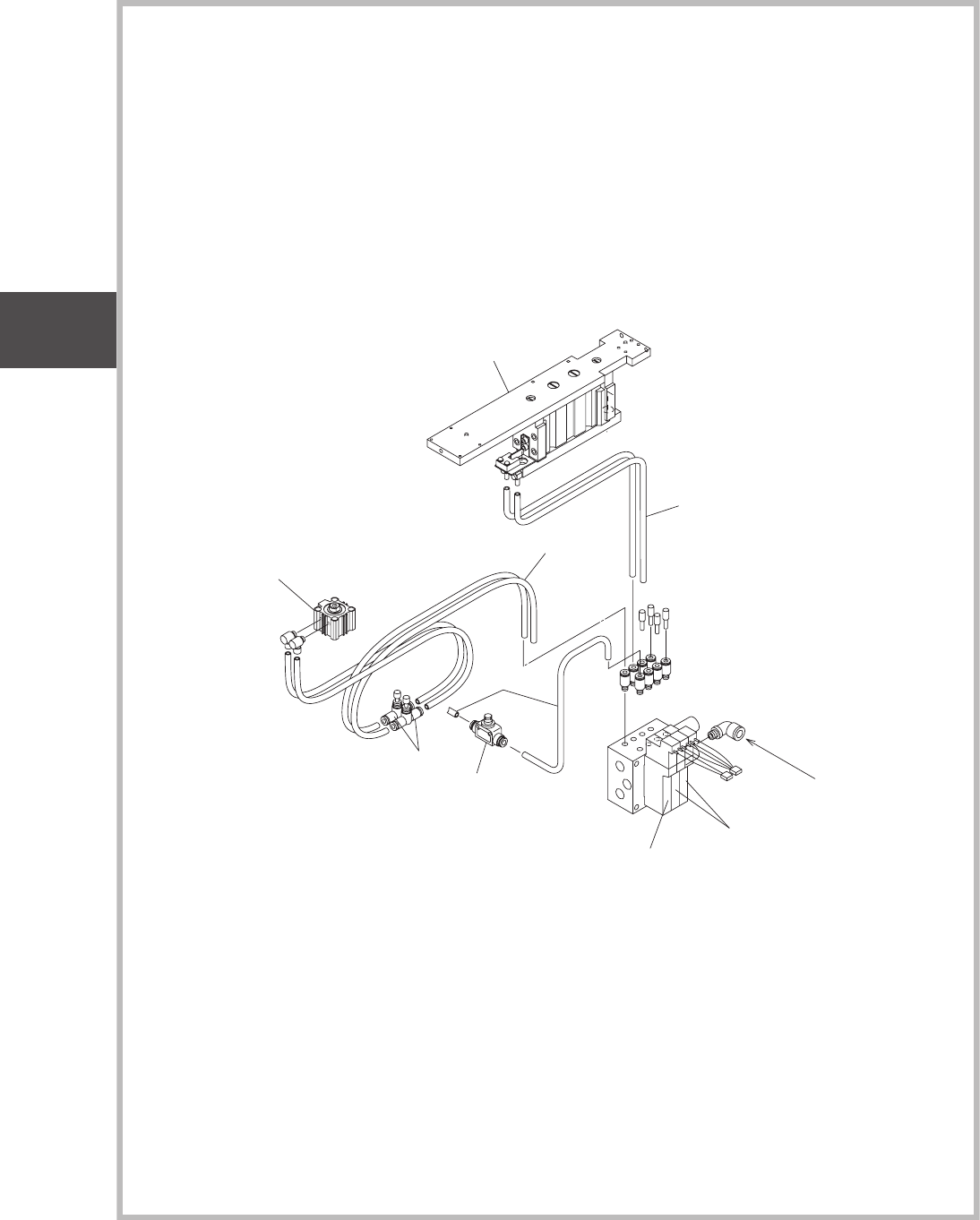

Fig. J2-4
エア配管
Air Piping
1104-003
From Main Body
322
331
331
See Fig. J2-2
Key No.151
See Fig. J2-2
Key No.119
See Fig. J2-3
Key No.223
See Fig. J2-3
Key No.216
Y0935
Y0936
Y0934
327
332
Fig. J2
多機能ノズルストッカ
MULTI-FUNCTIONAL NOZZLE STOCKER
UNIT-9
Fig. J2
STOCKER 3
