Attention！Please read the user manual carefully before operating this machine.
1. Brief Introduction
IN6 is a newly designed, environmentally friendly reflow oven with stable performance. It can
achieve full hot-air convection, excellent soldering performance. It has 6 temperature zone,
light and compact. Intelligent temperature control with high sensitivity temperature sensor,
temperature can be stable within ±0.2°C. It adopts Japan NSK hot air motor bearing and Swiss
imported heating wire, which is durable and stable. CE approved, provide authoritative quality
assurance.
2. Specification
Model
IN6
Heating Zone Quantity
Upper 3/ Down 3
Heating Type
Nichrome wire and aluminum alloy heating
Cooling Zone Quantity
1
Conveyor Speed
5~30cm/min
（
2~12inch/min
）
Standard Height Max(mm)
30mm
Temperature Range
Room temperature ~ 300℃
Heat-up Time
Approx. 20-30min
Soldering Width
260mm(26.8inch)
External Dimension
1020mm*507mm*350mm
Max Rated Power
~2000W
Working Power
~700W
Electricity Supply
110V/220V Single Phase
Operating Direction
Left → Right
Net Weight
49kg
2
3. Main Parts
3.1 Reflow Oven Main Body
3.2 Operating Panel
3

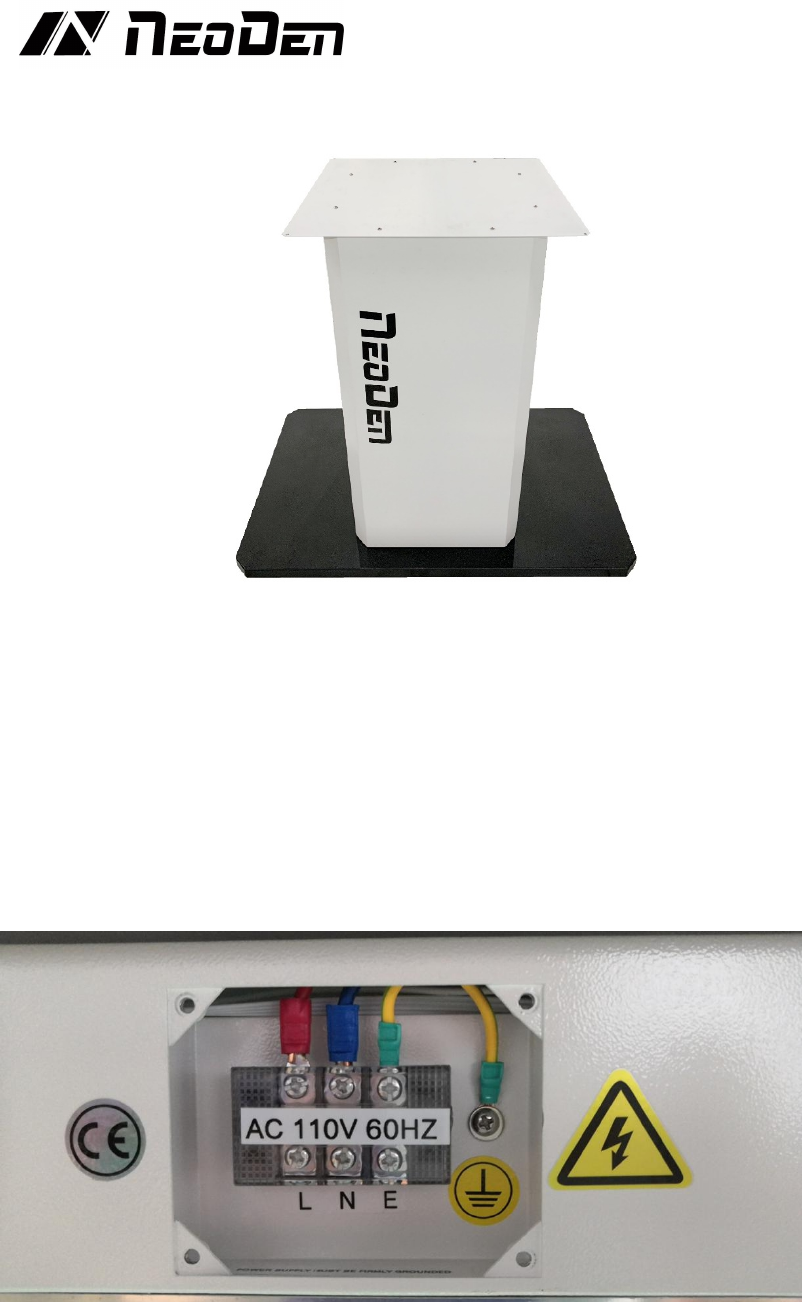

3.3 Pedestal
4. Installation Instruction
4.1 Power Supply Connection
IN6 is used in 110V/220V single-phase connection mode and is connected according to the
user environment. Wires connection method is shown as picture. L stands for the live wire, N
stands for the zero wire, and E stands for the ground wire, connect to the 220V (110V) power
supply. According to the wiring requirements, the L should be connected to one live wire, and
the N should be connected to one zero wire; the E should be connected to one ground wire
properly
4.2 Installation Attentions
♦Power supply requirement:110V/220V
♦For desktop reflow oven, should be working on workbench, don’t suggest to use wooden
material
♦The machine should be set in standard SMT workshop, stay away from flammable and
explosive if couldn’t meet previous requirements.
♦Exposed wire harness should be well protected, prohibit to expose at the passage or flue in
