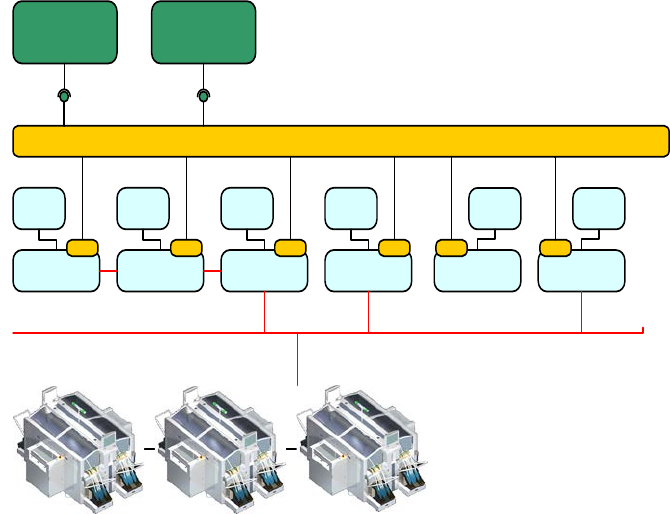

Version Description
SIPLACE OIB 4.3 05/2016 Edition
5
OIB F
RAMEWORK
with Factory Configuration Manager
OIB Integration Platform
3rd Party
Application
Customer
Application
Traceability
Monitoring
SIPLACE LAN
SIPLACE Pro
GUI
Optimizer
GUI
Line Control
GUI
Setup Center
GUI
GUI
GUI
1 Brief Description
When driving towards manufacturing excellence, it becomes quickly obvious that this requires connecting
the shop floor with the top floor, and usually this means: Integration of different software solutions.
However, integrating different software solutions from different vendors and maintaining them over time
has always been a challenge; technically as well as financially.
The SIPLACE team has the best knowledge on SIPLACE machines – this knowledge is built into SIPLACE
business logic, whereas 3
rd
parties have excellent knowledge on factory solutions level; and manufacturers
need higher level SW solutions to run their factories – independent from different vendor’s machines.
SIPLACE OIB is an integration platform that addresses these challenges:
Make SIPLACE business logic available for integration in SIPLACE Partner and 3rd party solutions
Safeguard partner / 3
rd
party and customer investment by providing stable, version-managed
interfaces
Decouple upgrade of SIPLACE SW from upgrade of SIPLACE Partner 3
rd
party application
SIPLACE OIB is the operation information broker for the SIPLACE line level software and any MES level
applications for exchanging information and data.
SIPLACE OIB contains a couple of APIs exposing dedicated functionality in form of services based on the
functionality of the SIPLACE Line Level Software.
Version Description
SIPLACE OIB 4.3 05/2016 Edition
6
2 Scope of Delivery
2.1 Media Package
The Media Package SIPLACE OIB (V4.3) (Item No 00116618-05) consists of the following:
• 1 CD-ROM Base Package SIPLACE OIB (V4.3), which contains
o SIPLACE OIB Core 4.3
o SIPLACE OIB SIPLACE Pro Adapter 4.3
o SIPLACE OIB SIPLACE Setup Center Adapter 4.3
o SIPLACE OIB SIPLACE Monitoring Adapter 4.3
o SIPLACE OIB Client API
o SIPLACE OIB Factory Services 4.3
o SIPLACE OIB Display Service Viewer 4.3
o Installation Manual
o Version Description
o SIPLACE OIB SDK 4.3
o Installation Manual SDK
o B2MML Interface Specification
• 1 SIPLACE OIB SDK License
• 1 DVD Support Media Version 2.3
