MEMO
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FA-1
FA-1 list-1
1 6301469157 FRAME 1 806FA-110-001 210B4024
4 6301439242 BRACKET 1 806FA-110-004 211FA565
11 6301469799 COVER 1 806FA-110-011 211AA879
12 6301448275 COVER 1 806FA-110-012 211AA571
14 6300289749 FOOT PAD 4 806FA-110-014 218D0002
15 6301439235 BRACKET 1 806FA-110-015 211FA564
21 6301425771 CASTER 4 806FA-110-101 226E0063
22 6300008869 BOLT,HEX 4 806FA-110-102 221B0031
23 4111189708 NUT HEX 16 4 806FA-110-103 221F0094
26 6301268897 PIPE FITTINGS 1 806FA-110-106 225F0578
27 6300624847 PIPE FITTINGS 1 806FA-110-107 225F0305
30 6301398501 PIPE FITTINGS 1 806FA-110-110 225F0643
31 6300037814 PIPE FITTINGS 1 806FA-110-111 225F0066
32 6301149844 PIPE FITTINGS 2 806FA-110-112 225F0492
51 6300007671 BOLT,HEX-SCT 1 M4X25 221A0022
52 6300007855 BOLT,HEX-SCT 16 M6X8 221A0040
53 6300007879 BOLT,HEX-SCT 3 M6X12 221A0042
54 6300007893 BOLT,HEX-SCT 1 M6X20 221A0044
56 4110511708 SCR TRS 4X6 2 M4X6 TRS 221E0532
57 4110512804 SCR TRS 4X8 4 M4X8 TRS 221E0533
58 4111410703 NUT HEX 6 1 M6 221F0087
61 4111413001 WASHER SPR 6 20 SW6 221H0289
66 4111416002 WASHER F 6X11.5X1.6 16 FWS6 221H0344
67 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
68 6300010237 WASHER 1 BW6 221H0006
MEMO
MODEL FP-G300R
0801-002

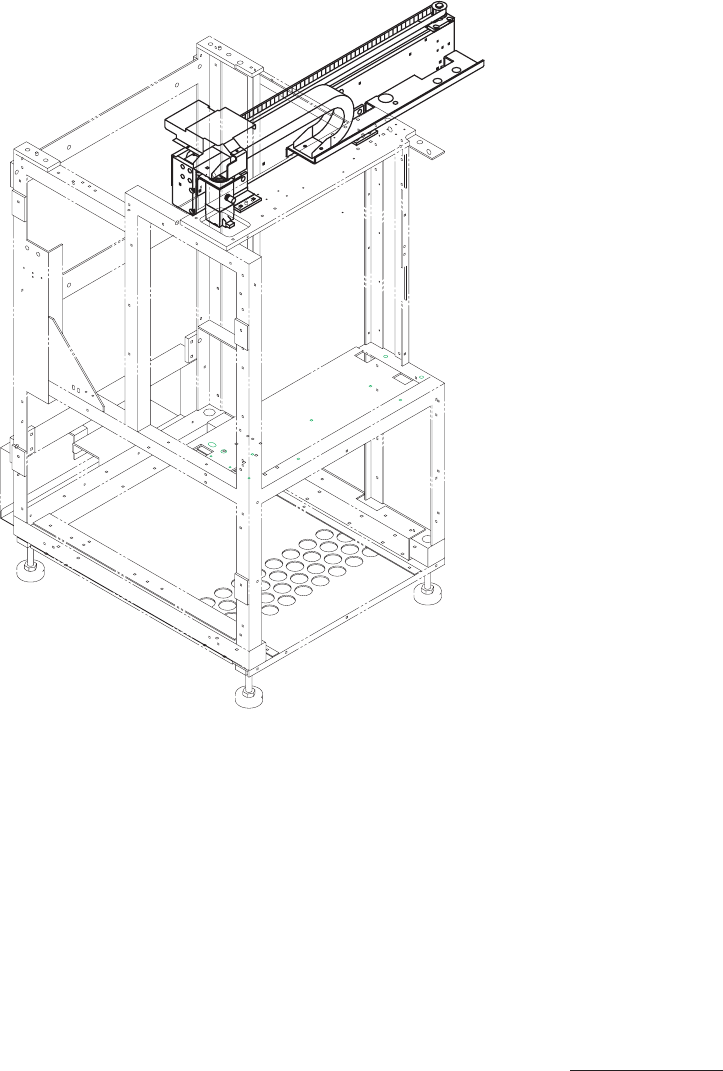

Fig. FB P
＆
P
X
軸
P
＆
P X
AXIS
FB illust-1
