MODEL FP-G 300R 0801-002 電装部 ELECTRICAL SECTION Fig. FJ-1 電装ボックス Electrical Box 59 56 54 55 53 52 58 51 60 61 72 72 72 72 72 72 72 68 71 . 76 . 77 71 . 76 . 77 71 . 76 . 77 71 . 76 . 77 72 FJ-1 illust-1
MODEL FP-G300R
0801-002
Fig. FJ
電装部
ELECTRICAL SECTION
FJ illust-1
MODEL FP-G300R
0801-002
電装部
ELECTRICAL
SECTION

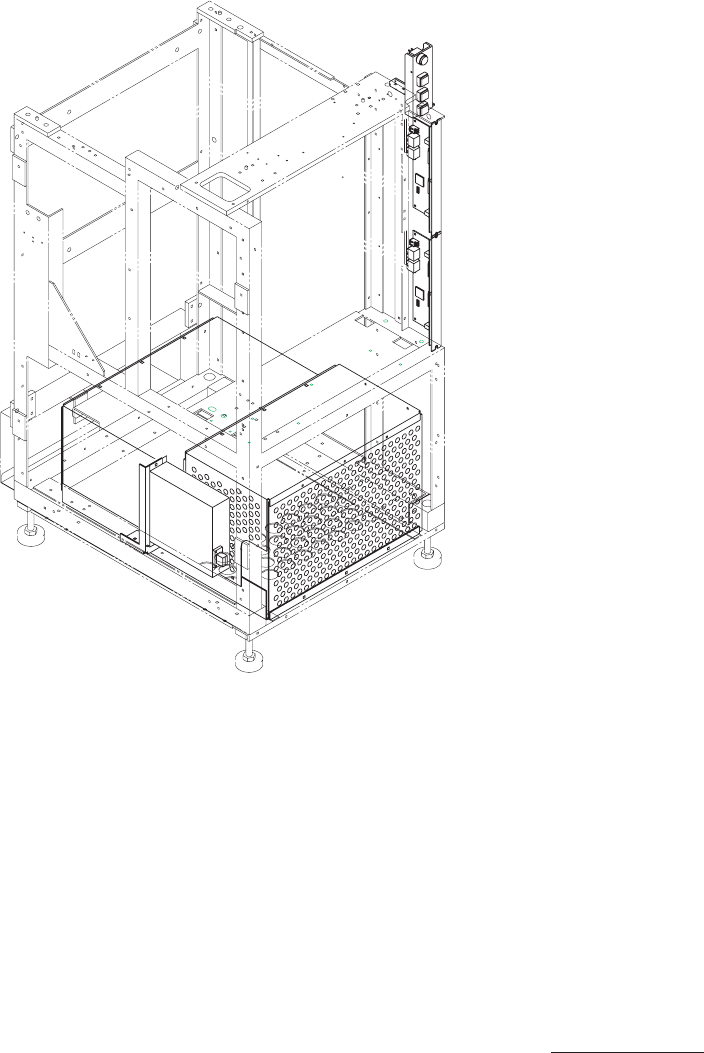

Fig. FJ-1
電装ボックス
Electrical Box
59
56
54
55
53
52
58
51
60
61
72
72
72
72
72
72
72
68
71
.
76
.
77
71
.
76
.
77
71
.
76
.
77
71
.
76
.
77
72
FJ-1 illust-1
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FJ-1
FJ-1 list-1
51 6301417356 BASE 1 806FJ-110-051 210A2468
52 6301417363 BRACKET 1 806FJ-110-052 211FA297
53 6301416403 BRACKET 1 806FJ-110-053 211FA286
54 6301416410 BRACKET 1 806FJ-110-054 211FA287
55 6301416427 PLATE 1 806FJ-110-055 211DB188
56 6301416434 PLATE 1 806FJ-110-056 211DB189
58 6301417288 COVER 1 806FJ-110-058 211AA290
59 6301417295 COVER 1 806FJ-110-059 211AA291
60 6301417349 COVER 1 806FJ-110-060 211AA292
61 6301417974 COVER 1 806FJ-110-061 211AA294
68 6300775617 ACCESSORY,P.C.B 8 806FJ-110-168 23L10057
71 6300007619 BOLT,HEX-SCT 20 M4X8 221A0016
72 4110511708 SCR TRS 4X6 29 M4X6 TRS 221E0532
76 4111412905 WASHER SPR 4 20 SW4 221H0284
77 4111414008 WASHER V 4X9X0.8 20 FW4 221H0315
