MODEL FP-G 300R 1004-004 Key No. P AR T No. P AR T NAME Q’ ty REMARKS New Code NOTE FC-1 FC-1 list-1 1 6301469171 BASE 1 806FC-1 10-001 210A2580 2 6301469195 BASE 1 806FC-1 10-002 210A2581 3 6301407418 COLLAR 1 806FC-1 1…
MODEL FP-G300R
0801-002
エレベータ部
ELEV
ATOR SECTION

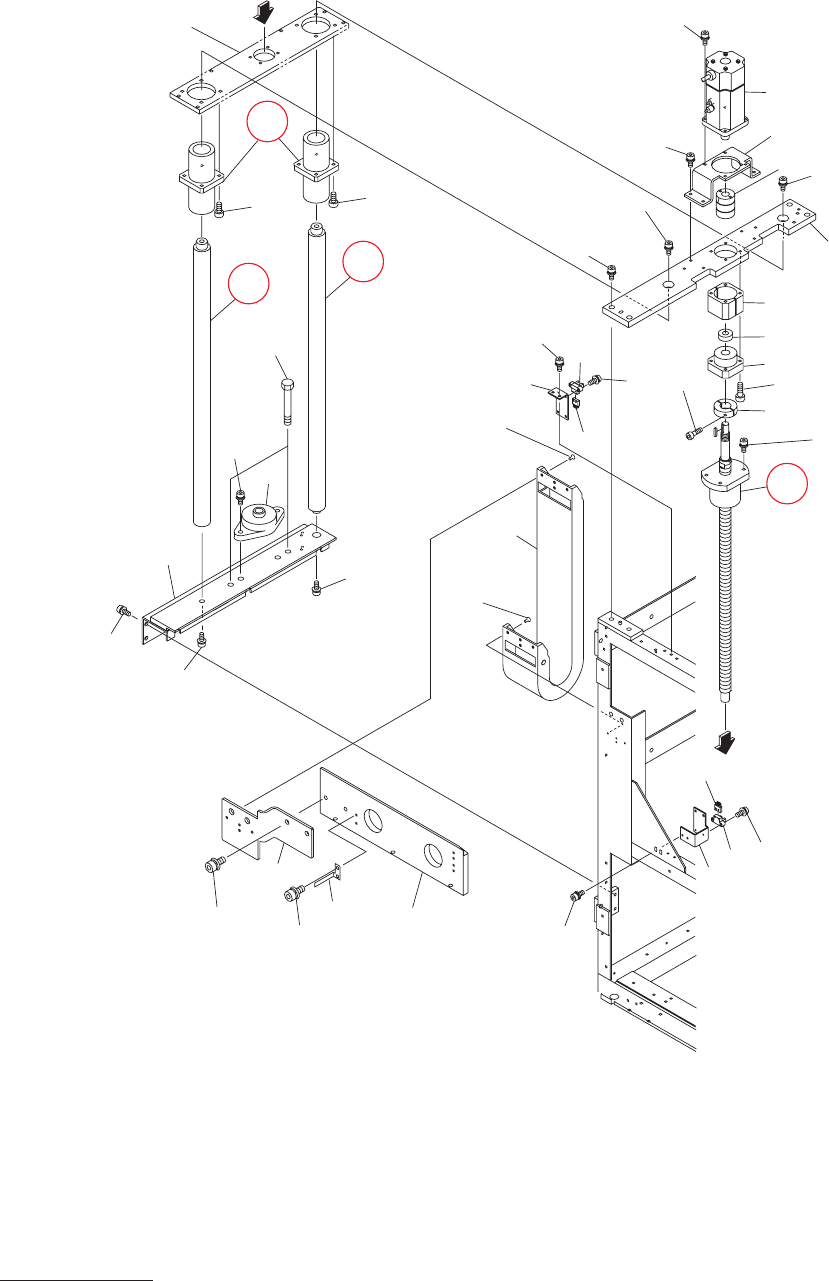

Fig. FC-1
エレベータ駆動部
Elevator Driving Section
29
27
28
35
26
2
32
8
30
31
11
31
30
23
10
24
25
3
1
34
9
22
See Fig. FD-1
Key No.2
7
5
51
.
72
.
82
65
.
71
.
81
62
.
75
.
85
61
.
75
.
85
56
.
73
.
83
56
.
73
.
83
61
.
75
.
85
57
.
73
.
83
53
52
65
.
71
.
81
51
.
72
.
82
66
.
77
.
87
54
.
73
.
83
60
.
74
.
84
59
.
74
.
84
58
.
74
.
84
63
.
76
.
86
59
59
A
A
See Fig. FD-1
Key No.4
67
67
注) Key No.23,27,28,29(○印)は重要保守部品となっております。交換方法について
は高度な技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 23,27,28,29 (with a circle) is an important maintenance component.
Because high-grade technique is required for the r
eplacement of this component,
consult our service personnel.
FC-1 illust-1
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FC-1
FC-1 list-1
1 6301469171 BASE 1 806FC-110-001 210A2580
2 6301469195 BASE 1 806FC-110-002 210A2581
3 6301407418 COLLAR 1 806FC-110-003 216A1316
5 6301448619 BRACKET 1 806FC-110-005 211FA708
7 6301385273 PLATE 1 806FC-110-007 211DA752
8 6301450063 BRACKET 1 806FC-110-008 211FA722
9 6301407371 BRACKET 1 806FC-110-009 211FA199
10 6301407340 COLLAR 1 806FC-110-010 216A1315
11 6301388540 BRACKET 1 806FC-110-011 211F9944
22 6301280622 MOTOR,AC-SERVO 1 M2 806FC-110-102 4M150212
23 6301406695 BALL SCREW 1 806FC-110-103 223B0384
24 6301236698 BEARING,UNIT 1 806FC-110-104 222F0089
25 6301407494 MECH PARTS(SPACER) 1 806FC-110-105 226J2207
26 6301407500 BEARING,UNIT 1 806FC-110-106 222F0100
27 6301450070 SHAFT(F11P20M8T9Q15N6) 1 806FC-110-107 213A1318
28 6301450087 SHAFT 1 806FC-110-108 213A1319
29 6301395326 BUSH,BALL 2 806FC-110-109 222J0221
30 6300000252 SENSOR,PHOTO 2 B0201,B0202
806FC-110-110 23G10002
31 6300000269 SENSOR,PHOTO(CONNECTOR) 2 806FC-110-111 23G10003
32 6301448190 MECH PARTS(CABLEVEYOR) 1 806FC-110-112 226J2250
34 6301558455 COUPLING 1 806FC-110-114 223C0247
35 6300008821 BOLT,HEX 2 806FC-110-115 221B0027
51 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
52 6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
53 6300007718 BOLT,HEX-SCT 4 M4X45 221A0026
54 6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
56 6300007763 BOLT,HEX-SCT 8 M5X16 221A0031
57 6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
58 6300858310 BOLT,HEX-SCT 4 M6X14 221A0240
59 6300007893 BOLT,HEX-SCT 9 M6X20 221A0044
60 6300007909 BOLT,HEX-SCT 1 M6X25 221A0045
61 6300008012 BOLT,HEX-SCT 2 M8X20 221A0056
62 6300008029 BOLT,HEX-SCT 4 M8X25 221A0057
63 6300008128 BOLT,HEX-SCT 2 M10X25 221A0067
65 4110407803 SCR PAN 3X12 4 M3X12 PAN 221E0489
66 6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
67 4110022600 SCR FLT 3X6 8 M3X6 FLT 221D0224
71 4110864408 WASHER SPR 3 4 SW3 F 221H0280
72 4111412905 WASHER SPR 4 4 SW4 221H0284
73 4111416705 WASHER SPR 5 14 SW5 221H0287
74 4111413001 WASHER SPR 6 6 SW6 221H0289
75 4111413100 WASHER SPR 8 6 SW8 221H0291
76 4111413209 WASHER SPR 10 2 SW10 221H0293
77 4111412806 WASHER SPR 3 2 SW3 221H0281
81 4111191909 WASHER V 3X7X0.5 4 FW3 F 221H0311
82 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
83 4111414107 WASHER V 5X10X1 14 FW5 221H0318
84 6300010237 WASHER 6 BW6 221H0006
85 4111414503 WASHER V 8X17X1.6 6 FW8 221H0346
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FC-1
FC-1 list-2
86 4111414701 WASHER V 10X21X2 2 FW10 221H0348
87 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
